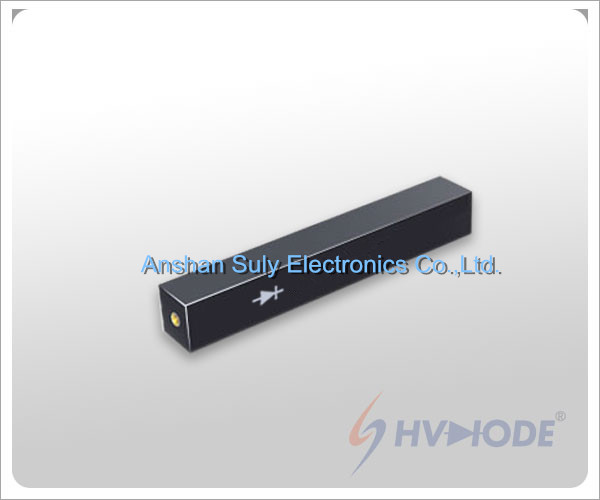

Hvdiode High Frequency High Voltage Rectifier Silicon Block Factory
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Liaoning in China |
| Packaging Details: | Carton |
Quick Details
- Max. Reverse Current: 2microampere
- Max. Forward Current: 1.5A
- Max. Reverse Voltage: 10~200KV
- Max. Forward Voltage: 30~500V
- Type: Rectifier Diode
- Model Number: 2CLG10~200 Series
- Brand Name: HVDIODE
Specifications
Hvdiode High Frequency High Voltage Rectifier Silicon Blocks Factory
Product Data:
Repetitive peak reverse voltage:10~200KV
Avg. forward rectified current: 1.5A
Peak forward surge current: 30A
Peak forward voltage Max.: 30~500V
Max. reverse current: 2μA
Reverse recovery time:300ns
Product Features:
1. Adopting international latest technology for the production of die chips assembly
2. Low leakage current, low power, high reliability.
3. Excellent impact resistance for instantaneous high current.
4. Reverse avalanche breakdown.
5. Working temperature-40oC~+175oC.
6. Various size or customized
7. High voltage rectifier, isolation and protective effect in circuits.
Anshan Suly Electronics Co., Ltd. can manufacturer all kinds of high voltage silicon stacks, industrial special silicon stacks, high voltage silicon rectifier diodes, high voltage silicon stacks of microwave oven, high voltage silicon rectifier bridges, high voltage rectifier components, high voltage modules and so on.
Hvdiode products are widely used in medical equipments, electrostatic precipitation, spraying, high frequency thermal bonding, oil dehydrating, high voltage detection, plasma injection, ion acceleration, electron beam welding, electron microscopy, air purification, vacuum coating, ultrasonic cleaning, high energy ignition, X-ray machine industrial microwave, radar modulation, laser equipments, all kinds of electronic equipments' power supplies.
Hvdiode products sell well throughout domestic and overseas.
Please feel free to contact Connie if you have any need of hvdiode rectifier products. We can also supply high quality customized rectifier products.
