Anshan Suly Electronics Co., Ltd.
China Manufacturer with main products: High Voltage Diodes, High Voltage Silicon Stack, High Voltage Rectifier Bridge, High Voltage Rectifier Components, High Voltage Rectifier... |
Hv Rectifier Diode
| Payment Terms: | T/T, Western Union |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Liaoning in China |
| Packaging Details: | carton |
Quick Details
- Max. Reverse Current: 2 microampere
- Max. Forward Current: 50mA
- Max. Reverse Voltage: 10KV
- Max. Forward Voltage: 10V
- Type: Rectifier Diode
- Model Number: 2CLG Series
- Brand Name: HVDIODE
Specifications

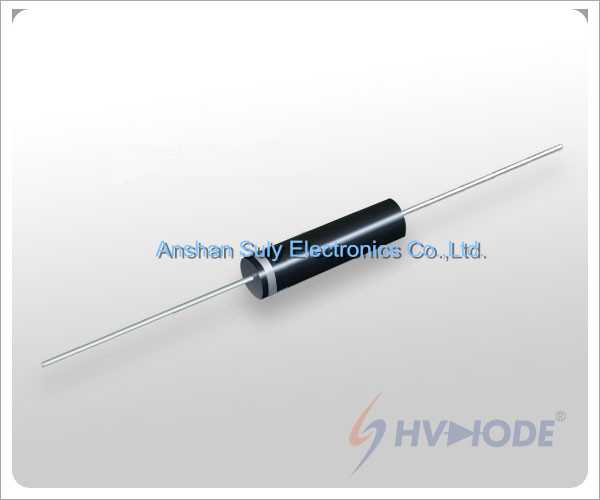

High Frequency High Voltage Diode
Product Data:
Repetitive peak reverse voltage:10 KV
Avg. forward rectified current: 50mA
Peak forward surge current: 5A
Peak forward voltage Max.: 18V
Max. reverse current: 2μA
Reverse recovery time:100ns
Product Features:
1. Low leakage current, impact resistance, avalanche breakdown protection.
2. High-speed transfer switch reaction, reverse recovery time for 35 to 150nS.
3. High heat resistance, PN junction temperature up to 150oC and junction temperature of special high heat chip up to 170oC.
4. Environmental-friendly technology and complying with international standards.
Applications:
Electrostatic precipitation, electrostatic spraying, electrostatic flocking, negative-ion generator, high voltage generator, medical X-ray testing, laser power supply, high voltage test, high frequency doubler rectifier circuit and other high voltage power supply rectifying circuits.
Please feel free to contact Connie if you have any need of hvdiode rectifier products. We can also supply high quality customized rectifier products.
