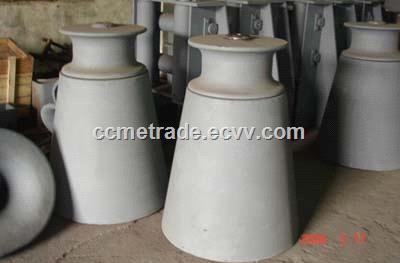

Marine Roller Fairlead

FOB Price:	30.00 - 200.00 USD/Pair
Supply Ability:	1,000 Piece/Pieces per Month
Shipping:	by sea shipping
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	standard type

Quick Details

Part: Marine Roller Fairlead
Model Number: CCME
Brand Name: CCME
size: customized
material: steel
fulling capacity: customized

Specifications

We can supply all kinds of roller fairlead according to different standards. We can also make these products according to buyer's drawings.

Marine fairlead is used for guiding ropes in ship mooring and will not breakdown.They can be welded either into the bulwark or on deck. Various sizes can be provided,it features durable, long lifetime.

Used extensively throughout the marine industry and in certain rigging applications, fairleads are found on the majority of commercial shipping vessels.

1.can be made by cast iron,cast steel or as requested.

2.short manufacturing term and prompt delivery.

3.Surface Treatment:Polished, galvanized or bitumen painted

Rated towing pull	Rope (mm)	Wre size (mm)	A (mm)	B	C	D	E	F	G	weight
20KN	-12	12	180	100	650	80	446	170	10	75kg
30KN	-16	16	230	130	800	100	546	210	10	130kg
50KN	-20	20	250	130	900	120	626	250	15	220kg
80KN	-24	24	280	160	1000	140	716	288	20	320kg
120KN	-32	32	300	160	1200	180	836	366	25	580kg
200KN	-40	40	320	180	1350	245	1030	500	35	1100kg
320KN	-48	40	400	250	1700	300	1236	610	45	2210kg
