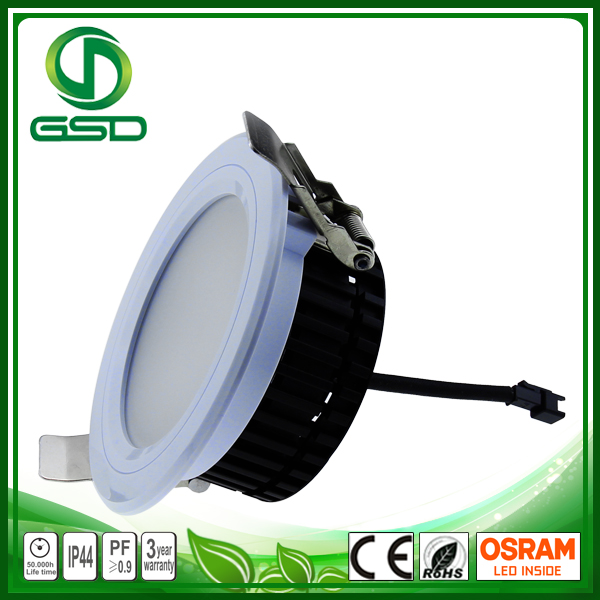

Uniformed lighting 30w led downlight with 90 CRI

FOB Price:	26.00 - 28.00 USD/Piece
Supply Ability:	20,000 Piece/Pieces per Month
Shipping:	UPS/DHL/FEDEX/TNT
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

LED Downlight

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Export Standard Packing

Quick Details

Item Type: Downlights
Light Source: LED
Brand Name: GS
Model Number: GS-DL06-30Wc
Certification: BV,CE,Energy Star,ETL,RoHS,SAA,UL
IP Rating: IP40
Lamp Body Material: Aluminum+PC
Working Lifetime(Hour): 50000
Color Temperature(CCT): 2700-6500k
CRI (Ra>): 85
Lamp Luminous Efficiency(lm/w): 85
Lamp Luminous Flux(lm): 2600
Lamp Power(W): 30
Input Voltage(V): AC95-265V
Warranty(Years): 3
LED Light Source: 5630 smd
Product Name: 30W Downlight
Size: D195*H85mm
Cut Diameter: D175mm

Specifications

Specifications:

*Product Name*	5W Downlight	12W Downlight	18W Downlight	24W Downlight	30W Downlight	50W Downlight
*Model*	GS-DL03-5Wc	GS-DL03-12Wc	GS-DL04-18Wc	GS-DL04-24Wc	GS-DL06-30Wc	GS-DL06-50Wc
*Power*	5W	*12W*	*18W*	*24W*	*30W*	*50W*
*Input Voltage*	AC95~265V
*LED Chip*	12pcs/5630	26pcs/5630	40pcs/5630	48pcs/5630	62pcs/5630	100pcs/5630
*Luminous Flux*	425±50LM	1020±50LM	1530±50LM	2040±100LM	2550±100LM	4250±100LM
*Fixture Material*	Aluminum Alloy + PC
*Size*	112H43mm*	112H65mm*	Φ145H85mm*	Φ145H85mm*	Φ195H85mm*	Φ195H85mm*
*Cut Diameter*	*95mm*		*Φ125mm*		*Φ175mm*
*Working Temperature*	-30°~50°
*CRI*	>80
*CCT*	3000K, 4000K, 6000K

Descriptions:
1. With glass lens on the shell surface, can protect the lamp beads well and better lighting

transmittance
2. This led downlights made of high quality Aluminum material, safe and long lifespan, good

heat dissipation
3. LED downlights are designed to replace traditional downlights and ceiling light (Replace

of Halogen/Incandescent/Fluorescent lights)

Feature:
1. Energy saving, environmental friendly, No UV or IR radiation
2. Anti-shock, anti-moisture, no glare, no strobe light, protecting your eyes.
3. Imported light source, high brightness.
4. Instant on, no warm up time required.
5. High intensity and stability, no maintenance cost.
6. Easy installation, can be installed in ceilings, walls and other places.

Benefits:
1. Exquisite appearance, pretty body,inside-put light source,no glare,soft and uniform light.
2. Long lifespan,energy-efficient,up to 60% of energy than traditional bulbs.
3. High brightness,luminous efficiency more than 90LM/W.
4. Very good Color Rendering Index ,so the objects more natural.
5. No UV, NO IR or RF interference
6. Green,no mercury and lead,conducive to recycle and reuse and without electromagnetic
interference.

Details:

Use Warnings & Cautions:

1. On the ceiling turn good hole location, the power input end links with the mains.
2. Links to the DC line and DC power line of lamps and lanterns.
3. Reverse hold-up, the spring on the lamps and lanterns into the hole of the ceiling.

1. The product can directly replace the traditional ceiling lamp.
2. Turn off the light.
3. Take down the ceiling lamp.
4. Fix the led ceiling lamp.
5. Turn on the light to check the ceiling lamp works well or not.

Maintenance Notes:
1. Must turn off the power before clean the lamp.
2. Pls use a relatively dry or a dry cloth to clean the lamp.
3. Don't use chemical or corrosive things to clean the lamp.

Applications:
1. Recess lighting, shelf lighting, ceiling/wall coves
2. Cabinet and under counter lighting, office work station
3. Residential lighting, such as living room, bed room, washroom, kitchen etc.
4. Commercial lighting, such as hotels, shops, stores etc.
5. Schools, colleges, universities, hospitals
6. Exhibition halls, art galleries, museums

Company information:

Quality assurance:All the products will go through 5 checks during production,raw material check,

Lights beadscheck,aluminum plate check,power supply check and the finished products 48

hours test.

Warranty:Three years warranty,the broken lights will be replaced and the new lights will be sent to

you together with your next order.

Competitive production capacity: monthly production more than 100,000 pcs bulbs or other lights.

Manufactuer's price:Factory direct sale,competitive price.
