Qingdao Ruijie Plastic Machinery Co., Ltd.
China Manufacturer with main products: Pipe Extrusion Line, Blowing Mould Making Machine, Plstic Accessory Machine, Plastic Sheet Profile Production Line, Latest Extrusion Lines,... |
Home
>Products Catalog > Plastic Pipe Production Line > PVC PE PP Corrugated Pipe Plastic Pipe Production Line

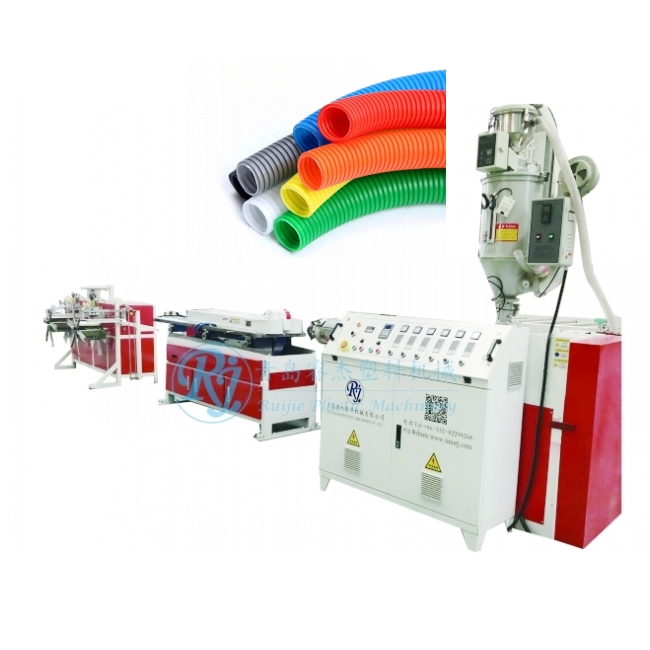

PVC PE PP Corrugated Pipe Plastic Pipe Production Line
| Supply Ability: | 400 Set(s) per Year |
|---|---|
| Shipping: | ocean shipping |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Packaging: EPE film covered, wooden Pallet(Pallet is not free.)or according to your requirement. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Brand Name: RUIJIE
- Application: corrugated pipe
- Condition: New
- Certification: CO,FORM E,CE
- Weight: 2 T
- Dimension(L*W*H): 8m*1.5m*2.8m
- Power(W): 30KW-70KW
- Voltage: 380V50hz or customzied
- Model Number: SJ
- Type: Pipe Production Line
- Processing Type: Plastic Thermoforming Machine
- Product Type: Plastic Pipe
- Condition: New
- Product name: PVC PE PP Corrugated Pipe Plastic Pipe Production Line
Specifications
PVC PE PP Corrugated Pipe Plastic Pipe Production Line
Description
PVC PE PP Corrugated Pipe Plastic Pipe Production Line equips with high quality machines in the whole line.with good equipments, the plastic corrugated pipe line can produce pipes stable and fast. Also all these machines share a ling service life which reduces buyer's cost.

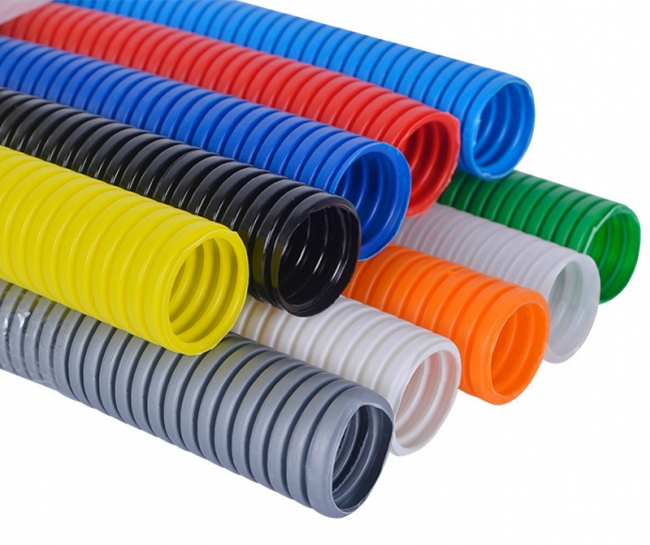

Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die.
Pipe Application
PVC PE PP Corrugated Flexible Pipe Hose Plastic Pipe Making Machinery can produce pipe with heating-proof, corrosion-proof, friction-proof and high strength. and the pipe will be used in electricity/pneumatic wire conduit, Auto wire conduit, protection conduit, machine tools, electric locomative, projections installation, lights, automatic tools and other fields.
Process Flow
Raw material→auto-feeder→ material dryness → single screw extruder → extrusion mould → corrugated forming machine → meter measure → double winder → finished product inspecting&packing
Technical PArameter
Model number |
SJ32 |
SJ45 |
SJ55 |
SJ63 |
Pipe diameter |
8-12mm |
16-32mm |
16-50mm |
16-63mm |
Max output |
15-25kg/h |
30-50kg/h |
40-60kg/h |
50-80kg/m |
Max Production rate |
9m/min |
12m/min |
13m/min |
14m/min |
Extruder model |
SJ35/30 |
SJ45/30 |
SJ55/30 |
SJ65/30 |
Installed power |
18kw |
30kw |
50kw |
60kw |
Contact: +0086-15506393026(Wechat and Whatsapp)
