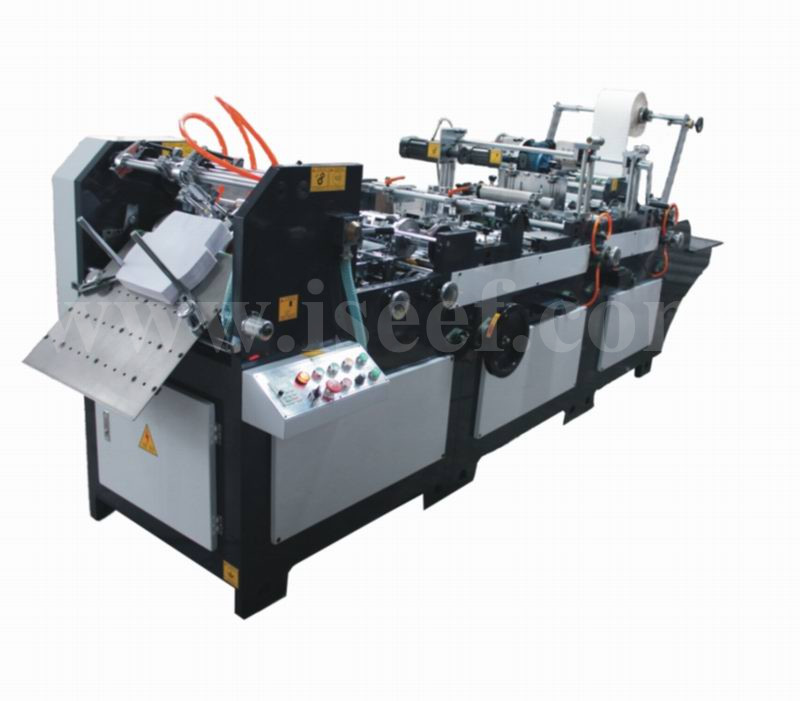

Auto Envelope maker with peel and seal on flap Model ZF-390B

Shipping:	30% advance payment be paid by TT, balance paymen shall be paid before shipment
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Standard export package

Quick Details

Type: Gluing Machine
Weight: 2000kgs
Dimension(L*W*H): 4100x1000x1400mm
Power: 5.2kw
Voltage: 380V/50HZ/3 PHASE (the voltage can change with surcharge)
Condition: New

Specifications

Features:

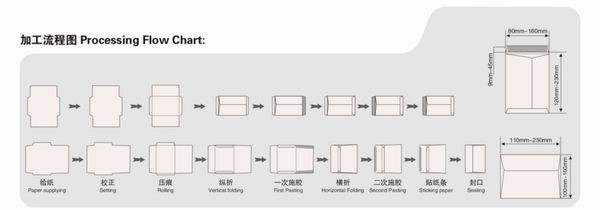

with paper-sticking suitable for Chinese and western envelopes : Chinese type code 1-7, western type code 1-7 international envelope, commercial envelope ,first day celebration envelope, etc.

It adopts air suction type bottom paper-extracting system to supply paper without a stop. With compulsive setting system and cross pressing line and vertical creasing parts can be in high speed running and guarantee the accuracy of finished products, rotary gluing system suitable for any shape of glue line.

Stepless speed regulator control silicone paper width, gas suction roller ensures the paper correctly posted on the tongue of envelope. Cross folding unit equip with air suction cylinder buckler folding mechanism to make sure machine working in high speed. Collection unit equip with electronic counter and grouping system, convenient for final packing. Drive system adopts synchronous belt transmission to reduce noise.

Technical parameter:

Max working velocity	11000pcs/h
Applicable paper ration	70-157 g/m²
Processing standard envelope specification	Chinese: Min: 110110mm /Max: 176230mm Western: Min: 8080mm/ Max: 176230mm
Silicone width	9-45mm
Motor power	2.2kw
Air pump motor	3.0kw
Machine weight	s
Machine size(LxWxH)
