Zhengzhou Kehua Industry Equipment Co., Ltd.
China Manufacturer with main products: Briquetting Machine, Rotary Dryer, Vertical Dryer, Mesh Belt Dryer, Chain Plate Dryer, Mixer, Crusher, Hydraulic Briquetting Machine |

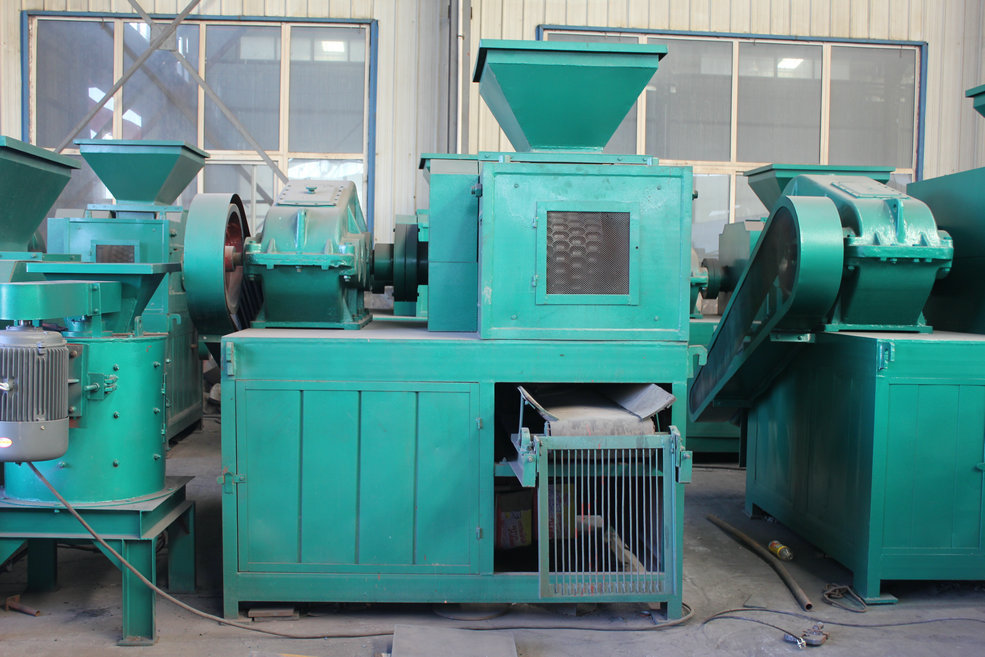

Charcoal powder briquette machine by Zhengke brand
| FOB Price: | 3,000.00 - 60,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Month |
| Shipping: | 30 days after prepayment |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Wood case or export container |
Quick Details
- Type: Briquette Machines
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE & ISO9001:2008
- Dimension(L*W*H): Based on different model
- Model Number: ZKBM
- Brand Name: Zhengke
- Power(W): 5.5-135KW
- Motor Type: AC Motor
- Production Capacity: 1-31t/h
- Condition: New
- Raw materials: Coal , coke , charcoal , gypsum , iron ore powder etc .
- Briquettes shape: Round , oval , oblateness , elongated , square shape etc .
- Voltage: 220V/380V
- Capacity rate: 90%-95%
- Color: As customer's demand
Specifications
Application
Briquetting machine can press ore powder , metal powder , coal powder , coke powder and other materials into ball shape . Such as coal , coke , charcoal , manganese ore , gypsum etc . Final briquettes have features of high density , high strength , high hardness , high performance , and the main rollers adopt hard wear resistance materials , which improve roller's service life greatly .
Working PrincipleMotive power will transmit to two rollers synchronously through the reducer and make them rotate oppositely . Materials naturally enter into ball mold , along with roller rotation , pressure of materials bearing become larger . When arriving at two rollers contact point , materials bearing pressure reaches peak . Under the tremendous pressure , materials become ball shape from powder shape .
Technical Parameter|
Type |
Roll diameter(mm) |
Capacity(t/h) |
Power(kw) |
|
ZKBM290 |
290 |
1-3 |
5.5 |
|
ZKBM360 |
360 |
4-6 |
11-15 |
|
ZKBM430 |
430 |
6-8 |
18.5 |
|
ZKBM500 |
500 |
7-9 |
18.5-55 |
|
ZKBM500H |
500 |
7-9 |
20.7-57.2 |
|
ZKBM650 |
650 |
10-15 |
37-45 |
|
ZKBM650H |
650 |
10-15 |
39.2-47.2 |
|
ZKBM750 |
750 |
15-20 |
75-110 |
|
ZKBM750H |
750 |
15-20 |
78-113 |
|
ZKBM850 |
850 |
20-25 |
90-110 |
|
ZKBM850H |
850 |
20-25 |
93-113 |
|
ZKBM1000 |
1000 |
25-30 |
90-132 |
|
ZKBM1000H |
1000 |
25-30 |
93-135 |
|
Remarks: Based on different materials, briquettes size, capacity, the technical parameter is adjustable. |
|||
