Yi Shui Guangju Hydraulic Cylinder Manufacturing Co., Ltd.
China Manufacturer with main products: Honed Tube, Ready to Hone Tube, Cylinder Tube, Hydraulic Cylinder Tube, Cold Drawn Tube, Pipe, Piston Rod, Skiving and Burnishing Tube |

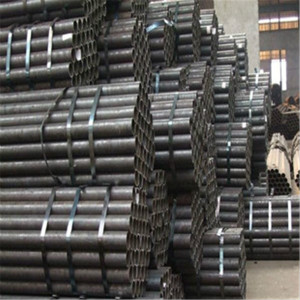

hydraulic cylinder tube
| FOB Price: | 800.00 - 1,200.00 USD/Ton |
|---|---|
| Supply Ability: | 10,000 Ton/Tons per Month |
| Payment Terms: | T/T |
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Both ends caps,Bandle with steel strips,braiding parcel at outside. |
Quick Details
- Section Shape: Round
- Outer Diameter: 40-245 mm
- Thickness: 2-100 mm
- Grade: 10#-45#,16Mn,ST35-ST52
- Grade: 10#,20#,45#,16Mn,ST35,St42,St52
- Standard: ASTM,DIN,GB
- Standard: ASTM A106-2006,DIN 1630,DIN 2391,GB/T3639,GB/T8163
Specifications
Specifications
Material:20# 45# 16Mn 27SiMn ST52,BK+S,DIN2391,ASTM A 106 or according to your requirement.
Standard: GB/T8713-88 GB/T3639-2000 DIN 2391 EN10305 or according to your requirement.
Straightness:0.3~0.8mm/m or according to your requirement
Elongation: 14%-25% or according to your requirement.
ID tolerance:H7-H8
Application:
Mining industry, machinery processing, natural gas oil transportation exploitation etc.
Process:
Cold-drawn, cold-rolled, honed, SRB
Main Customers:
Baosteel Shanghai Branch, Tianjin Pipe (Group) Corporation (TPCO), Ansteel Group Corporation, and some of its products even adopted on .imported materials for processing. products exported to the Middle East, South Asia, South America, Africa and other countries and regions more than 40 countries and regions.
| ST52-3, CHEMICAL COMPOSITION | ||||||||
| C | Mn | P | S | Si | Al | Cu | Mo | V |
| 0.18 | 1.39 | 0.017 | 0.005 | 0.30 | - | - | - | - |
| 0.15 | 1.42 | 0.017 | 0.003 | 0.26 | - | - | - | - |
| 0.16 | 1.42 | 0.015 | 0.007 | 0.28 | - | - | - | - |
| ST52-3, MECHANICAL PROPERTIES | ||||
| Y.S. | T.S. | ELONGATION | HARD- | |
| MPa | Mpa | % | NESS | |
| 620 | 760 | 18 | - | |
| 634 | 745 | 20 | - | |
| 650 | 798 | 19 | - | |
