2-Door Access Controller for Tripod Turnstile, Flap Barrier, Full Height Turnstile
| Supply Ability: | 2,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 3-12days depends on demand quantity, shipment at Shenzhen or Hongkong |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, Pay pal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | packed in cartons |
Quick Details
- Model Number: L02
- Brand Name: Koten
Specifications
TCP/IP wiegand door access controls for 2 doors 4 readers
wiegand door access controls Specifications:
| HSY-02B Access Control Panel Product Parameters: | |
| PCB board size: | 160mm * 106mm |
| Case Size: | 273mm * 228mm * 65mm |
| Power Supply: | 12VDC 3-7A |
| Circuit board power consumption: | less than 100mA |
| Reader Input Format: | Wiegand26 (compatible with all readers under the agreement) |
| Communication: | TCP/IP 10M/100M |
| self adaptive Function Description: | can control one doors, enter via card swiping and exit via card swipping or button. |
| Connect Reader | 4pcs readers |
| Can control the gate output relay: | 2 pair |
| Open delay time: | 1-600 seconds adjustable |
| Maximum number of connections: | No limite Operating temperature: -40 to 70 degrees Celsius |
| Run Humidity: | 10-90% RH, non-condensing |
| User registration card capacity: | 10,000 cards Permissions |
| Signal output communication format and baud rate: | Support LAN, Intranet, fix Ipinternet WAN. |
| Power failure protection measures: | high-speed flash memory design, and never lose data |
| Max distance between reader to the controller: | 100 meters, suggest within 80 meters |
| Max distance for the bus line: | Depends on network cover area. |
| Max distance between controller to the PC: | No limite |

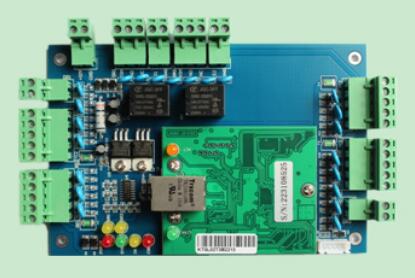

wiegand door access controls Photos:
Attention:
1. Wiring standard:
Even the connection distance is very short, is must be implemented according to the following requirement
2. 220V AC power cable:
Three- wire power supply,the cross-sectional area 1.0 square or more.It's required that power supply must be grounded to prevent from power interference
3. The line of electric lock to controller:
It's recommended to use two-wire power line,the cross-sectional aera 1.0 square or more. if the distance over 50meter,it's considered to use thicker line or multiple paraller.
4. TCP/IP communication line: Network cable
5. The card reader, door sensor and button line:
Can use network cable or others.
