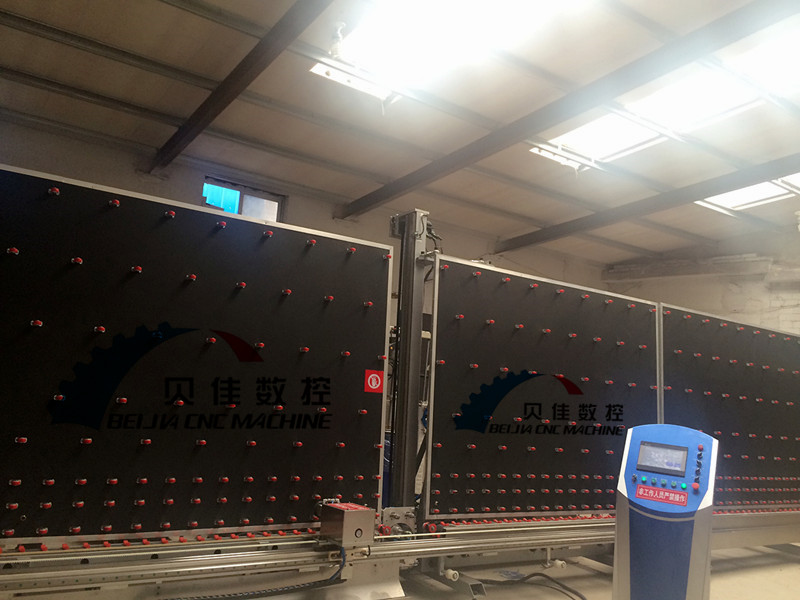

Double Glass Silicone Sealant Sealing Machine Line

FOB Price:	47,000.00 USD/Set
Supply Ability:	18 Set/Sets per Month
Shipping:	within 30 days after receiving deposit
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

IV Plastic Ampoule Sealing Machine for Bfs

Price:2,000,000.00-3,000,000.00 USD/Set

Min. Order:1 Set
FX-560 Model Automatic Boxes Sealing Machine

Price:

Min. Order:
Hot Air Seam Sealing Machine for Waterproof Pro...

Price:5000.00 USD/Set

Min. Order:1 Set
Automatic Induction Sealer Packaging Machinery ...

Price:1.00-10,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	plastic film or according to customers' requirement

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Weight: 3500 kg
Dimension(L*W*H): 8400*3000*3100 mm
Voltage: 380V 50Hz
Model Number: FJX-2000L
Brand Name: BEIJIA
Machine Type: Insulating Glass Production Line
Condition: New
Min Glass SizeD: 400*350 mm
Max Glass Size: 2000*2500 mm
Single Glass Thickness: 3-12 mm
Double Glass Thickness: 12-60 mm
Glue Sealing Speed: 12-30 m/min
Glue Sealing Width: 6-24 mm
Glue Sealing Depth: 2-15 mm
Transmition Speed: 0-48 m/min
Total Power: 13 kw
Dimension: 8400*3000*3100 mm

Specifications

Double Glass Silicone Sealant Sealing Machine Line

Equipment Features:

1. For mode II: using two independent sealant supply systems, two fast switch, one-button operation.

2. Adopt KINCO Servo Control System, the performance is stable, surface with high smoothness.

3. User-friendly interface, Easy operation.

4. The automatic alarm device, find the faults timely and immediately remove. / Equipment with glue quantity warning system, remind to change glue bucket.

5. Detecting the glass size and thickness automatically, adjusting the position of 'V' conveyor accurately and guarantees the same working height.

6. Adopt proportion hydraulic pressure control system, to assure the speed and the glue supply stably.

7. Aiming at system and beautifying angle of glass automatically, ensure the insulating glass more aesthetic.

8. Imported SMC air cylinder for glue supply system assures the stability of glue supplying.

9. Hydraulic System for secondary pressure, the effect significantly, to ensure high-speed coating.

10. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean, V type block is changeable, automatically adapts to the glass thickness. / The special " V" synchronous conveyor, ensure the transmition steadily and no pollution.

11. All separate function can be set to manual, easy adjustment.

12. Processing double glass and triple glass.
