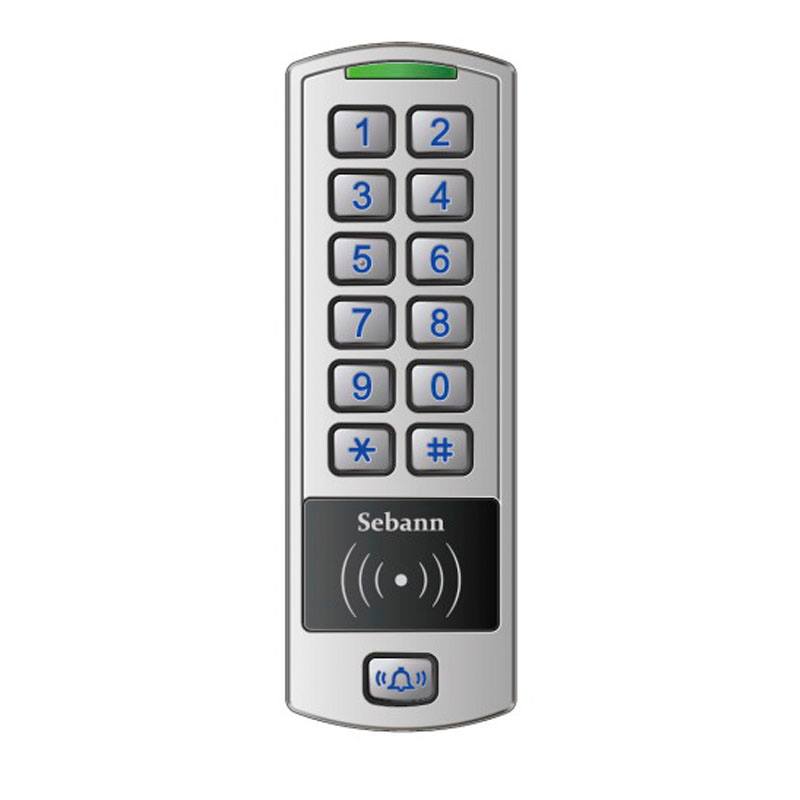

Easy Keypad Access Control with RFID Reader

Supply Ability:	3,200 Piece(s) per Month
Payment Terms:	L/C, T/T, Western Union, Paypal

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	As per your request

Quick Details

Brand Name: SEBANN
Dimension: 150L x 51W x 23H (mm)
Capacity: 1000
Materials: Zinc-alloy
Power Supply: 12-24V DC
Model Number: ACK2
Anti-vandal: Zinc Alloy
Easy operation: 6 wiring

Specifications

Model Number

ACK2

User Capacity

1,000 Cards/PIN

Operating Voltage

Idle Current

Active Current

12-24V DC / 12-18V AC

55mA

80mA

Keypad

PIN Length

12 Key (2 * 6)

4-6 digits

Proximity Card Reader

Radio Technology

Read Range

125KHz Industry Standard Proximity Card

3-6cm

Wiring Connetions

Electric Lock, Exit Button, External Door Bell, DOTL,

External Alarm, Wiegand (in / out)

Relay

Adjstable Relay Output Time

Adjustable Alarm Output Time

Lock Output Load

Alarm Output Load

ONE (NO, NC, COM)

1-99 Seconds (5 seconds default)

0-3 minutes (1 minute default)

3 Amp Maximum

Door Bell Button

55mA

Wiegand Interface

Wiegnd 26-37 Input/output

Environment

Operating Temperature

Operating Humidity

Meets IP44

-30C to +60C, or -22F to 140F

10% - 90% Non-condensing

Physical

Surface Finish

Dimensions

Zinc-Alloy Enclosure

Powder Coat

150L x 51W x 23H (mm)
