Home >Products Catalog > wood chips crusher machine,wood log crusher machine,wood hammer mill crusher

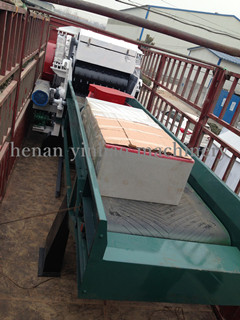

wood chips crusher machine,wood log crusher machine,wood hammer mill crusher

FOB Price:	2,500.00 - 5,000.00 USD/Set
Supply Ability:	100 Set/Sets per Week
Shipping:	7 days after receive your payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Wooden case or container wood log crusher

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 Year
Certification: CE ISO
Weight: Different
Dimension(L*W*H): Different
Power(W): 200kw
Voltage: 220v/380v
Model Number: YHBWC
Brand Name: Yinhao
Condition: New
Name: Yinhao log cutting machine
Model: YHBWC
Power: 200kw
Capacity: 18-38t/h
Size: 8600x2480x2800mm
Weight: 18600kg
Raw material: Wood branch/Tree skins/Plywood/Building material /Straw/Cotton stalk
Application: Wood Recycling
Color: Green Yellow Bule and so on
Key word: big wood crusher/wood pellet crusher/biomass wood crusher

Specifications

Product Feature:

1.This machine is suitable for crushing any biomass wood material, such as Wood branch, Tree skins, Plate, Plywood, Building material as well as for Straw, Cotton stalk, Bamboo etc.

2.It is the best choice for the biomass power plant or large wood processing plant to crush any kinds of wood with a large-scale production.

3.With a large capacity from 20-40T/H to produce chips or pieces.

4.This machine is designed with chain plate feeding system in automatic working. It is a intelligent processing machine.

5.It can be adjusted to the feeding speed automatically according to the main motor loading for different wood material to be processed.

Machine advantages:
1)comprehensive biomass crusher ,widely used in power plant crushing raw materials as burin in boiler.
2)the new type rotor, Combined knife,biomass crusher with high quality and high capacity.
3)the blades lifetime:3000-5000tons,but the raw materals can't have big stone,big iron.
4)USA Vermeer type 365 type blades,longer lifetime and high effciency.
5)the input conveyor is iron Chain plate, durable for waste of biomass raw materials.
6) Electrical remote control,easy to control the machine start and stop, telecontrol.

Technical Parameter:

Model	YHBWC1400-500	YHBWC1400-800	YHBWC1400-1000
Dia.of knife roller (mm)	800	1100	1300
Speed of knife roller(rpm)	926	926	926
Blade number(pcs)	24	24	30
Main motor power(kw)	200	250	315
Capacity(T/H)	18-20	25-28	30-38
Feeding inlet(mm)	1400-500	1400-800	1400-1000
Machine weight(T)	18.6	24.6	26
Machine Profile(mm)	8600x2480x2800	11000x2480x3250	11000x2480x3450
