Home >Products Catalog > High capacity TF-180 coal rods extruder from factory

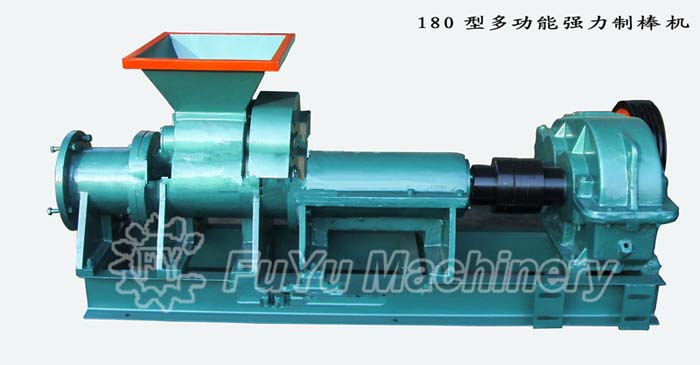

High capacity TF-180 coal rods extruder from factory

FOB Price:	4,500.00 - 120,000.00 USD/Set
Supply Ability:	100 Set/Sets per Year
Shipping:	30days after confirm the order
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Big capacity BV CE briquettes press machines

Price:1,000.00-99,999.00 USD/Set

Min. Order:1 Set
Charcoal Briquettes Prices/Wood Charcoal Brique...

Price:

Min. Order:1 Set
Charcoal Briquette Pressing Machine/Charcoal Br...

Price:1.00 USD/Set

Min. Order:1 Set
Low Consumption Coal Briquetting Machine In Ene...

Price:

Min. Order:1 Set
Iron Powder Briquette Machine/Briquetting Machi...

Price:2.00 USD/Set

Min. Order:1 Set
Shisha Coal - Charcoal Briquette Machine

Price:6,000.00-9,000.00 USD/Set

Min. Order:1 Set
Wood Charcoal Briquette Machine

Price:1.00-9,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	40'GP

Quick Details

Type: Briquette Machines
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12month
Certification: CE & ISO
Model Number: TF-180
Brand Name: FuYu
Power(W): 18.5-22
Production Capacity: 2-3t/h
Condition: New
Model: TF-180
Capacity: 2-3t/h
Packing: 40

Specifications

Working Principle
Coal rods machine is a machine tool for the different shape of the powder coal. Its working principle is: the motor through the triangle belt transmission to the transmission, the transmission output shaft through the floating coupling to push the propulsion shaft, the propulsion shaft to promote the coal feed through the forming die, and then give birth to an ideal high pressure coal rod.

Structure Features
1.The feed screw leads to large, feed into the material quickly, and promote the small, the province power.
2.Shaft block with the use of rigid connection, high degree of resistance, anti - thrust, machine stability
3.The need to seal the use of fault structure, the dirt from the fault
4.Triangle belt drive, smooth operation, low noise, and its overload protection
5.The head and cylinder are connected with the card ring structure and the structure of the bolt.

Installation and Commissioning
1. The installation of spare parts must be thoroughly cleaned, removal of the transport or storage of a long time of rust, and check the parts are not damaged.
2. Based on the diagram on the basis of concrete pouring, and concrete screw, after the solidification of the coal rod machine dipping in concrete based on screw alignment, two concrete grouting, anchor bolts to be solidified, correct the machine level, the machine can be stable test machine.
3. Before the test machine will be the lubrication of lubrication, oil content is moderate. Check all the bolts if there is a loose phenomenon, and tighten. Point to move the machine to see if there is a foreign body or abnormal sound. All confirmed that no party can start running. And check the power direction is correct.
4. The machine idle for 3~5 minutes, then all the normal feeding trial, new machine feeding should be uniform, moderate (wet and dry water generally contain 12%~15%).

Technical Parameters
Model: TF-180
Capacity: 2-3t/h
Molding Specification: Dia20-60
Spindle Speed: 39-60Rev/min
Helical Blade Number: 4
Electric Machinery: 18.5kw, 22kw
Reducer: ZQ400
Bearing: 7511,211,210,1305
Remarks: The spindle speed is the lowest speed, according to the current size of the load weight. Yield increase.
