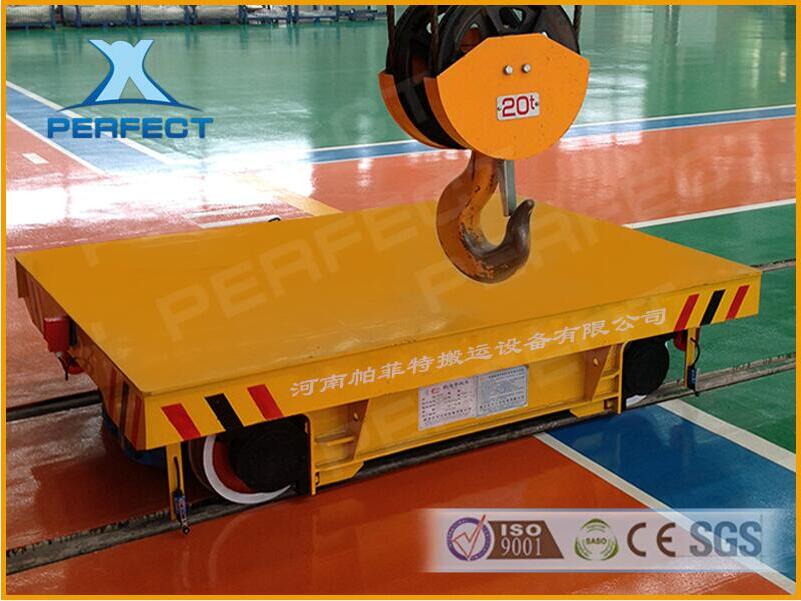

Cast wheel rail transfer bogie for steel plant

FOB Price:	12,000.00 - 15,000.00 USD/Set
Supply Ability:	60 Set/Sets per Month
Shipping:	30-60 days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	The transfer cart is packed by high quality plastic cloth, the part is packed by wooden crate

Quick Details

Model Number: BXC-10T
Brand Name: PERFECT
Product name: Cast wheel rail transfer bogie for steel plant
Capacity(t): 10
Table size(MM): 5000*2500*600
Running speed(m/min): 0-20
Wheel diameter(mm): 400
Wheel quantity(pcs): 4
Rail gauge(mm): 1435
Rail type: p24
Application: Steel plant, warehouse,assembly line
Certigication: CE,SGS,ISO9001

Specifications

Cast wheel rail transfer bogie for steel plant

Working principle of cast wheel rail transfer bogie

As the electric source of BXC type transfer bogie, the battery offers the power for rail transfer car, the direct current is conducted into the electrical appliance box, and through the electrical appliance box, it offers electric for the control system and the electric motor. The hand held control and the remote control the start, stop of the electric motor, then the start ,stop, forward and backward of the transfer cart.

Advantages of rail transfer bogie

The battery power cast wheel rail transfer bogie has no strictly requirement on rail construction. It has no limit on working time, and can cross running with other vehicles. The cart can not be 24 hours continuously work, but it can rechargeable at least 1000 times.

Application of 10t transfer bogie

When to weld round steel and retort, it needs to rotate in 360°. The transfer cart is fixed with roller support bracket.Then workpiece will rotate in 360°with roller to weld.After welded,transfer cart will go to radiography room and inspect it in 360°.

Technical p[arameters of 10t transfer bogie

Item	BXC-5T	BXC-10T	BXC-20T	BXC-30T	BXC-50T	BXC-80T	BXC-100T	BXC-150T
Capacity(t)	5	10	20	30	50	80	100	150
Table size(mm)	40002000500	40002000500	45002000500	50002200550	70002200600	70002500600	80002500700	80002500800
Speed(m/min)	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20
Rail gauge(mm)	1435	1435	1435	1435	1435	1535	1800	1800
Wheel diameter(mm)	350	400	400	500	500	550	600	700
Rail model	P24	P24	P24	P38	P43	P50	QU80	QU80
