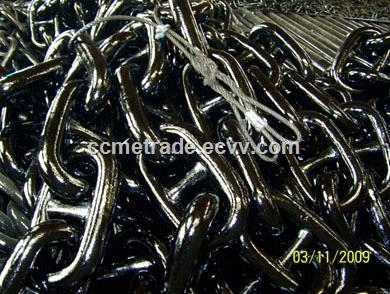

marine stud link anchor chain grade U2&U3/ anchor chain/ studless anchor chain

FOB Price:	1.00 - 5.00 USD/Piece
Supply Ability:	1,000 Ton/Tons per Month
Shipping:	by sea shipping
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	Standard type

Quick Details

Weight (kg): 3001 - 6000kg
Design: Hall Anchor
Material: Carbon Steel
Grade: U1,U2,U3
Diameter: 6mm-107mm
certificate: CCS/ABS/DNV/LR/BV/GL/NK

Specifications

Marine Stud Link Anchor Chain/ studless anchor chain:

1. Standard length is 27.5m per piece,we also can produce and cut anchor chains according to your requirement .

2. Material: alloy steel, generally including CM370, CM490, CM690, or according to your requirement

3. Grade :U1&U2&U3 stud link anchor chains, studless link chains and open link chain

4. Surface treatment: self color, black painted, zinc galvanized, hot dip galvanized or according to customer's requirement.

5. The tension breaking load conforms to National Standard.

6. Studless anchor chains. Specification: 12.5-70mm, mainly adapt to vessels, fish net tenesmus, mine, municipal engineer,
new established garden decoration

7. Production process: (1) material cutting (2) heating (3) curving (4) welding (5) thorn cutting (6) pressing (7) heating
treatment (8) Blind bolts (9) polishing (10) painting or galvanized

Ship anchor chain Size(6×3.6D) Proof Load Weight
Diameter D(φ)		Size		U1 ship anchor chain		U2 ship anchor chain		U3 ship anchor chain		Weight
Diameter D(φ)		Outside length L	Outside width B	Proof load	Breaking load	Proof load	Breaking load	Proof load	Breaking load	27.5M
Inch	mm	mm	mm	KN	KN	KN	KN	KN	KN	KG
1/2	12.5	75	45	46	66	66	92	92	132	98.00
9/16	14	84	50.4	58	82	82	116	116	165	119.00
5/8	16	96	57.6	76	107	107	150	150	216	156.00
11/16	17.5	105	63	89	127	127	179	179	256	186.00
3/4	19	114	68.4	105	150	150	211	211	301	230.00
13/16	20.5	123	73.8	123	175	175	244	244	349	260.00
7/8	22	132	79.2	140	200	200	280	280	401	300.00
15/16	24	144	86.4	167	237	237	332	332	476	370.00
1-1/16	26	156	93.6	194	278	278	389	389	556	431.00
1-1/8	28	168	100.8	225	321	321	449	449	642	496.00
1-3/16	30	180	108	257	368	368	514	514	735	564.00
1-1/4	32	192	115.2	291	417	417	583	583	833	635.00
1-5/16	34	204	122.4	328	468	468	655	655	937	712.00
1-7/16	36	216	129.6	366	523	523	732	732	1050	800.00
1-1/2	38	228	136.8	406	581	581	812	812	1160	887.00
1-9/16	40	240	144	448	640	640	896	896	1280	1032.00
1-5/8	42	252	151.2	492	703	703	981	981	1400	1084.00
1-3/4	44	264	158.4	538	769	769	1080	1080	1540	1197.00
1-13/16	46	276	165.6	585	837	837	1170	1170	1680	1310.00
1-7/8	48	288	172.8	635	908	908	1270	1270	1810	1438.00
2	50	300	180	686	981	981	1370	1370	1960	1546.00
2-1/16	52	312	187.2	739	1060	1060	1480	1480	2110	1661.00
2-1/8	54	324	194.4	794	1140	1140	1590	1590	2270	1791.00
2-3/16	56	336	201.6	851	1220	1220	1710	1710	2430	1926.00
2-5/16	58	348	208.8	909	1290	1290	1810	1810	2600	2086.00
2-3/8	60	360	216	969	1380	1380	1940	1940	2770	2249.00
2-7/16	62	372	223.2	1030	1470	1470	2060	2060	2940	2361.00
2-1/2	64	384	230.4	1100	1560	1560	2190	2190	3130	2516.00
2-9/16	66	396	237.6	1160	1660	1660	2310	2310	3300	2676.00
2-11/16	68	408	244.8	1230	1750	1750	2450	2450	3500	2885.00
2-3/4	70	420	252	1290	1840	1840	2580	2580	3690	3010
