Wuxi Mulholland Import & Export Co., Ltd.
China Manufacturer with main products: Crusher, Wire Machine, Textile Machine |
textile fancy finishing machines
| Supply Ability: | 50 Set/Sets per Month |
|---|---|
| Shipping: | Delivery time: 15 days. Port: Shanghai, China |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Export wooden box. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Automatic Grade: Automatic
- Condition: New
Specifications

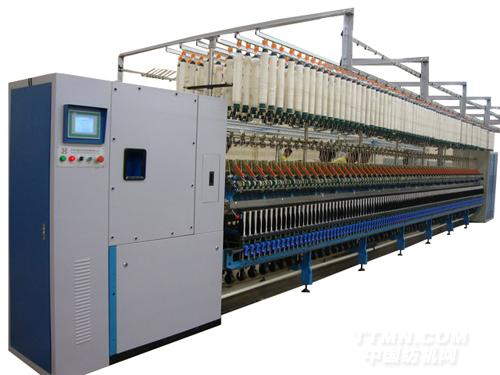

Fancy Yarn Twisting Machine
1.Introduction
The product has wide application scopes, modern design, big take-up amount, high speed, it is easy to operate and maintain, low noise, and power consumption. It is a high efficiency and output machine with twisting and stranding. It has the mechanism of twisting direction changing, safe device and lifting mechanism with planetary direction exchanging. Stranding and twisting of the twine can be finished in one time. It is suitable for primary twisting and re-twisting of all kinds of PP twine, PE twine, Polyester twine, nylon twine, cotton twine and twisted ropes in small size.
2.Technical Parameters
|
Model
|
Quantity of spindle
|
Lifting movement of travel ring
|
Speed of spindle | Dia of roller | Distance of spindle |
Dia of traveler ring |
Twisting direction |
Overall dimension |
Machine weight |
|
HDRT-721A |
160 |
203mm |
3310-6760rpm |
51 or 57mm |
140mm | 100mm | Z or S | 13.5*1.13*2.15m | 6.5tons |
|
HDRT-721B |
120 |
205mm |
2800-5730rpm |
51 or 57mm |
186mm | 140mm | Z or S | 13.5*1.13*2.15m | 6.8tons |
|
HDRT-722 |
40 |
300mm |
1800-2800rpm |
57mm |
280mm | 204mm | Z or S | 7.07*1.58*2.27m | 6.6tons |
|
HDRT-723 |
12 |
300mm | 1800-2100rpm |
57mm |
375mm | 254mm | Z or S | 5.95*1.1*2.2m | 2.8tons |
3.Feature:
1.Wide applied scope
2:Big winding capacity
3:Strong suitability for material
4:Longer life for spart part
5:AC Invertor & Motor
6:Mechanism of twisting direction changing
7:Anti-conversing turning device for roller
8:Lifting mechanism with planetry
9:Two procedures of twine can be finished in one time.
9:Latest technology used to force the melt into the die very effectively
10.All spare parts of Fancy Yarn Twisting Machine made by ourselves, and every parts have to pass strict inspection before they are installed on the machine
4.Our service
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year warranty.
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
