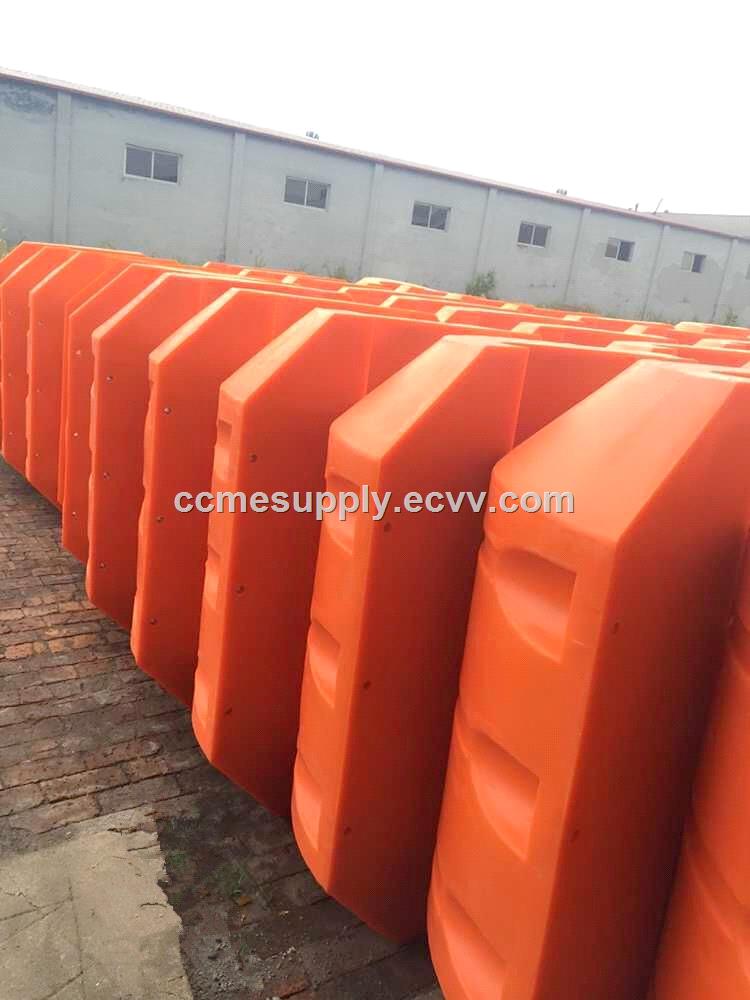

Dredger floaters Dredger pipe collars HDPE pipe floaters

FOB Price:	5.00 - 25.00 USD/Piece
Supply Ability:	1,000 Piece/Pieces per Month
Shipping:	by sea shipping
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	Standard type

Quick Details

Part: HDPE pipe floaters
Length: 0.5m-3m
Thickness: 6mm-8mm
Standard: ISO9001:2008

Specifications

Characteristics for Pipe Float:

1. Good flexibility,excellent impact resistance,particularly suitable for constructions in open sea.

2. Light weight,Molded-in bolt holes allow for easy installation,lower costs for moving.

3. Higher corrosive resistance,longer working life,3 times longer than steel pipe floats.

4. Lower costs,the cost performance is better than steel pipe floats.

5. Specification OD: under the size of O.D 4m * L4m .

6. Clamp connection of pipe floats compresses the pipeline preventing slippage.

7. Tapered ends on the outside of the Pipe Floats decrease water and wind resistance.

8. Tapered ends on the inside of the Pipe Floats allow the cable,hose,or pipeline to move freely.

Pipe I.D mm	Pipe thickness mm	I.D of float mm	O.D of float mm	Length of float mm	Thickness mm	Note
200	6	220	500	800	7	Two pieces per unit
285	6	300	700	1200	7	Two pieces per unit
350	6	375	1100	1100	7	Two pieces per unit
400	6	414	1100	1200	8	Two pieces per unit
414	8	430	1200	1200	8	Two pieces per unit
450	8	480	1300	1300	8	Two pieces per unit
500	10	530	1400	1500	9	Two pieces per unit
550	10	580	1400	1600	10	Two pieces per unit
600	10	630	1400	1700	11	Two pieces per unit
650	10	680	1480	1800	11.5	Two pieces per unit
700	12	730	1600	1900	12	Two pieces per unit
750	12	780	1600	2000	13	Two pieces per unit
800	15	830	1800	2000	14	Two pieces per unit
850	15	880	1800	2200	15	Two pieces per unit
900	18	940	2200	2500	16	Two pieces per unit
