Auto Knife Sharpener Model DMSQ-HF

Specifications

Auto knife grinder DMSQ-HF is the gantry-type body which adopts the carbon constructional quality steel. Its wheel head transmission is rolling positioning linear guide; rails can be replaced, that the machine can last loner, travel more stable drive. Automatic feed grinding wheel by the PLC program control system, automatic control, and memory, storage and dynamic tracking, simple operation, greatly reducing the time to prepare work piece; can automatically adjust the coarse grinding , grinding times. Deburring device with combined wool polishing wheel, auto magnetic filter. It is best choice for small and medium sharpening center and medium-sized print houses.

Function of configuration

● Water-cooled motor grinding wheel head

● Polishing grinding head: German East Y series three-phase asynchronous motor

● Grinding head can move back and forth

● Frequency Control (travel mobile)

● Automatic feed grinding

● Rack and pinion

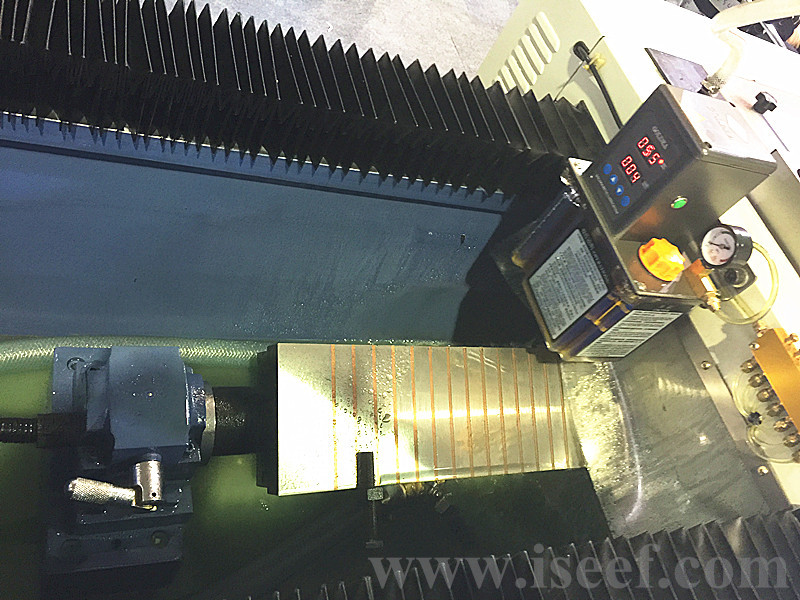

● Magnetic chuck tool holder table

● Imported linear guide rail

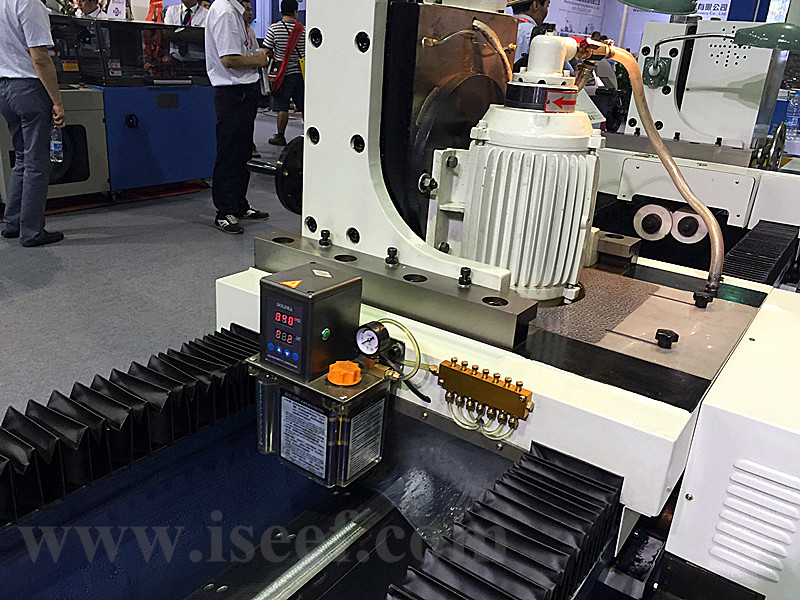

● Centralized refueling device

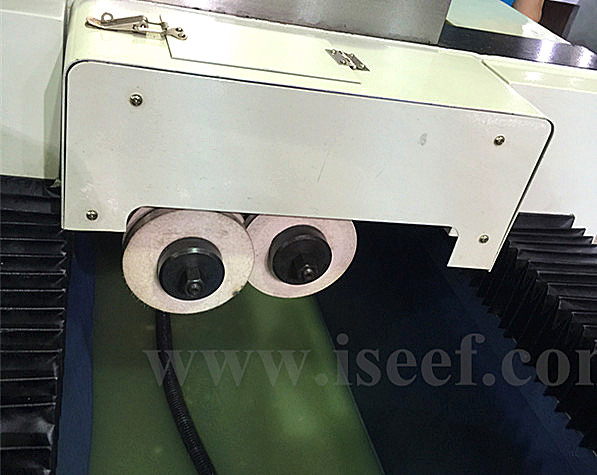

● Deburring device: Combined wool polishing wheel

● Self-cleaning device: auto magnetic filter

Optional device with surcharge: ● Imported electrical components (extra costs)

● Doctor blade Clamp (extra costs)

Main technical parameters

● Wheel Size: Cylindrical Φ200×Φ150×100(Φ300×Φ250×100)mm

● Maximum grinding width: taken 22°as final 300 mm

●Effective height of the grinding wheel and table: 80 mm

●Table rotation: 0～±90°

●Grinding rotation speed: 0-1800 r/min(Adjustable Frequency)

●Grinding movement speed: 3～15 m/min (Adjustable Frequency)

●Movement electromotor power: 0.55 KW

●Grinding head motor power: 4 KW

●Pump motor power: 0.25 KW
