Home >Products Catalog > 33.3375mm Chrome Steel Ball (AISI52100/SUJ-2) for Spherical Plain Bearing-Radial

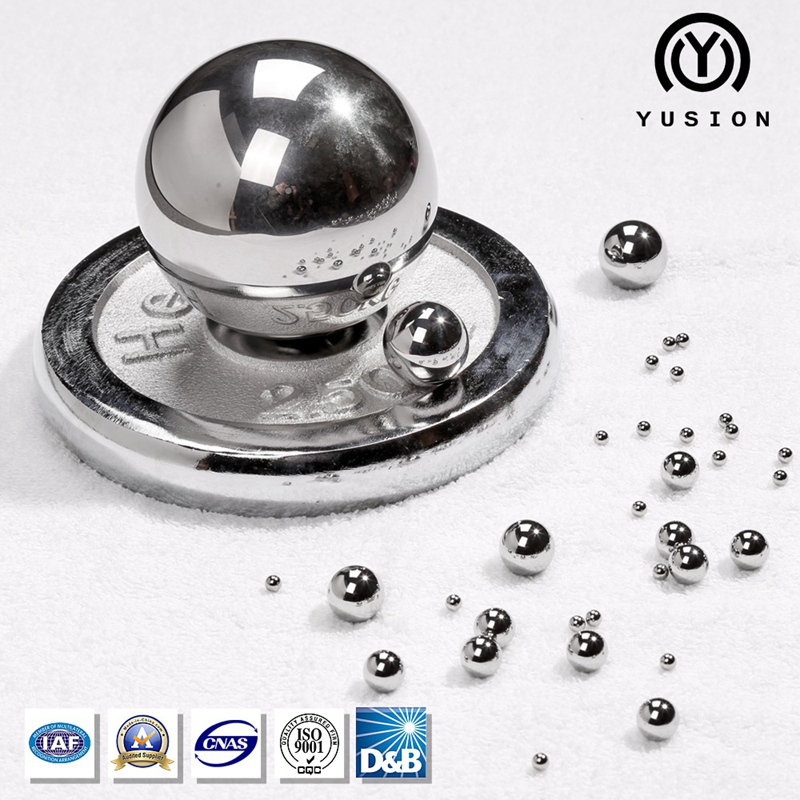

33.3375mm Chrome Steel Ball (AISI52100/SUJ-2) for Spherical Plain Bearing-Radial

FOB Price:	0.00 - 0.10 USD/Kilometer
Supply Ability:	2,000 Ton/Tons per Year
Shipping:	According to the quantity you need,every cargo generally can be completed within 30 working days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Paper Cartons Wrapped by Fumigation Wooden Pallet

Quick Details

Material: Bearing Steel
Model Number: 3/16"~6"(4.7625mm~150mm)
Brand Name: Yusion
Material:: Bearing Steel
Size:: 3/16"~6"
Diameter:: 4.7625mm~150mm
Grade:: G10~G600
Hardness:: HRC60~HRC66
International Standard:: ASTM/AISI/JIS/DIN
Color:: Chrome Color, Metal Color, Mirror
Export Markets:: Global
HS Code:: 84829100
Production Capacity:: 2000 Tons/Year

Specifications

AISI 52100 CHROME STEEL BALLS
Chrome steel ball ,or high carbon chrome steel ball is actually an alloy steel ball which owes its enhanced properties to the presence of lager proportions of special alloying elements such as chrominum , manganese and silicon than are ordinarily present in carbon steel .
It is a universal material for many applications, such as, ball and roller bearing industry and for a variety of automobile applications. Due to through hardening, it has an excellent surface quality , superior wear resistance ,hard hardness and high load bearing capacity.

APPLICATION
Our Chrome steel balls are applied in bearings such as slew bearing, deep groove ball bearing, thrust ball bearing, self aligning ball bearing, double-row bearing and etc.

MATERIAL COMPARISON LIST

State	China	Japan	America	Germany	France
Standard	GB	JIS	AISI	DIN	NF
Title	GCr15	SUJ-2	52100	100Cr6	100C6
Title	GCr15SiMn	SUJ-3		100CrMn6

MATERIAL ANALYSIS
AISI 52100 Chrome Steel Balls are manufactured to the following chemical analysis:

Steel NO.	Chemical Composition%
	C	Si	Mn	P	S	Cr
GCr15	0.90-1.05	0.15-0.35	0.20-0.40	≤0.027	≤0.020	1.35-1.65
GCr15SiMn	0.95-1.05	0.40-0.65	0.90-1.20	≤0.027	≤0.020	1.35-1.65

MECHANICAL PROPERTIES
Hardness as measured on parallel flat surfaces is Rockwell "C"60-66.Custom heat treating is available for special hardness and dimensional stability requirements.

Tensile strength Yield strength	228 Kgs/mm2 207 Kgs/mm2
Modulus of elasticity Density	20.748 Kgs/mm2 7,833 g/cm3

AVAILABLE GRADES AND SIZES

Grade	Size Range in Inches and Millimeters
10-600	3/16"-6" 4.7625mm-150mm

PACKING
Firstly we pack the balls in cartons.
One type inside has two cartons.
For each carton, length: 22cm width:17cm height:10cm
Another type inside has four cartons:
For each carton, length: 15cm width:12cm height:10cm
About the outside carton:
For each carton, length: 370mm width:250mm height:110mm
Then, we pack our balls using wooden pallet in our export business :
1). Put the plastic paper in the pallet(waterproof).
The size of wooden pallet: 860mmm 800mm 750mm

2). Put the ball carton into the pallet ,and fix the pallet.

3) .Hooping the pallet tightly using the steel rods
Generally, if you don't want packing with our company's logo and name, we offer neutral packing.

WHY CHOOSE YUSION
1. Professional manufacturer of steel balls since 1993.
2. .The leading domestic facility which can supply high precision steel balls with complete specifications.
3. An integrated set of industry and trade company,professional at before & after sales service
4. Certified by ISO 9001:2000,SGS and D&B quality system certification
5. Strict quality control system,100% inspection.
6. Adequate inventory,on time delivery
7.All inquiries and messages will be replied within 24 hours
8.Free samples can be offered
