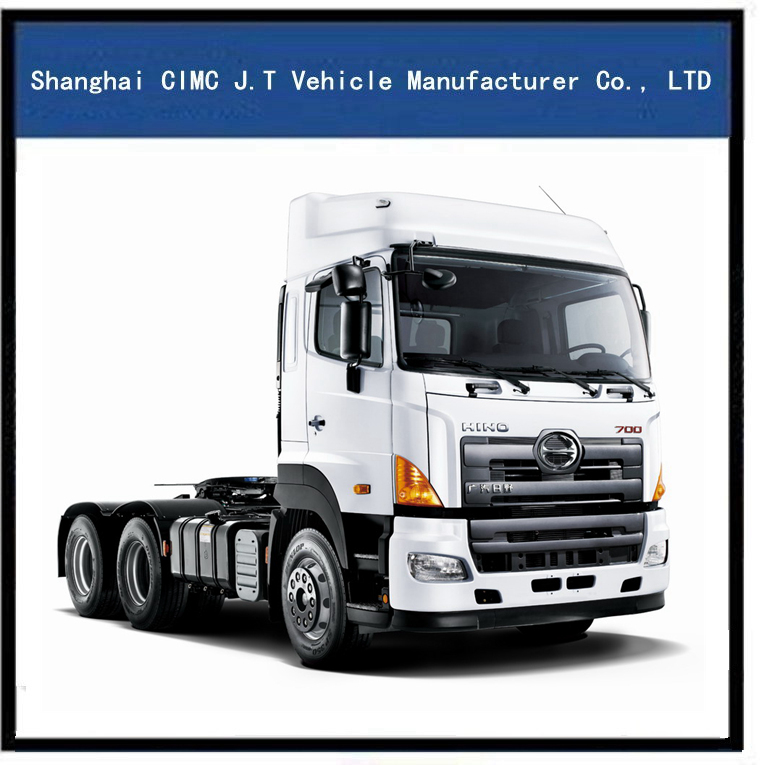

Hino Tractor Head/Prime Mover 6X4
| FOB Price: | 68,000.00 - 76,000.00 USD/Unit |
|---|---|
| Supply Ability: | 20,000 Unit/Units per Year |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
Quick Details
- Brand Name: Hino
- Fuel Type: Diesel
- Engine Capacity: > 8L
- Emission Standard: Euro 4
- Transmission Type: Manual
- Drive Wheel: 6x4
- Horsepower: 351 - 450hp
- Condition: New
Specifications
Engine Make:HINO
Diesel 4-stroke electric control common rail engine
Engine model: P11C-VK, Euro IV emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 350 hp(259kw) at 1900 rpm
Maximum torque: 1488 Nm at 1100-1300 rpm
Number of cylinder: 6
Displacement:10.52 L
Bore: 122 mm
Stroke: 150 mm
Specific fuel consumption: 195 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71oC opening begin
Twin cylinder air compressor
Rigid fan
Transmission EATON FULLER 12JSD160(TA), 12 forwards and 2 reverse, 1600N.m, 2600rpm
Ratio: 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.1 1.64 1.28 1 14.86(R1) 3.33(R2)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle HINO, Steering with doubleT-cross section beam
Rear Axle HINO Pressed axle housing, Pressed axle housing, central single reduction
Ratio:3.9
Brakes Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake (WEVB)
Trailer Brake
Fifth wheel Rated loading capacity at fifth wheel: 50,000kg
Wheels & Tyres Tire: 11.00R20, all steel radial tyre
Driver's Cab Standard cab, with two seats, 2 beds, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,
24V USB, air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber, Air suspension dirver seats
Dimensions mm Wheel base 3400+1410
Front wheel track 2060
Rear wheel track 1855
Approach angle (0) 14
Departure angle (0) 30
Overall length 7100
Overall width 2500
Overall height with roof air spoiler 3900
Height of fifth wheel above road 1360
Weight kg Dead weight 9400
Maximum Carry Capacity (kgs) 38600
Gross combination weight (GVW) 48000
Performance Maximum driving speed (km/h) 110
Maximum gradeability (%) 38
Minimum ground clearance (mm) 298
Minimum turning circle (m) 15
Fuel consumption (l/100 km) 34
