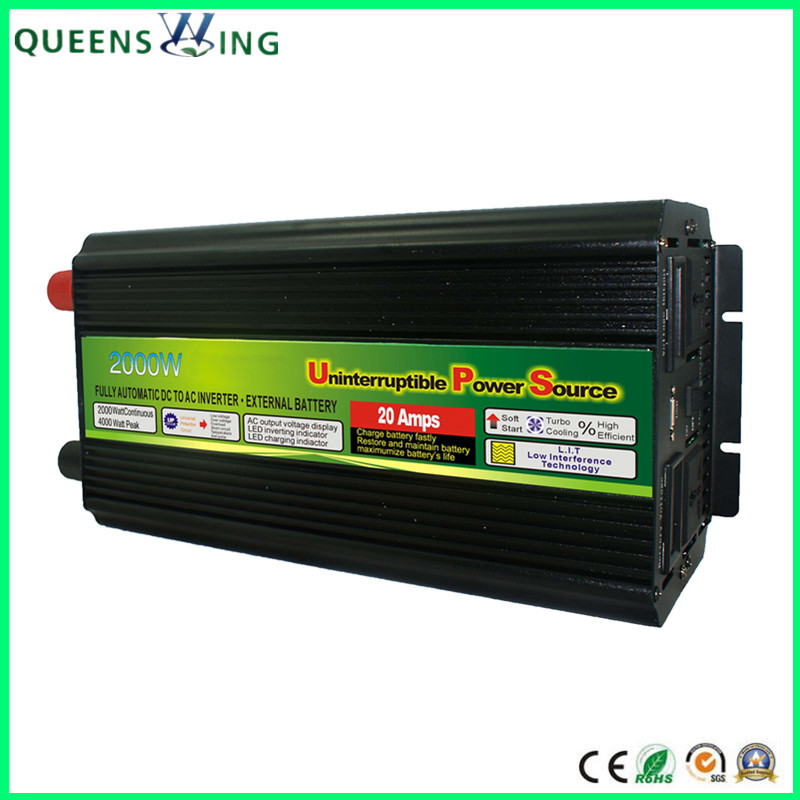

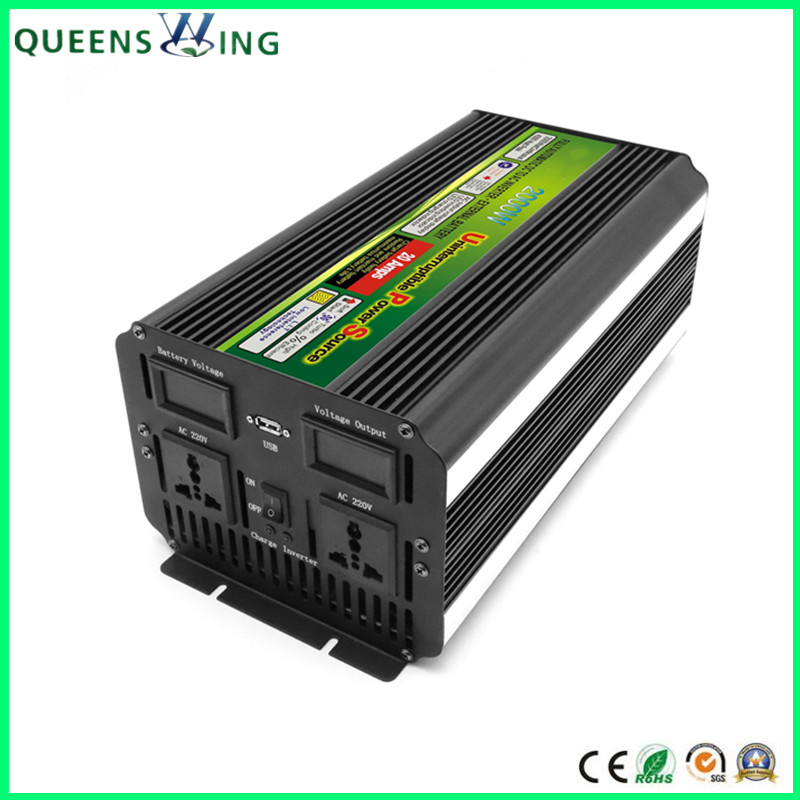

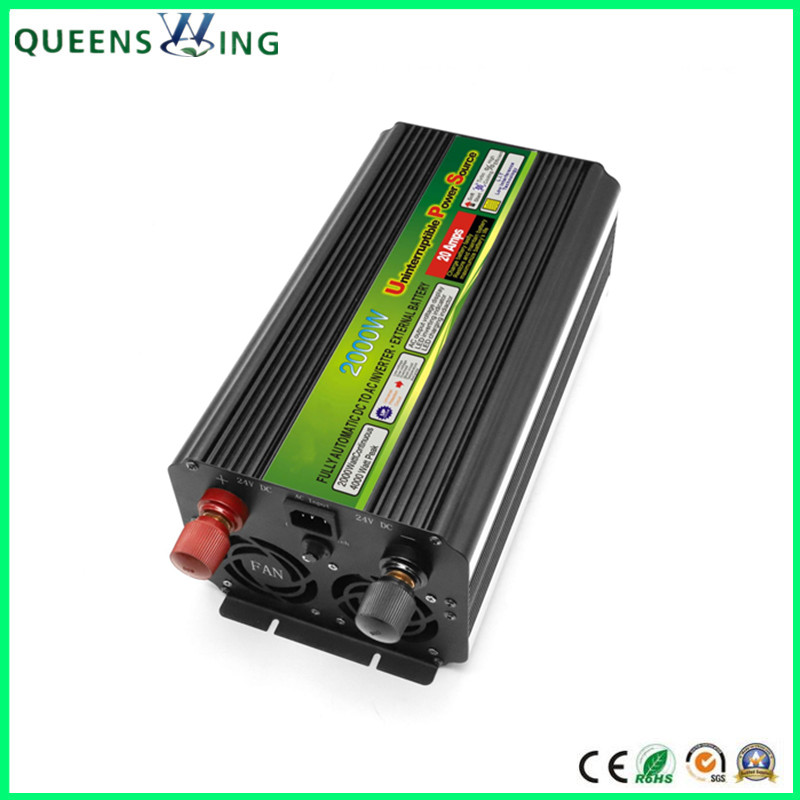

UPS 2000W DC12/24V Solar Power Inverter with Charger

Supply Ability:	50,000 Unit(s) per Month
Shipping:	in 7 - 15days
Payment Terms:	T/T, Western Union, MoneyGram

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Gift Box / Unit

Quick Details

Type: DC/AC Inverters
Output Voltage: 220VAC
Input Voltage: 12VDC
Output Type: Single
Brand Name: Queenswing
Output Frequency: 50/60Hz
Weight: 6.5kg
Size: 342*150*108mm
Model Number: QW-M2000UPS
Rated Power: 2000W
Surge Power: 4000W
DC Voltage: 12V/24V
Voltage Display: Digital Display
Output Frequency: 50/60Hz
Output Waveform: Modified Sine Wave
UPS Function: Have
USB Port: 5V 2A
Socket: Universal Socket, UK Socket, Us Socket
Keywords: UPS 2000W Solar Power Inverter with Charger

Specifications

UPS 2000W DC12/24V Solar Power Inverter with Charger(QW-M2000UPS)

1. Introduction:
QW-M2000UPS is modified sine wave inverter which converts DC power to AC power for household appliances, solar devices and telecommunication equipments when there is no grid power. Its high-speed built-in battery charger helps convert grid power into DC power for charging batteries; It works with batteries together to provide uninterrupted power for load or equipments. Its output is realized both by plug and USB charging port which is suitable for low wattage equipment such as mobile phones. To prevent damages to this inverter, soft start and safe working performance such as short circuit protection are added into its standard design. The cool shell and inner fan also help improve its performance.

UPS(Uninterruptible Power Supply) and charger function: When commercial power is on, inverter use commercial power; when commercial power is off, inverter will be transfer to use battery power and charging automatically, and the transfer time is less 10mS.

Technical Parameter:

Model No.	QW-M2000UPS
Rated power	2000W
Peak power	4000W
Transfer efficiency	≥94%
Input voltage	12Vdc	24Vdc
Input voltage range	10-15Vdc	20-30Vdc
Output voltage	110Vac	220Vac
Output voltage range	110Vac±5% or 220Vac±5%
Voltage display	Digital display
Frequency	50Hz±2% or 60Hz±2%
No load current	<0.85A	<0.5A
Waveform	Modified Sine Wave
Low voltage alarm(DC)	10.5Vdc	21Vdc
Low voltage protection(DC)	10Vdc	20Vdc
over voltage protection(DC)	15.5Vdc	31Vdc
USB port	yes
UPS transfer	Inverter use city power first, when city power cut off suddently, Inverter transfer to use battery power auto, and the transfer time is ≤10mS
Charge current	20A	10A
over-load Protection	2000W-2100W
Cooling Way	Intelligent Cooling Fans
Fan Start Temperature	≥40±5C
Temperature Protection	70±5C

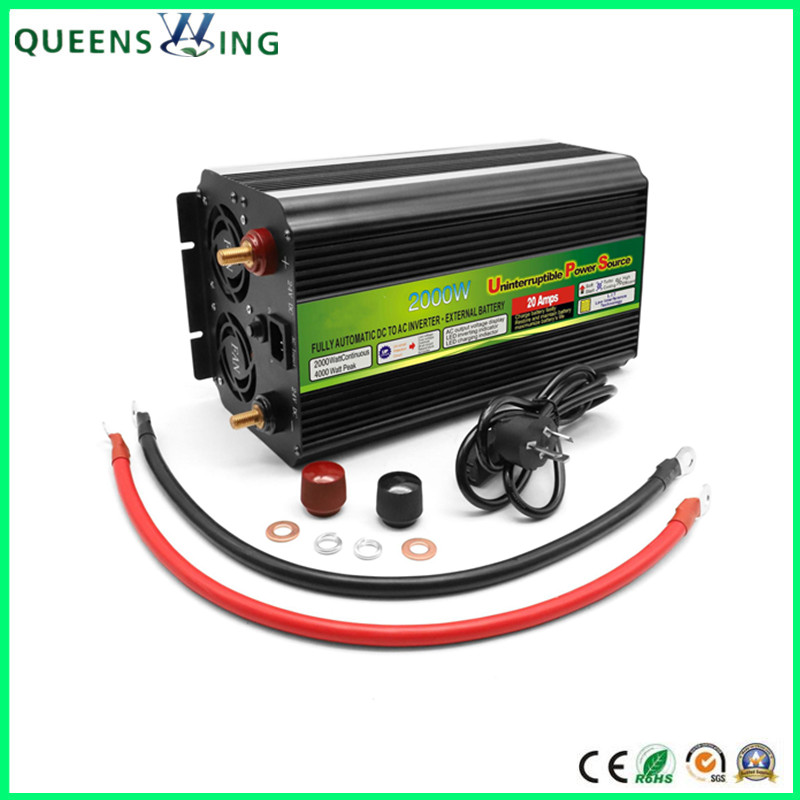

Packaged	1pair battery cable(red & black) 1charge cable 1english user manual 1neutral packing box
Dimension	Inverter: 342150108mm/6.5kg Carton: 460260172mm/28kg/4pcs
Certifications	CE,Rohs

Application:

Wind generation, solar panel, home, office, car, board and some place that lack electricity. Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!

Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. and our power inverter serials enjoy better reputation. with reliable quality and stable performance.

Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.

Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.

Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: by sea / air or Customer designated

FAQ:

1. What is inverter?
Inverter is an electronic equipment that turn 12v/24v/48v DC into 110v/220v AC.

2. What is the difference between the inverter with UPS + charger and inverter with charger?

A2: UPS inverter: When the mains is on, the current through the inverter power to the load, and at the same time charge the battery. When mains drops, it will automatic transfer and let the battery to supply power for the load: Current flow direction is: Battery - inverter - Load.

with battery without UPS inverter: When the mains is on, the main electricly charge the battery, and the current of the battery through the inverter power to the load, always use battery power, without automatic transfer function.

3. What can a UPS do for me?

A1: Every UPS will supply power to a load (such as a computer, telephone switch or medical equipment) when mains power fails, it may also condition the power and prevent spikes, brownouts, interference and other unwanted problems from reaching the supported equipment.
