3000W DC AC Solar Power UPS Inverter with Charger

Supply Ability:	50,000 Unit(s) per Month
Shipping:	in 7 - 15days
Payment Terms:	T/T, Western Union, MoneyGram

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Gift Box / Unit

Quick Details

Type: DC/AC Inverters
Output Voltage: 220VAC
Input Voltage: 12VDC
Output Type: Single
Brand Name: Queenswing
Output Frequency: 50/60Hz
Weight: 7.5kg
Size: 438*155*142mm
Model Number: QW-M3000UPS
Rated Power: 3000W
Peak Power: 6000W
Output Voltage: 220V
Input Voltage: 12V / 24V
Voltage Display: Digital Display
UPS Function: Have
Charger: 20A
Output Waveform: Modified Sine Wave
Output Frequency: 50/60Hz
Keywords: 3000W DC Solar Power UPS Inverter with Charger

Specifications

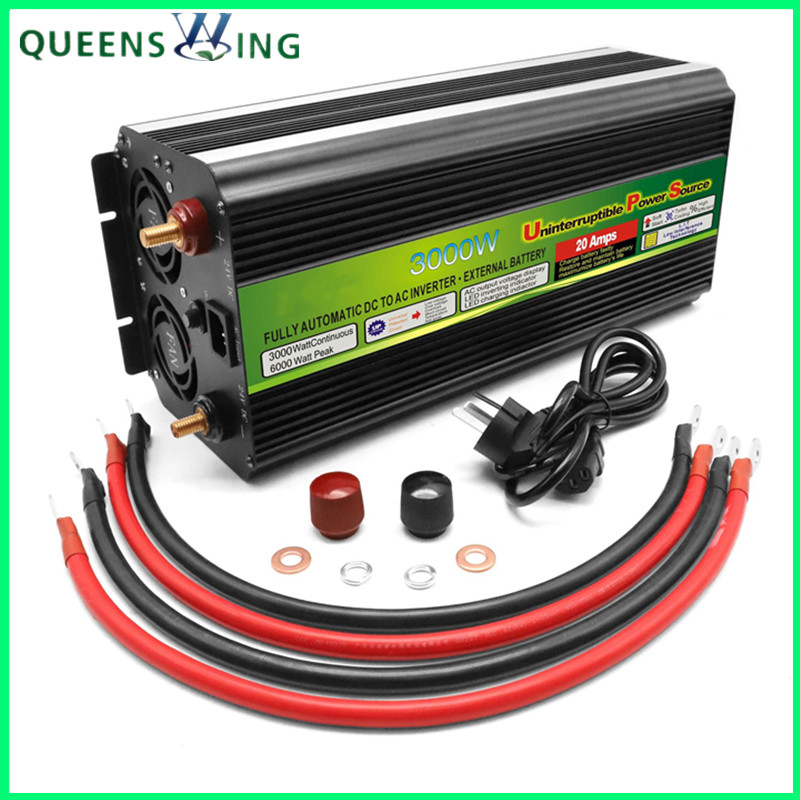

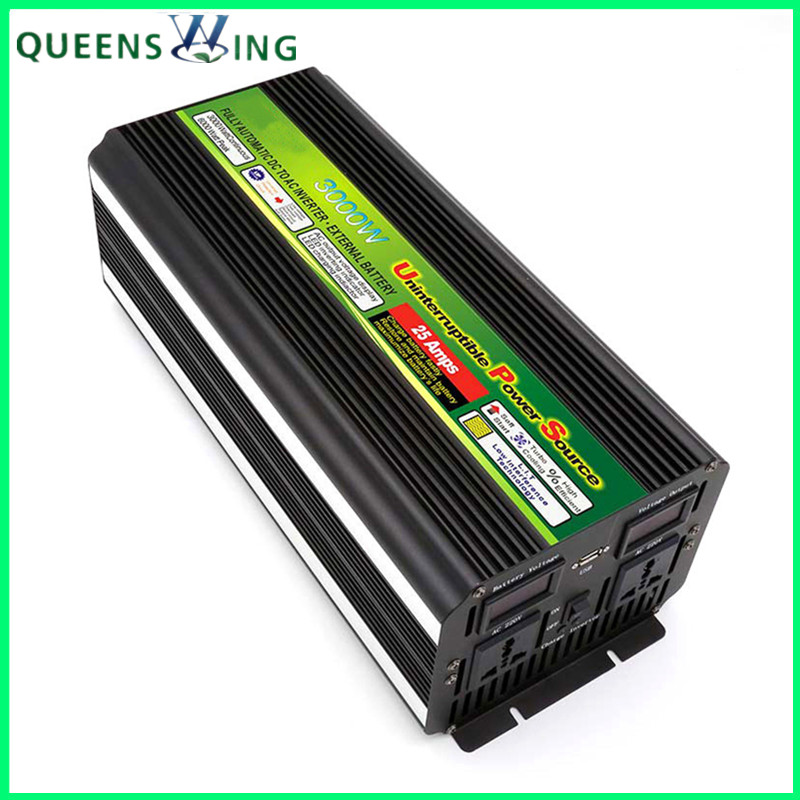

3000W DC AC Solar Power UPS Inverter with Charger (QW-M3000UPS)

1. Introduction:
QW-M3000UPS is modified sine wave inverter which converts DC power to AC power for household appliances, solar devices and telecommunication equipments when there is no grid power. Its high-speed built-in battery charger helps convert grid power into DC power for charging batteries; It works with batteries together to provide uninterrupted power for load or equipments. Its output is realized both by plug and USB charging port which is suitable for low wattage equipment such as mobile phones. To prevent damages to this inverter, soft start and safe working performance such as short circuit protection are added into its standard design. The cool shell and inner fan also help improve its performance.

2. Feature:

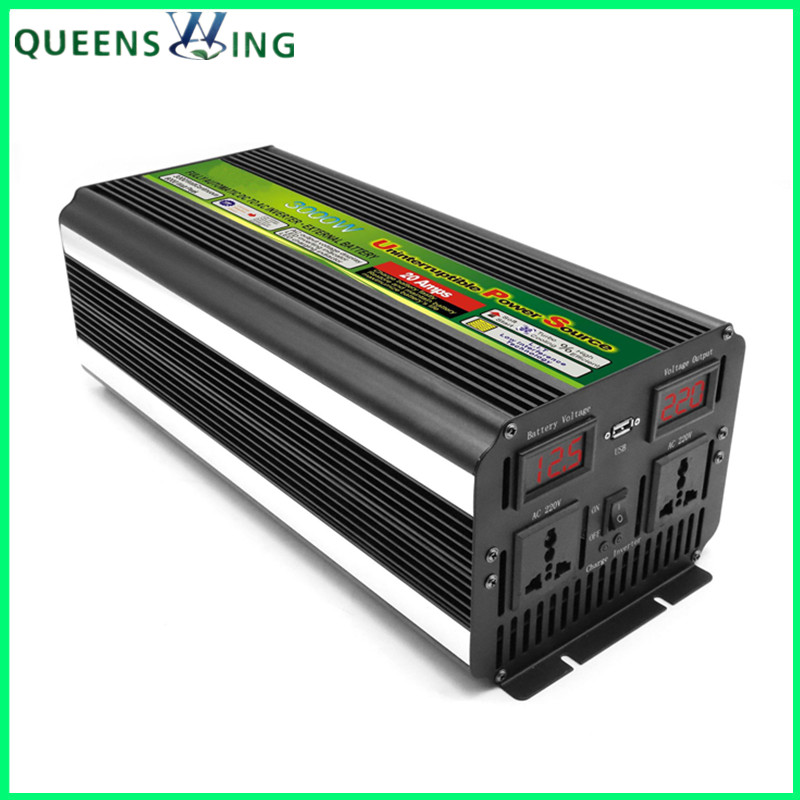

* Digital display: Input voltage and Output Voltage.
* UPS+charger function: When city power is on, inverter use city power first; once city power cut off suddently, inverter transfer to use battery back-up power automatically, and the transfer time ≤5mS.
* Revolving speed of the intelligent fan control.
* with USB port.
* Maximum 3000W continuous output and 6000W surge power.
* DC12V/DC24V, AC110V/AC220V, Universal socket, UK socket, US socket are aviable.
* High stability: since it has over voltage, under voltage, overload, overheating, short circuit, reverse and improved protection, stability of the system.

3. Technical Parameter:

Model No.	QW-M3000UPS
Rated power	3000W
Peak power	6000W
Transfer efficiency	≥94%
Input voltage	12Vdc	24Vdc
Input voltage range	10-15Vdc	20-30Vdc
Output voltage	110Vac	220Vac
Output voltage range	110Vac±5% or 220Vac±5%
Voltage display	Digital display
Frequency	50Hz±2% or 60Hz±2%
No load current	<1A	<0.6A
Waveform	Modified Sine Wave
Low voltage alarm(DC)	10.5Vdc	21Vdc
Low voltage protection(DC)	10Vdc	20Vdc
over voltage protection(DC)	15.5Vdc	31Vdc
USB port	yes
UPS transfer	Inverter use city power first, when city power cut off suddently, Inverter transfer to use battery power auto, and the transfer time is ≤10mS
Charge current	20A	10A
over-load Protection	3000W-3100W
Cooling Way	Intelligent Cooling Fans
Fan Start Temperature	≥40±5C
Temperature Protection	70±5C
Packaged	1pair battery cable(red & black) 1charge cable 1english user manual 1neutral packing box
Dimension	Inverter: 438155142mm/7.5kg Carton: 460260172mm/17kg/2pcs
Certifications	CE,Rohs

4. Protection:
1. over load protection
2. over current protection
3. over Voltage protection
4. LOw voltage protection
5. Surge protection
6. Short circuit protection
7. High temperature protection
8. Reverse connection protection
9. Internal fuse protection
10. Leakage Protection

5. Application:
Wind generation, solar panel, home, office, car, board and some place that lack electricity. Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!

Load:
1> Office equipment series: Computers, Printers, Copiers, Scanners, digital camera, etc.
2> Household appliances series: Vacuum cleaners, Fans, Lighting, Electric cutting knife, Television, Sewing machines, Electric fans, AC, etc.
3> Kitchen utensils series: Microwave ovens, Freezers, Coffee machines, Blenders, induction cooker, etc.
4> Electronics Series: TV, VCR, Game consoles, Radios, Power amplifiers, Audio equipment, Monitoring equipment, Terminal equipment, Intelligence platforms, Satellite communications equipment.
5> in-car or on-boat devices series: vehicle, cars, medical ambulance, ships, traffic lights, and etc.
6> Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.

User Guide
Application	Wattage	Inverter Wattage
Application	Wattage	150W	300W	500W	800W	1000W	2000W	3000W	4000W
Mobile phone	5W	√	√	√	√	√	√	√	√
12 inch color television	16W	√	√	√	√	√	√	√	√
Video games console	20W	√	√	√	√	√	√	√	√
Electric light	25W	√	√	√	√	√	√	√	√
Satellite TV receiver	30W	√	√	√	√	√	√	√	√
CD or DVD player	30W	√	√	√	√	√	√	√	√
HiFi stereo 4-Head VCR	40W	√	√	√	√	√	√	√	√
Guitar amplifier (at average volume)	40W	√	√	√	√	√	√	√	√
Stereo system (at average volume)	55W	*	√	√	√	√	√	√	√
Electric fan	55W	√	√	√	√	√	√	√	√
Notebook	60W	√	√	√	√	√	√	√	√
GE 9 inch color TV/radio/cassette	65W	√	√	√	√	√	√	√	√
19 inch color TV	80W	√	√	√	√	√	√	√	√
20 inch VCR combo	110W	√	√	√	√	√	√	√	√
27 inch color TV	170W		√	√	√	√	√	√	√
Stereo amplifier	250W		*	*	√	√	√	√	√
Small-medium printer	350W			*	*	*	√	√	√
Home theater system	400W			*	*	*	√	√	√
Power drill	400W			√	√	√	√	√	√
Rice cooker	500W			√	√	√	√	√	√
Small coffee machine	600W				*	*	√	√	√
Refrigerator	750W				*	*	*	√	√
Small microwave oven	800W				*	*	*	√	√
Toaster	1000W					*	*	√	√
Hair dryer	1000W						√	√	√
Full size microwave oven	1500W						*	*	*
Electric kettle	1800W						√	√	√
Induction cooker	2000W						*	*	*
Washing machine	2500W							*	*
Air conditioner 16000BTU	2500W								*
Air compressor 3HP	2800W								*
Heavy duty power tools	2800W								*
Air conditioner 22400BTU	3500W								*

Note: for those starred models, pure sine wave inverters are preferred.

Product category
Car Power inverter
Car Inverter with USB Port
Pure sine wave invertrer
UPS Pure sine wave inverter with charger
Modify sine wave inverter
UPS power inverter with charger
Solar energy power source
Solar charge controller

Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. and our power inverter serials enjoy better reputation. with reliable quality and stable performance.

Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.

Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.

Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: by sea / air or Customer designated

10. FAQ:

1. What is inverter?
Inverter is an electronic equipment that turn 12v/24v/48v DC into 110v/220v AC.

2. What is the difference between the inverter with UPS + charger and inverter with charger?

A2: UPS inverter: When the mains is on, the current through the inverter power to the load, and at the same time charge the battery. When mains drops, it will automatic transfer and let the battery to supply power for the load: Current flow direction is: Battery - inverter - Load.

with battery without UPS inverter: When the mains is on, the main electricly charge the battery, and the current of the battery through the inverter power to the load, always use battery power, without automatic transfer function.

3. What can a UPS do for me?

A1: Every UPS will supply power to a load (such as a computer, telephone switch or medical equipment) when mains power fails, it may also condition the power and prevent spikes, brownouts, interference and other unwanted problems from reaching the supported equipment.
