Automatic Chain Link Fence Machine
| Supply Ability: | 30 Set/Sets per Month |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
Quick Details
- Type: Welding Wire Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO9001:2008
- Voltage: 380V 50Hz
- Usage: chain link fence
- Brand Name: Secure-Net
- Condition: New
Specifications
Product Description

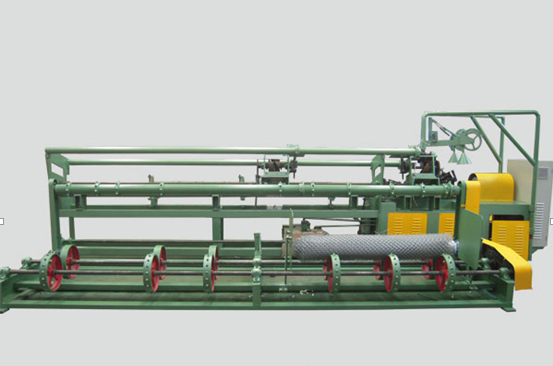

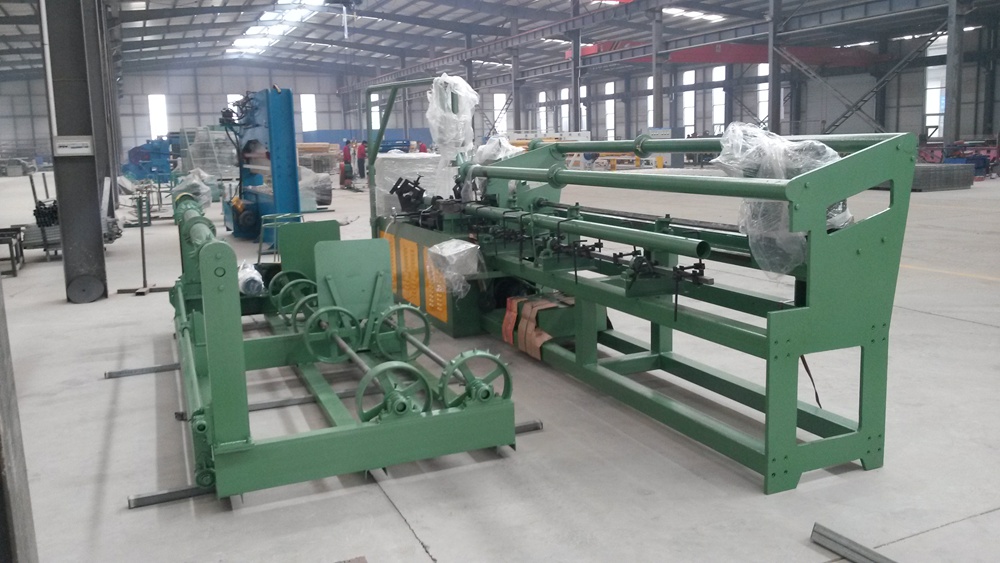

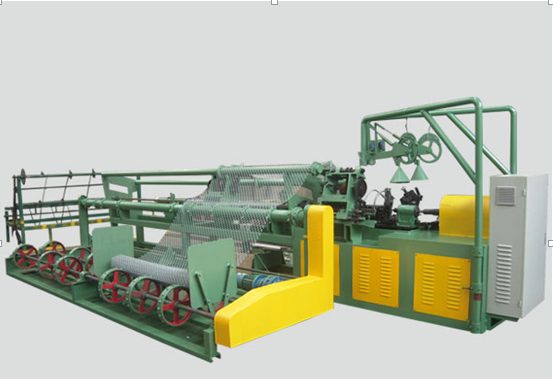

fully automatic chain link fence machine
introduction for the fully automatic chain link fence machine
The chain link fence machine is welded of high quality steel and channel steel with PLC control. Its knife molds has high hardness to ensure the stability and beauty of the network and it has high cutting precision with easy operation. The chain link machine using either galvanized wire or PVC coated wire materials. It can produce both standard and compacted rolls by the adjustment in the coiling speed.
automatic chain link fence machine specification
| Width scope of weaving | 4 m | 2m |
| Diameter of wire | 1.8-4.0 mm (depend on the mesh size) | |
| Mesh Size | 30-80mm | |
| Speed of the axle of shaped knife | 275-1100 rpm (variable speed) | |
| Width of net | 2, 3, 4m | 2m |
| Power consumption | Seven motor, one 3.0KW, one 1.5KW, two 0.75KW, one 0.55KW and two 0.12kw | 5.5kw |
| Output | 210m2-240m2/h | |
| Suitable wire to the machine | Galvanized wire, drawn wire, steel wire, PVC wire | |
| Weight of equipment | 4200 kg | |
| Mesh opening size | 1" -3-1/2" | |
| Outer size | 6700*1430*1800 mm | 4700*1430*1800mm |
| One side or both sides of the end of the net hole is twisted or with burr in edge | ||
