Anyang Forging Press (Group) Machinery Industry Co., Ltd.
China Manufacturer with main products: CNC Hydraulic Die Forging Hammer, Pneumatic Forging Hammer, Hydraulic Open Die Forging Hammer, Hydraulic Open Die Forging Press, Ring Rolling... |
Forging Hammer
| FOB Price: | 15,000.00 - 320,000.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | Tianjin Port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Wooden Case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 yr
- Certification: CE
- Voltage: 380
- Model Number: C41
- Brand Name: Anyang Forging Press
- Condition: New
Specifications

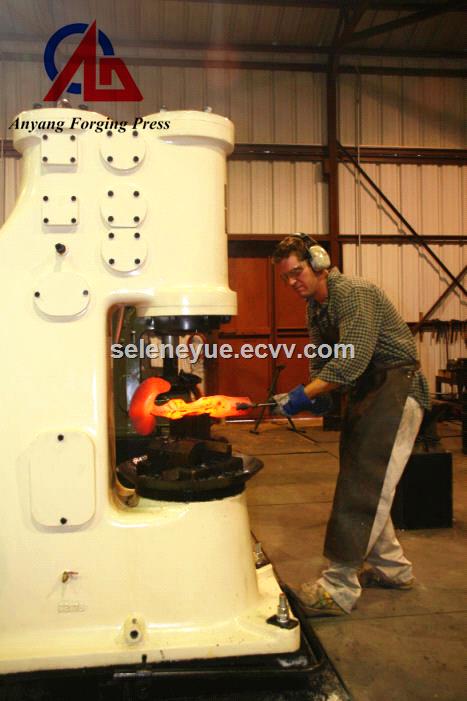

Our pneumatic forging hammer from 9kg to 75kg are widely used by blacksmith for the art forging,from 150kg to 2000kg are widely used in the industrial forging.
Pneumatic forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.
| Model | C41-9 | C41-15 | C41-25 | C41-40 | C41-55 | C41-75 | ||
| Weight of falling parts (kg) | 9 | 15 | 25 | 40 | 55 | 75 | ||
| Maximum hit energy(kj) | 0.09 | 0.16 | 0.27 | 0.53 | 0.7 | 1 | ||
| Diameter of the | 100 | 115 | 165 | 200 | 215 | 210 | ||
| working cylinder(mm) | ||||||||
| Diameter of the | 105 | 125 | 170 | 205 | 220 | 240 | ||
| compressing cylinder(mm) | ||||||||
| Hit number (min-1) | 245 | 245 | 250 | 245 | 230 | 210 | ||
| Height of working area (mm) | 135 | 160 | 240 | 230 | 270 | 300 | ||
| Tup axis to frame front (mm) | 120 | 140 | 200 | 235 | 270 | 280 | ||
| Dimension of top | 60x35 | 70x40 | 100x50 | 116x53 | 135x60 | 145x65 | ||
| die surface(L x W) (mm) | ||||||||
| Dimension of bottom | 60x35 | 70x40 | 100x50 | 116x53 | 135x60 | 145x65 | ||
| die surface(L x W)(mm) | ||||||||
| Maximum round steel can | 30 | 35 | 48 | 68 | 75 | 85 | ||
| be forged(Diameter)(mm) | ||||||||
| Maximum square steel | 25x25 | 30x30 | 40x40 | 52x52 | 60x60 | 65x65 | ||
| can be forged(mm) | ||||||||
| Distance from bottom | 325 | 370 | 410 | 500 | 610 | 750 | ||
| die surface to base(mm) | ||||||||
| Machine floor | 790x550 | 850x500 | 1320x610 | 1265x1470 | 1435x1650 | 1430x1478 | ||
| space(L x W)(mm) | ||||||||
| Machine height | 950 | 980 | 1300 | 1390 | 1590 | 1853 | ||
| (above the ground) (mm) | ||||||||
| Motor | Type | Y90L-4 | Y100L-4 | Y112M-6 | Y132MI-6 | Y132M2-6 | Y160M-6 | |
| Rate power(kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | ||
| Speed(r/min-1) | 1400 | 1400 | 970 | 960 | 960 | 970 | ||
| Total weight of | 250 | 290 | 720 | 860 | 1300 | 2500 | ||
| the hammer (kg) | ||||||||
| Model | C41-150 | C41-250 | C41-400 | C41-560 | C41-750 | C41-1000 | C41-2000 | |
| Weight of | 150 | 250 | 400 | 560 | 750 | 1000 | 2000 | |
| falling parts(kg) | ||||||||
| Maximum hit energy(kj) | 2.5 | 5.6 | 9.5 | 13.7 | 19 | 27 | 54 | |
| Hit number(min-1) | 180 | 140 | 120 | 115 | 105 | 95 | 80 | |
| Heigh of | 370 | 450 | 530 | 600 | 670 | 800 | 1000 | |
| working area(mm) | ||||||||
| Tup axis to | 350 | 420 | 520 | 550 | 750 | 770 | 950 | |
| frame front(mm) | ||||||||
| Dimension of top | 200x85 | 220x100 | 250x120 | 300x140 | 330x160 | 365x180 | 400x300 | |
| die surface(L x W) (mm) | ||||||||
| Dimension of bottom | 200x85 | 220x100 | 250x120 | 300x140 | 330x160 | 365x180 | 400x300 | |
| die surface(L x W) (mm) | ||||||||
| Forges | Square(mmxmm) | 130x130 | 145x145 | 220x220 | 270x270 | 270x270 | 290x290 | 350x350 |
| Round(mm) | Φ145 | Φ175 | Φ240 | Φ280 | Φ300 | Φ320 | Φ400 | |
| Motor | Type | Y180M-4-B3 | Y180L-4-B3 | Y200L-4-B3 | Y280S-6-B3 | Y280M-6-B3 | Y315S-6-B3 | Y315L2-6-B3 |
| Power(kw) | 18.5 | 22 | 30 | 45 | 55 | 75 | 132 | |
| Weight | Hammer(kg) | 3260 | 5000 | 8000 | 9800 | 17000 | 20000 | 48000 |
| Anvil block(kg) | 1500 | 2500 | 4800 | 6720 | 9000 | 13000 | 24000 | |
| Outside Size | 2390x1085 | 2639x1155 | 2785x1400 | 3464x1500 | 3905x1370 | 4125x1500 | 4200x2300 | |
| x2150 | x2540 | x2884 | x3157 | x3175 | x3770 | x4390 | ||
Features:
1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with its self-contained cylinder,require no ancillary power raising plant.
2. The Pneumatic forging hammer is equipped with a self-priming lubricating oil pump, during operating, it can realize the automatic lubrication.
3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.
