Acore Filtration Co., Ltd.
China Manufacturer with main products: Oil Filtration Machine, Transformer Oil Filtration Machine, Oil Treatment Plant, Transformer Oil Purification System, Vacuum Oil Purifier,... |

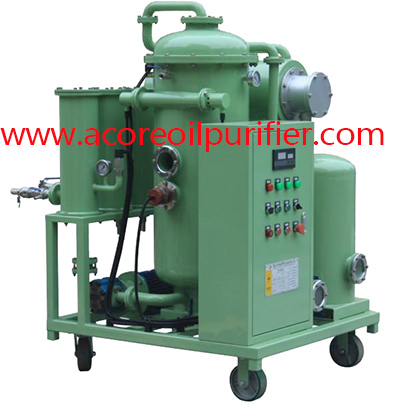

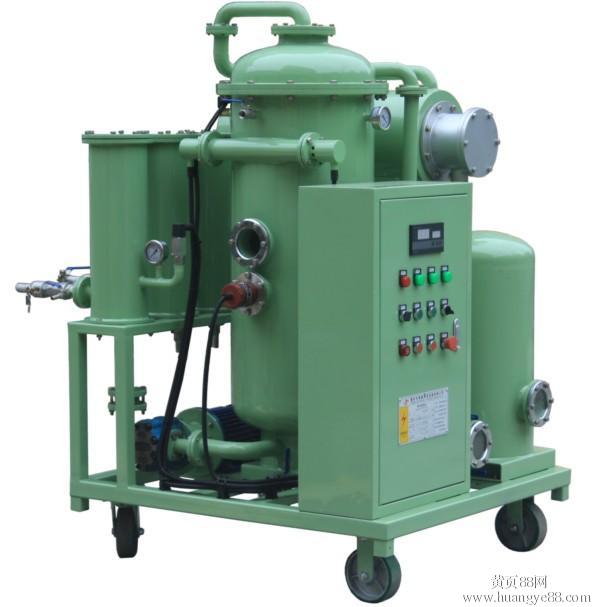

Hydraulic Oil Filtration Systems
| Supply Ability: | 100 Set(s) per Year |
|---|---|
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: 500
- Brand Name: Acore
- Condition: New
- Warranty: 1 year
- Dimension(L*W*H): option
- Power(W): 30-150kw
- Model Number: VHF
- Structure: Vacuum
- Type: Return Filter
Specifications
Introduction: Model VHF-10 VHF-20 VHF-30 VHF-50 VHF-100 VHF-150 VHF-200 VHF-250 VHF-300 Capacity(L/min) 10 20 30 50 100 150 200 250 300 Working vacuum -0.06-0.095 Mpa Working pressure 0.4 Mpa Temperature
Range 20-80 Water content 20 ppm Gas content 0.1% Demulsifying
Value 8 min(GB/F7035) Cleanness NAS 6 grade Filtering precision 1 micron Continuous work 100 hr No failure
Running 5000 hr Power supply 380V, 50HZ, 3PH ( or Customized ) Working
Noise 65 dB Heating power (kw) 24 24 30 35 60 90 120 140 150 Total power (kw) 27 27 33 40 65 100 130 150 165 Inlet/outlet(mm) 25 25 32 32 48 50 58 62 65 Weight (kg) 300 350 400 500 800 1000 1200 1300 1350 Dimension (mm) L 1100 1150 1200 1300 1500 1600 1700 1900 2000 W 800 800 850 950 1000 1150 1250 1300 1350 H 1200 1250 1300 1350 1500 1600 1800 1900 2000
VHF-series hydraulic oil filtration systems is designed and produced for cleaning of used industrial oil, such as hydraulic oil, gear oil, compressor oil etc., It Combined latest Coalescer and vacuum technology to quickly remove large amounts of free water and trace moisture from lube oil. Meanwhile, the high precise filter elements of VHF hydraulic oil filtration systems can make can remove 95% particles, which can reach ISO 15/13/10 Cleanliness Level. the waste oil can be reused in industrial equipment after filtration by VHF lube oil filtration systems, which can save Maintenance cost and improve the performance of your industrial equipment.
Technical Specification:
