Home >Products Catalog > Micro beer brew equipment > 1000L Stainless Steel Two Vessel Beer Brewery Plant

1000L Stainless Steel Two Vessel Beer Brewery Plant

Supply Ability:	15 Unit(s) per Month
Shipping:	by sea
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Wooden/Veneer case for LCL Plastic film wrapped and iron frame fixing for FCL

Quick Details

Processing: Fermenting Equipment
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 5 years
Processing: Mashing/ Fermenting/ Manturing
Brand Name: Tiantai / OEM
Condition: New
Certification: CE/UL/ISO
Weight: Depends on different sizes
Dimension(L*W*H): Depends on different sizes
Power(W): 70KW or depends on sizes
Voltage: 3phase/380(220, 415,440)v/50 (60)Hz
Processing Types: Alcohol
Model Number: 1000L
Appearance: Stainless steel or copper cladding
Thickness of Tanks: 3mm for interior shell/2mm for exterior shell
Heating: Electric/Steam/Direct fired
Heat Insulation: Polyurethane or Rockwool with Thickness=80mm
Controlling System: Temperature, Pressure auto control
Accessories: Available
Area Request: 20-100M2 depends on size
Inner Polishing Precision: 0.4 Micrometer
Application: two vessel beer brewery plant

Specifications

Brewing is the production of beerthrough steeping a starch source (commonly cereal grains) in water and

Then fermenting with yeast. It is done in a breweryby a brewer, and the brewing industryis part of most

Western economies.

Product Description

the two vessel beer brewery plant is generally adopted by restaurant, hotel, bar, brewpub, barbecue or

Some other public house.

Besides it is also good choice for household usage of beer brewing or labratory use equipment.

the apperance of the Mash tun &fermenter tank can be made into red copper kinds,paractical and a

Kind of decoration;

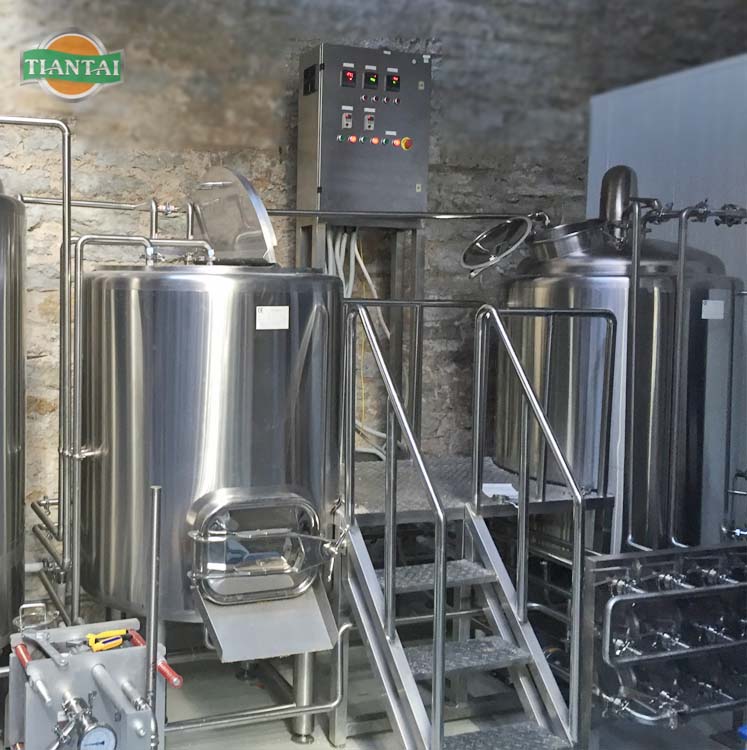

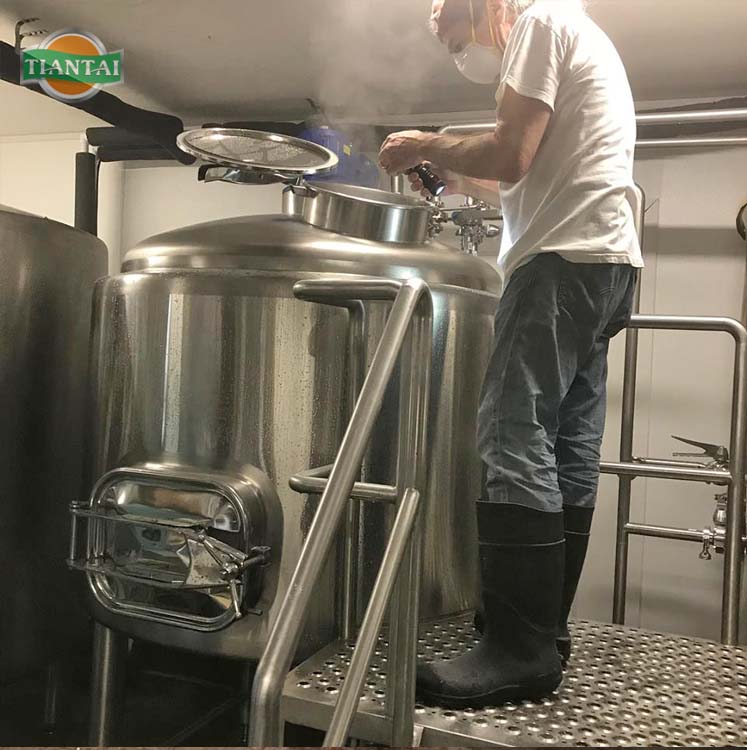

1000L stainless steel two vessel beer brewery plant

1000L stainless steel two vessel beer brewery plant

Specifications:

Output/Brew	1000 Liter
Brews/Week	6~12
Output/Week	60~120HL
Area Request	>70M2
Brewmaster	1
Material	Interior Shell: SUS304 TH=3mm
Material	Exterior Shell:SUS304 TH=2mm /red copper
Heating Source	Electric/Steam /Direct fire for optional
Electric Supply	3phase/380(220, 415,440)v/50 (60)Hz
Electric Supply	Single Phase/ 220(110, 240)v/50(60)Hz

We have different capacity for the beer brewery plant .

the capacity is range from 100L/brew to 10000L/brew.

for home brew/lab/test/pilot/-------------------------------------------------------------50l,100l.

for bar/brewpub/hotel------------------------------------200l, 300l, 500l, 600l, 800l, 1000l.

for mini/micro brewery-----------------1000l, 1200l, 1500l, 2000l, 2500l, 3000l, 3500l.

for commerical brewery factory----------------------------------------3500l, 5000l, 10000l.

Components:

There are total six main parts of our red copper pils beer brewery plant. The Rolling miller, the mashing

System, the fermenting system, Glycol chilling system, Controlling system and CIP cleaning system.

+ two vessel brewhouse/Mashing system:

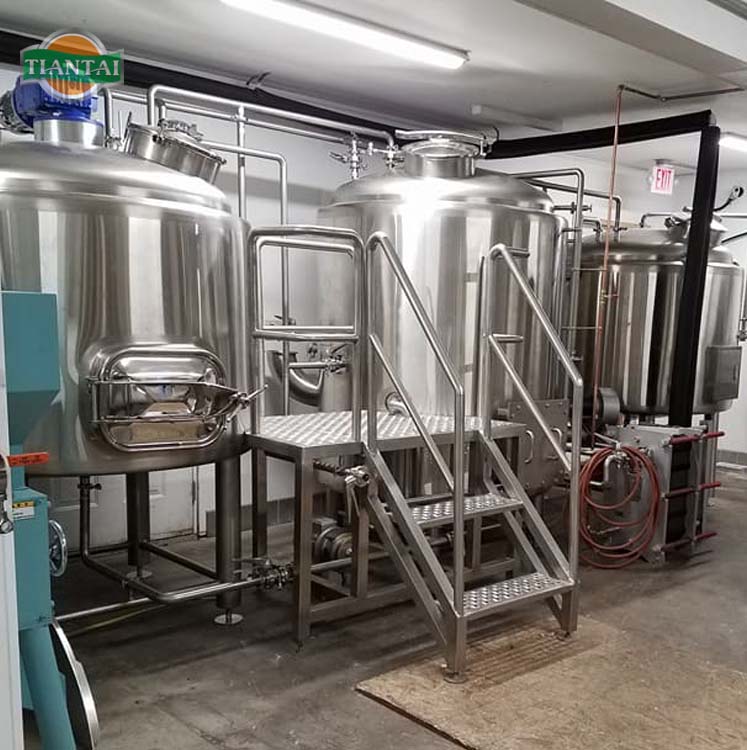

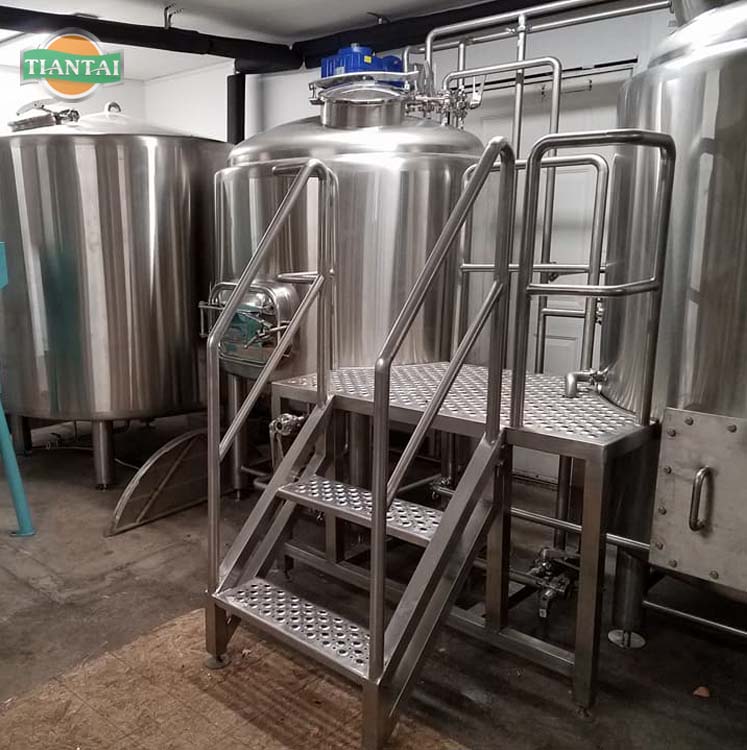

for the 1000L beer brewery plant, it can be Mash/Lauter Tun + Kettle/Whirlpool Tun; Also can be

Mash/Lauter/Whirlpool Tun + Kettle (as showed in the photo)

+ Cylindrical Conical fermenting tank:

Interior shell: 304 stainless steel, thickness 3mm

Exterior shell: 304 stainless steel, thickness 2mm

Interior and exterior finish bright polish to 0.6~0.8, hygiene surface

60 degree cone bottom, other angles can be specified during the design process

Combined drain extensions and beer port in cone are standard

25% headspace, unless a different volume is requested

+ Cooling Unit

Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

Efficiency chillers or refrigerators with Freon to supply cooling energy

Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

+ Controlling Unit

Electrical controlling cabinet with temperature, on-off controlling for brewhouse

Electrical controlling cabinet with temperature, on-off controlling for cooling parts

Temperature controller, thermocouple, solenoid valves etc are included

+ Other Facilities

Portable CIP system for cleaning the tanks

Steam boiler for brewhouse heating

Water treatment for brew water

Oil free air compressor

FAQ

When planning your brewery project, a lot of questions come to mind. TBE assigns you a project

Manager that will assist you with your project from start to finish and will facilitate the process by being

Your sole contact.

Q: What utilities do I need for a Microbrewery?

Typically water, electricity and drains are needed.
in general 2 and 3 phase electricity is needed and can be 110/220/380/400/415/440 at 50/60Hz.

the size of the water connection is determined by the size of the brewery but for most projects

5.000 liter of water per hour with a pressure of 3 bar is sufficient.

for your steam boiler a natural gas connection or a tank with light oil will be needed.

Because of the temperature, steel pipe drains are preferred in a brewery and sufficient drains are always handy.

for brewery project we provide our customers with detailed requirement on the utilities and their respective location.

Q: Do I need to be a brewer in order to start a brewery?

Yes. It is very helpful to have a brew master who is experienced in brewing. TBE can also train you or one

of your employees to learn how to brew. We will teach you all aspects of brewing, familiarize you with

Your brewery equipment, help you with recipes, quality control etc. TBE offers a wide variety of services

Such as installation, training, after sales services etc.

Q: how long does it take to deliver a brewery?

Typically it takes about 1-3 months to manufacture a brewery. Depending on the size of the brewery,

the amount of custom designed equipment, our general workload and the way of shipping,this period can

Be shorter or longer.

Q: how long does the pils beer brewery plant last?

Given the fact that most elements in a brewery are made of stainless steel, the longevity of a brewery is

High. Given proper maintenance and the careful use of chemicals, a brewery can be used intensively for about 20 to 30 years. for some elements such as fillers and labelers with a lot of moving parts a shorter lifespan should be considered and more maintenance will be necessary, depending on the use.
