OEM Fiber KVM extenders,KVM switches for HDMI&USB&IR signals over 1fiber
| FOB Price: | 220.00 - 280.00 USD/Pair |
|---|---|
| Supply Ability: | 100,000 Pair per Month |
| Shipping: | 4~7 working days |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1pair power adaptor,1 optic transmitter,1 optic receiver,1User's Manual |
Quick Details
- Model Number: JM-KVM
- Brand Name: JiaMinAVTech
- HDMI version: HDMI1.1 1.2 1.3
- I/O connector: HDMI / DVI
- HDMI resolution: 1080p/1080i/720p/720i/576p/576i/480p/480i
- dimension: 157mmx81mmx29mm
- Net weight: 0.75KG
- warranty: 2years
Specifications
Fiber KVM extenders also named as KVM fiber switches,which transmit the HDMI / DVI signal, USB keyboard and mouse signals and infrared remote control signals from a DVR or PC to the distal end via a single-mode or multimode fiber, which can work stability at 75 ℃ the high temperature .
This product supports: 1920 × 1080 @ 60Hz DVI / HDMI high-definition video and audio in real-time transmission, the maximum transmission distance of up to 20 to 100 km (single mode fiber) / 2 km (multimode fiber)
Fiber KVM extenders Applications:
Products can be used in video conferencing, multimedia information publishing, government, health care system, trade shows, multimedia hall, security monitoring, public utilities and other fields
Features
1, support HD resolution 1920 × 1080 @ 60Hz.
2, support HDMI / DVI interface.
3, support USB mouse, keyboard and remote infrared remote control.
4, transmission distance 20 to 100 km (single mode fiber) / 2 km (multimode fiber).
5,Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
Product specification:
|
Video |
I/O connector | HDMI / DVI |
| HDMI version | HDMI1.1 1.2 1.3 | |
| HDCP | HDCP1.2 | |
| HDMI resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i | |
| Video color format | 24bit/deep color 30bit/deep color 36bit | |
| Audio format | DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD | |
| TMDS | 0.5-1.5Vp-p(TTL) | |
| DDC | 5Vp-p(TTL) | |
| Input cable length | ≤20m AWG26 HDMI 1.3 standard cable | |
| Output cable length | ≤20m AWG26 HDMI 1.3 standard cable | |
| Optical | Connector | SM/MM SC/FC/ST |
| Wave length | 1310nm/1550nm | |
| Physical | Size (L× W ×H) | 157mmx81mmx29mm |
| Case | Aluminum | |
| Color | Black | |
| N.W. | 0.75Kg | |
| Power | Voltage | 5~12V DC |
| sender power consumption | 3.5W | |
| receiver power consumption | 3.5W | |
| Environment | Working temperature | -20℃-70℃ |
| Storage temperature | -40-85℃ | |
| Humidity | 0-95% (non-condensing) |
IR(Infrared remote control):
| Frequency | 38KHz |
| Wavelength | 940nm |
| TX Connector | 3.5mmUnbalanced stereo audio block, 2PIN |
| RX Connector | 3.5mmUnbalanced stereo audio block, 3PIN |
USB interface:
| TX | 1,connect to DVR / PC |
| RX | 2, connect to Cable keyboard or mouse |

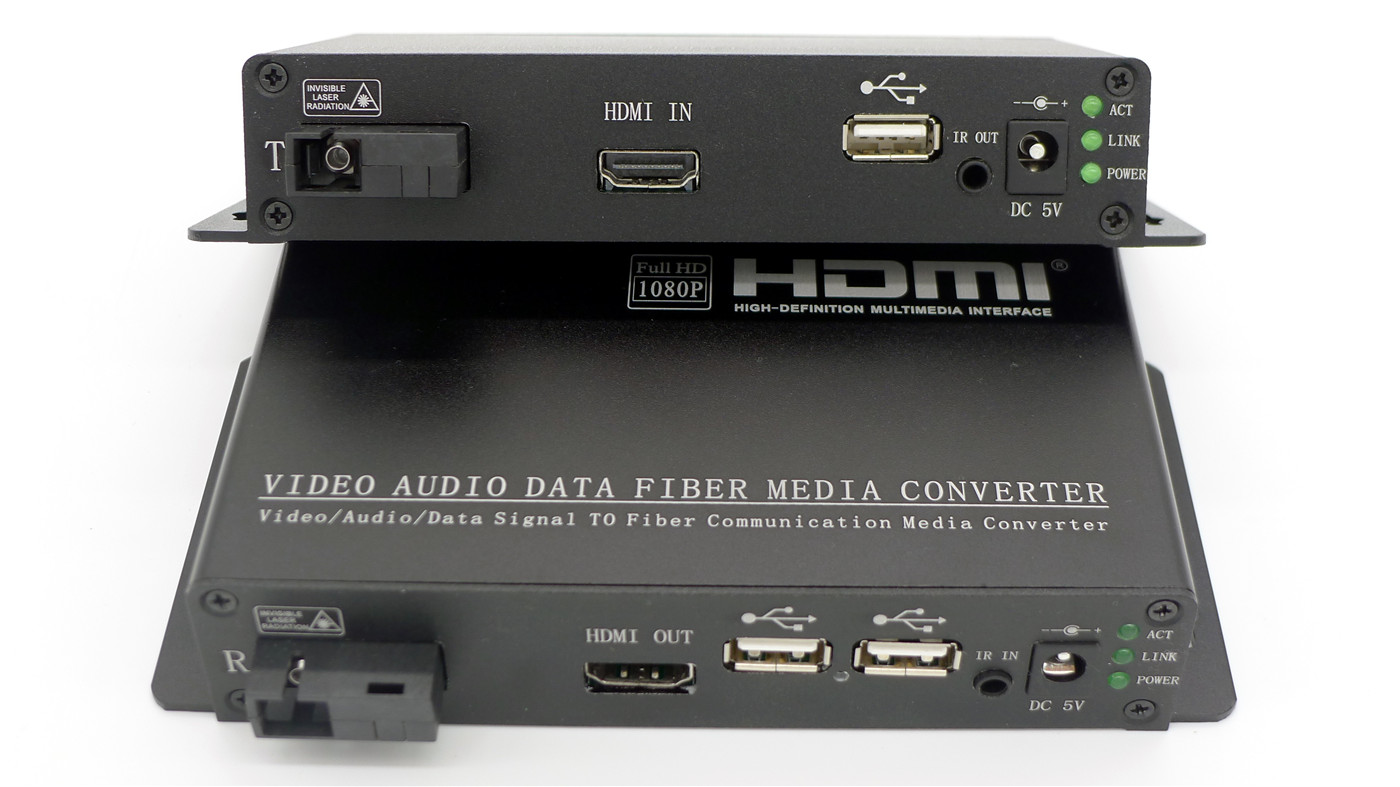

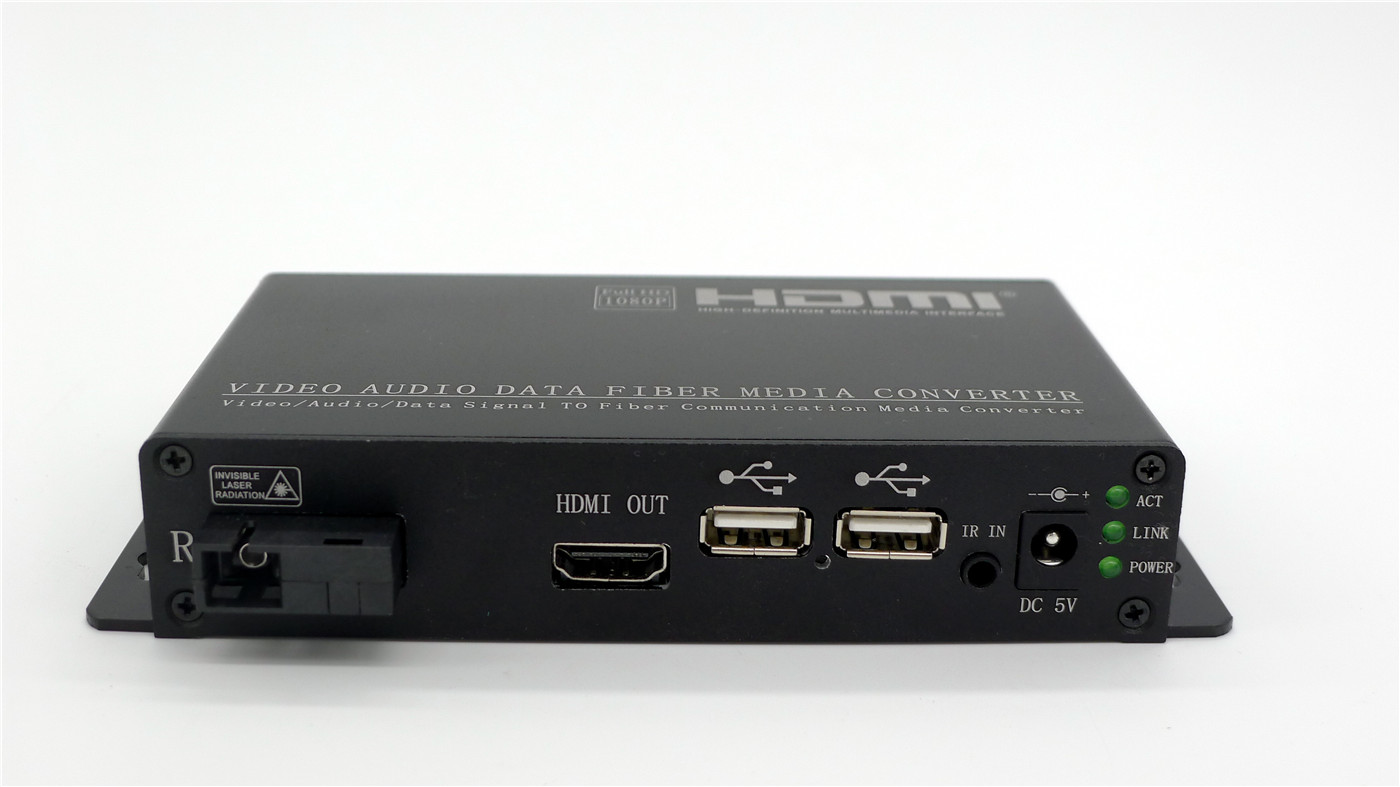

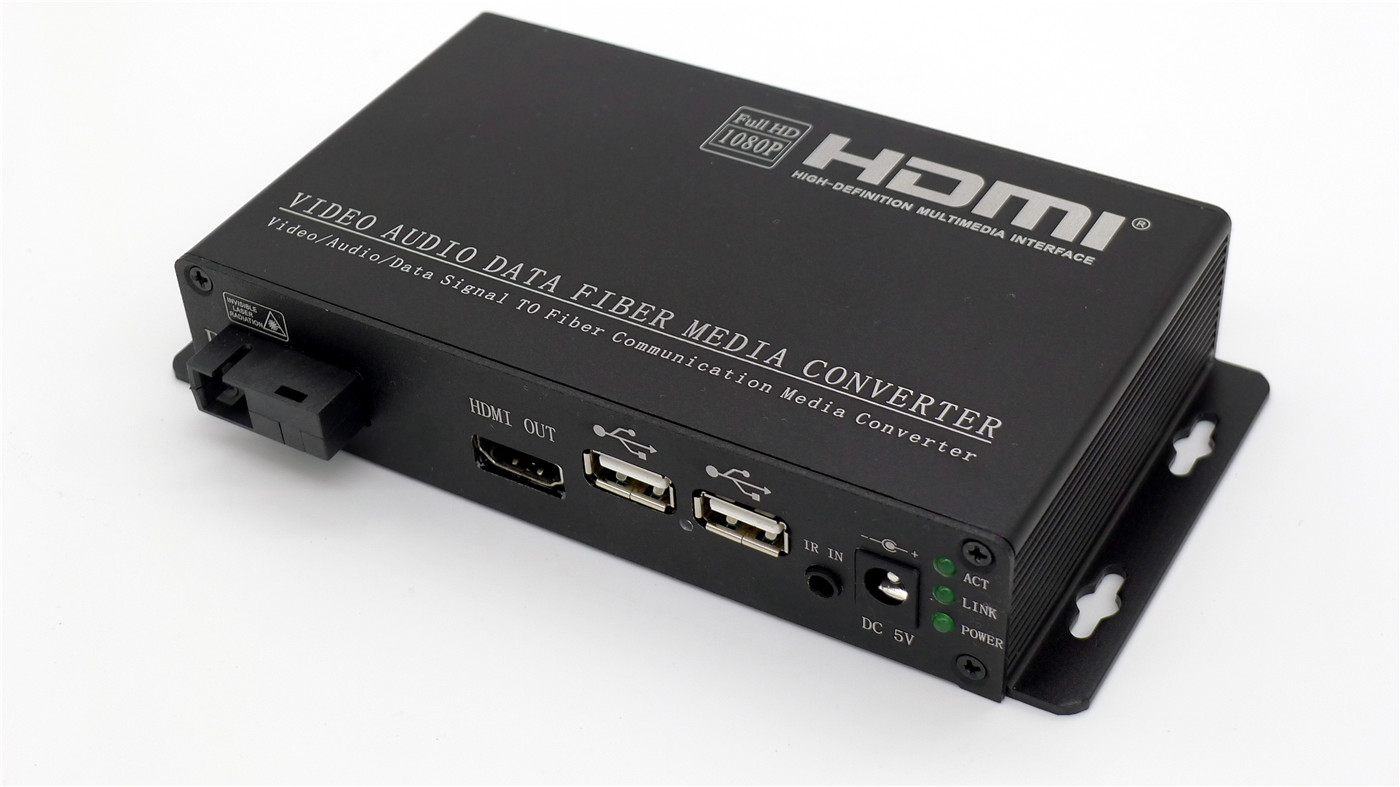

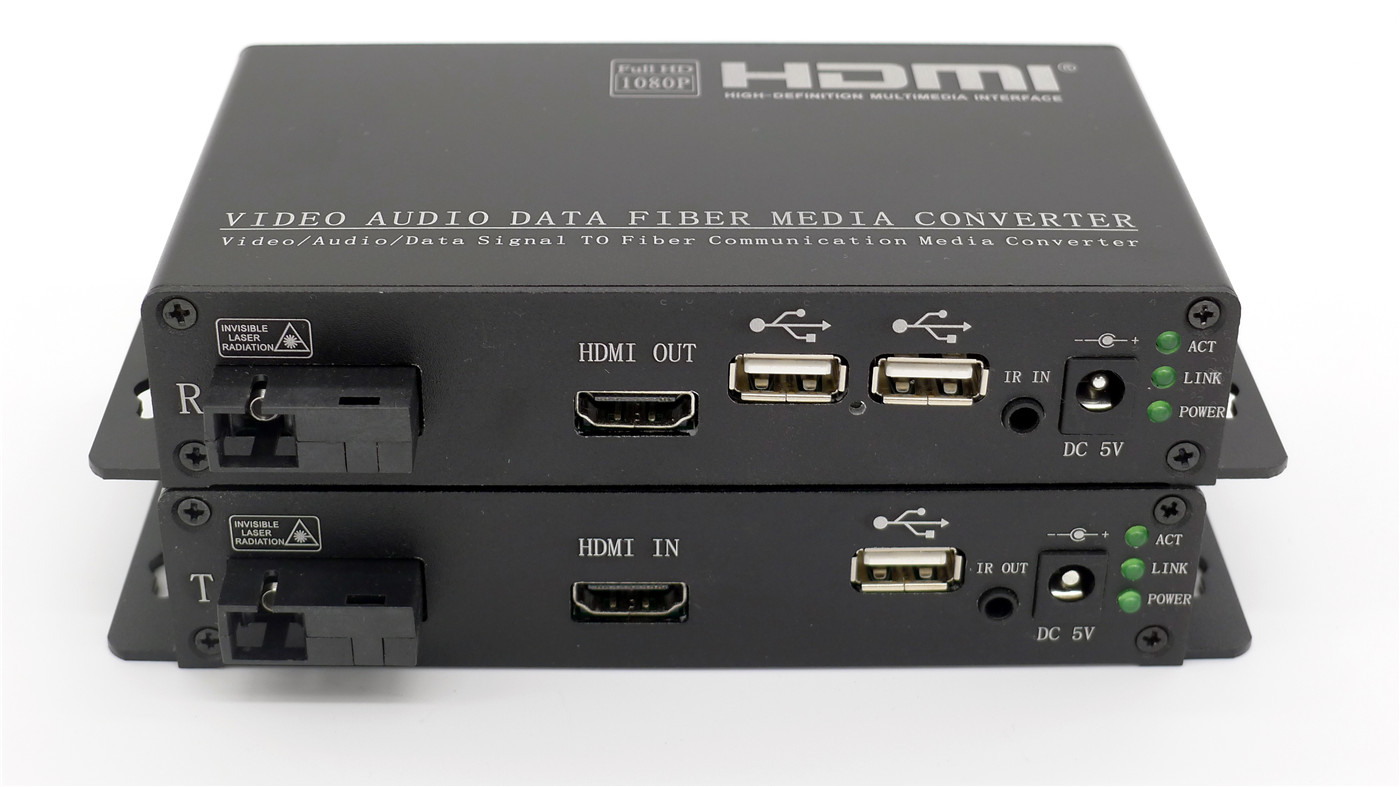

Panel View
Application1:
Application2:
In this application,you can control the system at the second monitoring room in real time although the second monitoring room is far away(20~100KM)
