Home >Products Catalog > Ship Spek Anchor/Marine Hall Anchor/Delta Flipper Anchor/AC-14 Hhp Anchor

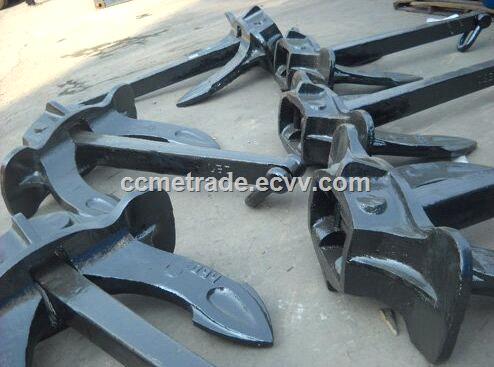

Ship Spek Anchor/Marine Hall Anchor/Delta Flipper Anchor/AC-14 Hhp Anchor

FOB Price:	500.00 - 5,000.00 USD/Piece
Supply Ability:	100 Piece/Pieces per Month
Shipping:	by sea shipping
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	Standard type

Quick Details

Weight (kg): 3001 - 6000kg
Design: Hall Anchor
Material: Steel
Weight (Kg): 56kgs~25000kgs
Surface: Black Bitumen Paint
Process: Casted/Welded

Specifications

Our main products include: stud and studless anchor chain, offshore mooring chain, yacht anchor chain, lashing chain,and other inductry chains.
Anchor chain accessories like Kenter Shackles, Joining Shackles, Anchor Shackles (End Shackles), Swivel Adapters are also available.
Anchors are AC-14 Anchor,Hall Anchor, Spek Anchor, Pool Anchor, Delta Anchor, Stockless Anchor, Navy Anchor, Four Fluke Anchor, Danforth Anchor etc.

Certificate: ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS etc.

2.Product description:

AC-14 HIGH HOLDING POWER ANCHOR

1.Surface: black bitumen paint
2.Usage:Ship anchorage
3 Material: High tensile casting steel
3. Standard weight: 56kgs~25000kgs
4. Certification:ABS, BV, CCS, DNV, NK, GL, LR, RMRS, KR, RINA etc.
5. We have some anchors in stock and it will be possible to deliver them within shorter time if necessary.

Norinal Weight	Dimensions (mm)
kg	A	B	C	D	E	F	G	J
56	612	298	376	555	109	170	115	24
100	745	364	458	675	133	200	130	28
180	909	442	558	822	162	252	160	36
300	1075	524	660	975	194	298	192	45
428	1213	590	745	1098	216	336	215	48
675	1412	690	868	1278	250	390	255	60
765	1470	718	906	1335	263	408	255	60
910	1560	760	957	1410	273	430	280	62
1080	1650	805	1014	1495	294	455	280	62
1305	1760	858	1028	1595	315	485	310	68
1440	1818	885	1118	1645	324	505	310	68
1710	1925	940	1184	1745	343	532	310	68
2100	2065	1005	1270	1865	367	570	385	82
2475	2178	1062	1340	1970	385	602	385	82
2794	2265	1105	1393	2055	404	625	410	90
3550	2455	1198	1508	2225	438	680	410	90
4500	2655	1295	1632	2405	473	735	450	100
5610	2858	1396	1758	2590	509	790	500	110
6000	2922	1426	1796	2645	521	810	500	110
6900	3062	1496	1884	2775	546	848	540	117
7800	3190	1558	1962	2890	569	884	580	121
8300	3256	1590	2002	2950	581	902	600	130
9300	3382	1652	2080	3064	603	936	630	135
9900	3452	1686	2124	3128	616	956	640	140
9900	3523	1720	2166	3192	628	976	640	140
11100	3589	1752	2207	3252	637	994	660	145
11700	3650	1782	2245	3308	648	1010	680	150
12300	3712	1812	2283	3364	660	1028	700	155
12900	3772	1842	2320	3418	670	1044	700	155
13500	3830	1870	2355	3470	679	1060	700	155
14100	3885	1896	2389	3520	689	1076	730	160
14700	3940	1924	2423	3570	700	1090	730	160
15400	4002	1954	2461	3626	710	1108	730	160
16100	4062	1982	2498	3680	721	1125	770	170
16900	4128	2016	2538	3740	721	1144	770	170
17800	4200	2050	2583	3806	725	1162	800	180
18800	4277	2088	2630	3875	729	1185	800	180
20000	4350	2101	2694	3945	729	1185	820	199
25000	5046	2437	3125	4577	846	1375	848	230
