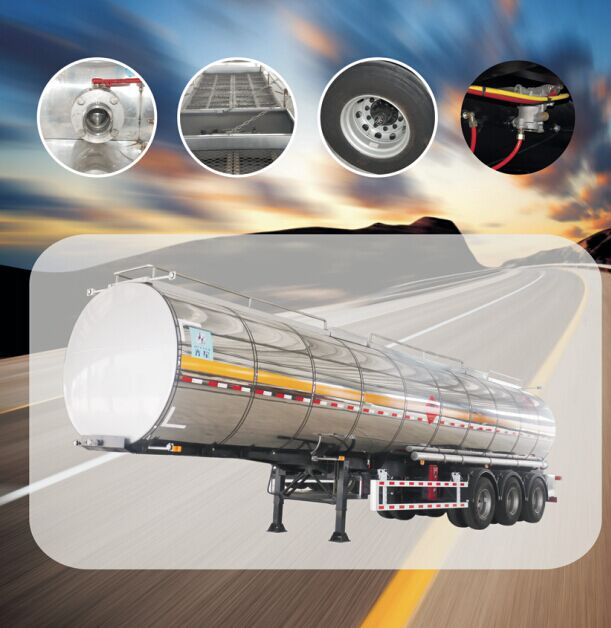

Two axle 36000 liters Stainless Steel Tank Trailer

General Information

Name

Unit

Specification model

Loading medium

Chemical

Volume

m3

36

External  dimension(LxWxH)

mm

9880*2500*3750

Curb weight

kg

7000

Front/Rear overhang

mm

1650/1440

wheelbase

mm

6500+1350+1350

Wheel track

mm

2040

Landing gear location(from the king pin)

mm

2420

Vehicle Weight(KG)

Vehicle maximum GVW

kg

40000

Vehicle curb weight

kg

7000

Vehicle design loading weight

kg

35000

Unit volume payload

t/m3

0.679

Fifth wheel rated load weight

kg

30000

Fifth wheel full load weight

kg

16000

Maximum axle payload

kg

24000

Tank Body

Name

Unit

Specification model

Volume

m3

36

Compartments

pcs

3

comparment volume

m3

10.48+10.48+15.04

Shape

Ellipses

Material

Tank body

Q345B

　End plate

　Washboard

Running gear

Name

Brand

Specification model

Landing gear

JOST

C200T

King pin

JOST

KZ1412 90# King pin

axle

BPW

BPW 13T

suspension

BPW

HSMSLM12010ECO  2 axles single tire, air suspension

tire

Bridgestone

425/65R-22.5

rim

Alcoa

13.00-22.5

ABS assy

WABCO

4S-2M 24V 400 500 088

Tank accessories and fittings

Manhole

1. Three manholes with 16" OPW DN400 manhole cover, each comparment for one manhole;
2. Built-in thread type breather valve in the manhole;
3. Equipped with auxiliary three openings: for mounting vapor recovery vavle, anti overflow probe, dip hatch and so on.

Discharge system

1. Bottom vavle: Three DN100(4") OPW EUR0100-1S pneumatic bottom valve on the bottom of the tanker, each comparment for one foot vavle;
2. Discharge pipe line: Three DN100(4") aluminum alloy pipe line extended to the middle right side of tank operation box from each bottom valve.
3. All outlets are in the aluminum alloy operation box.
4. Discharge vavle: Three DN100(4") OPW 891BA-NP, connected with the aluminum alloy discharge pipe line flange in the operation box, to be fitted at a height of between 700mm and 850mm above the ground; Every discharge vavle equipped with one 8-plane rotary oil indicator;
5. Discharge hose: NBR

Vapor recovery system:

1. Three DN80(3'') vapor recovery nozzle on the left shoulder of top tank, corresponding to the location of manhole, connected the vapor recovery vavle of the manhole with hose;
2. One DN100(4'') aluminum alloy non-welding pipe along with tank extended to the middle right side of tank operation box from left shoulder;
3. One OPW T196SV vapor recovery valve; one OPW 633LVB vapor recovery quick joint(equipped with OPW 1711T plug)
4. One OPW T180SV vapor recovery valve by-pass on left shoulder of top tank.

Axle and suspension

BPW 12000KG drum brake axle and air suspension, three axles, front axle with lifting function.

Braking system

1. Braking hose: TIEMA 3/8" ; 　　　　　　　　　　　　　　　　　2. Brake chamber: China dongxing brand, 4pcs T3030EB3 and 2pcs T30EB1.                                                                                                   3. Air storage tank: China brand.                                                             4. ABS: WABCO, 4S-2M 24V 400 500 088

Painting

Shining Aluminum  on the surface

Light system

1. Harness: vapor anti-explosion overall harness;
2. Side marker lamps: amber color, 5pcs for each side;
3. Clearance lamps:front clearance lamp 2pcs, rear clearance lamp 2pcs;
4. Front position lamp 2pcs; rear position lamp 2pcs.
5. Tail lamp: braking lamp, reversing lamp, rear turn signal lamp, each kind lamp 2pcs, red/ amber color;
6. Warning triangle: 2pcs;
7. Rear-registration-plate lamp: 1pcs

API valve and joint

1. API reducer union 3pcs: OPW 876-AL1030;
2. API joint dust cap 3pcs: OPW 875C;
3. API discharge valve 3pcs: OPW 891BA-NP.

Accessories

1. Ladder: a detachable ladder is equipped in the rear of the tanker; made of aluminum alloy;
2. Handrail: aluminum alloy fixed on the top tank , it can be used to rise and down,and controlled by cylinder.
3. Fire extinguisher:2pcs,8kg for each one;
4. Fire extinguisher box: two boxes are fixed on the left and right side of the trailer, made of plastic.
5. Fender;
6. Spare tire carrier: 1pcs, equipped on the left side of frame, made of steel;
7. Tool Box: 1pcs, made of aluminum alloy;
8. Side of the fence: can be used to rise and down,made of aluminum alloy;
9. Drain-pipe: 2pcs, PVC, equipped on the rear of tank.
