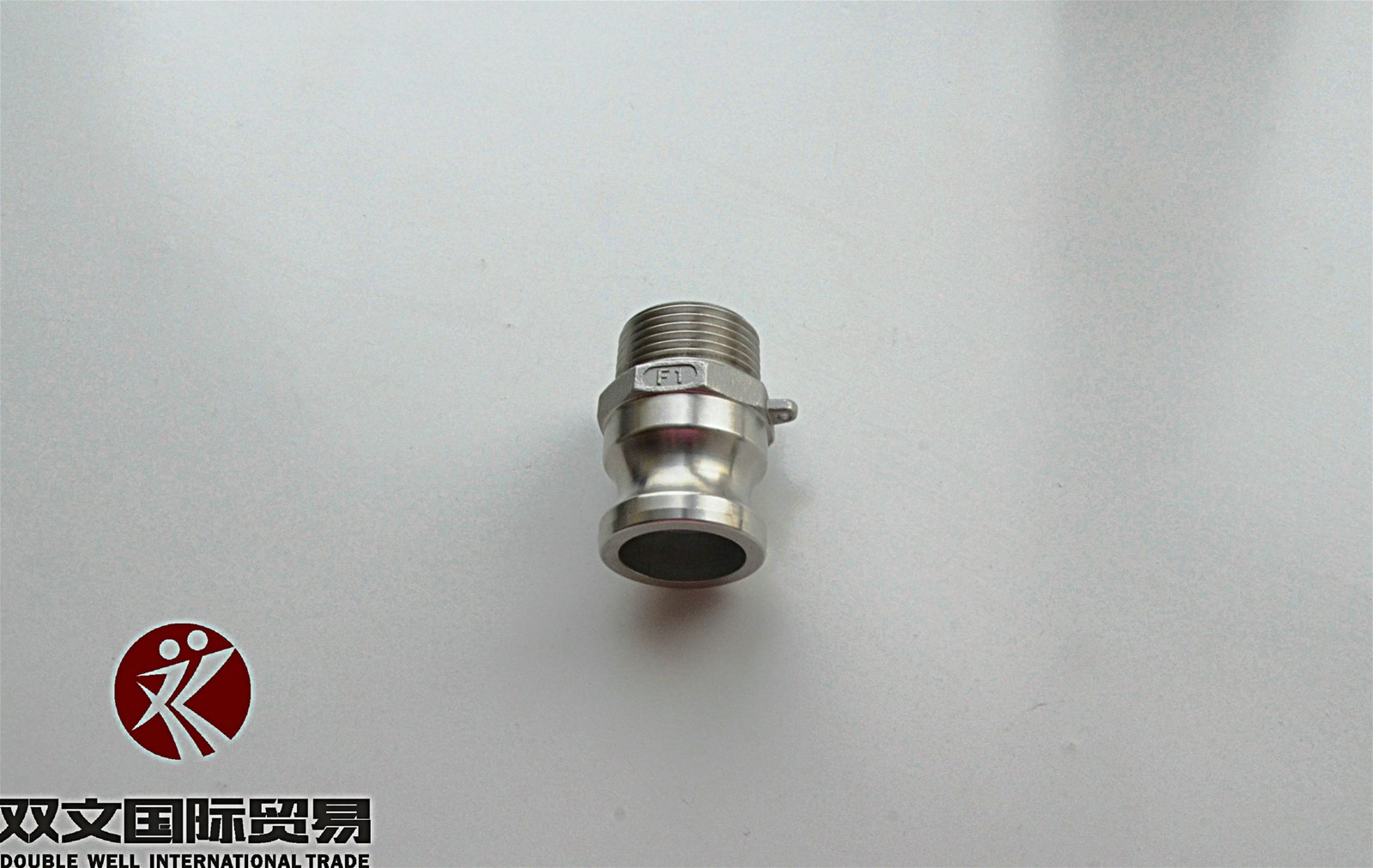

China SUPPLY SS camlock coupling typeF

Specifications

Stainless steel camlock coupling
1.  SS camlock couplings, cam and groove quick couplings, cam lock couplings, camlock fittings, quick camlock coupling, stainless steel 304/316 camlock couplings, hot sale stainless steel Self-locking Couplers camlock coupling, high quality stainless steel camlock couplings,quick cam and groove adapters ,quick camlock and groove fittings.
2. Stainless steel camlock fittings also used with salt water, water waste and many chemicals & can also be used with hydraulic oil and coolants.
3. quick coupling features: Excellent corrosive resistance;high temperature ability; Long life expectancy;
Wide working temperature.
Working pressure: 3/4"-2" 250PSI(17.6bar),
                  3"-4" 200PSI(14.8bar),
                  21/2" 225PSI(15.8bar),
                  6" 150PSI(10.5bar)
Temperature range: -150F to +500F
4.Material: stainless steel 316, stainless steel 304
Sizes: 1/2" to 8"
Spce: A B C D E F DC DP FC FA
Thread: NPT, BSPP, BSPT
SS camlock coupling workmanship: precision casting or forged
Pins, Rings and Safety clip material: Carbon steel plated or stainless steel
Handle material: Brass or stainless steel
Seal: NBR, BUNA, EPDM, VITON
 groove coupling standard: A-A-59326 (previously called MIL-C-27487) or DIN 2828
5.We aslo sell hose couplings ( Camlock, Sotrz, Bauer Guillenmin couplings ), stainless pipe fittings, valves, flanges, sanitary fittings and valves and so on.
6. Packing :polybag inside, cartons outside,or according to customers requirements
   Delivery time:30days on we signed order.
7. Terms of payment: T/T, L/C,30% deposit.  Delivery Port: FOB Qingdao.
