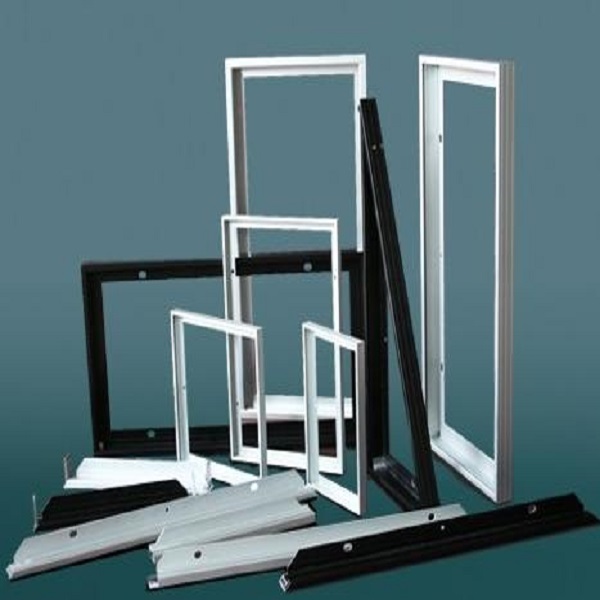

aluminum windows frame Aluminum Alloy

Aluminum Alloy

6063 / 6061 / 6463 / 6005 / 6105 more upon request

Tempers

T4: solution heat-treated and naturally aged

T5: cooled from an elevated temperature and artificially aged

T6: solution heat-treated and artificially aged

Extrusion Capacity

Press Sizes Diameter-Tonnages:5  in / 130mm-660 tons,

                                                                 10in/ 270mm-1800 tons,

                                                                 20in/ 500mm-6000 tons

Hollow Profile Circle Maximum Size * ( CCD ):  5ft(1520mm)

Wall MinimumThickness:  0.028in(0.7mm ) , depends on the shape

Profile Maximum Weight: 40 lb / ft (60kg/m)

Tongue Ratio: we' ve extruded profiles with tongue ratios nearing

                            5:1 for heat sinks and other channel profiles

*(CCD=circumscribing circle size)

Standard Dies Shape

Angles(equal),            Angles(unequal),                     C shapes,

Caps,                            Carpet bar,                                 Channels,

Corners,                       Coves,                                        Dividers,

F shapes,                     H shapes,                                  T shapes,

Tracks,                         Tubes

Fabrication

Cutting                             Countersinking,                      Punching,

Notching,                        Bending,                                    Deburring,

Drilling,                            Tapping,                                     Milling,

Forming,                         Mitre cutting,                             CNC machining

Finish

Mill finish,

Sand Blasting,

Anodizing (Anodizing thickness: 8-25um),

Wood grain,

Electrophoresis painting,

Powder coating(Powder coating thickness: 60-120um),

*Maximum powder coat length: 21 ft/ 6400 mm

*Maximum anodize length: 21 ft/ 6400 mm

Tolerance

According to GB5237.1-2008 or as per agreement

Industry Standards

ISO9001: 2008,

ISO14001: 2004,

ISO10012,

AAA grade standardize corporate;

Design

Degreed Engineers,

Design / Analysis,

Solid Modeling – Solidworks,

CAD – Computer Aided Drafting,

CAM – Computer Aided Machining,

Extrusion Die Design

Testing

Validation                    Durability                                   Reliability
Mechanical                 Chemical                                   Physical
Dimensional              Component                               Application
