Hebei Weijia FRP Co., Ltd.

China Manufacturer with main products: FRP Pipe, FRP Tank, FRP Vessel, FRP Grating, Cable Tray, Molding Grids, Pull Extrusion Profile, Packed Tower

10th

Home >Products Catalog > frp pipe > FRP Fiberglass Round Pipes Price competitive with SGS ISO9001 Certificated

FRP Fiberglass Round Pipes Price competitive with SGS ISO9001 Certificated

FOB Price:	0.15 - 2.56 USD/Meter
Supply Ability:	3,000 Meter/Meters per Week
Shipping:	by sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Packed by bubble membrane or according to customer requirement

Quick Details

Dimensions: D:400-2000mm
Technique: Pultrusion
Surface Treatment: smooth
Application: industry,construction,Corrosion Environmental
Model Number: C-0013
Brand Name: WJ

Specifications

FRP pultrusion profile Specifications

1.light weight,high strength
2.excellent anti-corrosion performance
3.electric,heat and sound insulation
4.maintenance free

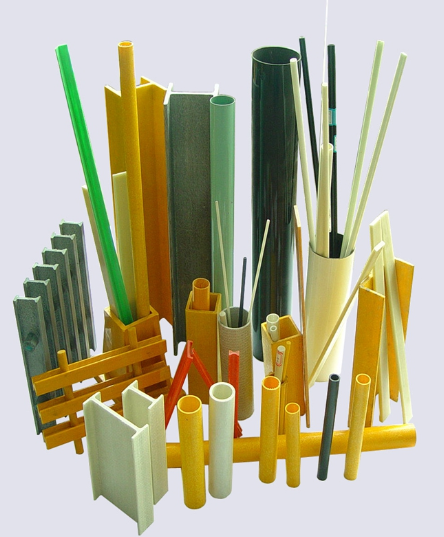

FRP pultrusion profiles, there are all kinds of FRP pipe, FRP rods, FRP round tube, FRP rectangular pipe,Plum flower tube,R tube, D shape tube,T shape tube, I shape beam, Oval tube, Channel tube, Angle beam Ladder cover, Glass steel beams. Glass steel grating.

The elementary element of the FRP pultrusion profiles for resin and glass fiber (including cloth, carpets, etc.), it was based on the fiber (including glass fiber, carbon fiber, organic fiber and other metal and non-metallic fiber) as the reinforced material, with resin (mainly epoxy resin, polyester resin, polyurethane resin, and phenolic resin) as adhesive agent, supplemented other auxiliary materials (main accessories: release agent, curing agent, accelerant, sealing agent, UV light stabilizer, clean water, gel, etc.) composite. It has high temperature resistance, corrosion resistance, high strength, the proportion of small, low moisture absorption, low extension, and good insulation.and a series of excellent properties.

During the pultrusion process,the raw material are pulled through a heated steel forming die using a continuous pulling device. when the reinforcements are saturated with the resin mixture in the resin bath and the wetted reinforcement package is wrapped in a surfacing veil. the completed package then goes into a performer that roughly forms the package into the appropriate shape to enter the heated die for curing. the die is the exact shape of the final part desired. upon exiting the die, the part is over 90% cured and solid. the length of the part required is pulled through the cutoff saw and the process is complete

Item	Size(mm)			Weight(kg/m)
Item	Height	Wideth	Thickness	Weight(kg/m)
Rectangular tube	50	50	3.5	1.204
	50	50	4.0	1.362
	50	50	5.0	1.665
	100	50	5	2.59
	100	100	6	4.173
I beam	200	100	10	7.030
	150	100	10	6.105
	100	50	8	2.723
Channel beam	200	60	10	5.55
	175	75	7	4.03
	152	43	9.5	3.85
	60	50	5	1.388
	50	30	5	0.925
	87	30	5	0.983
Angle beam	40	40	4	0.56
Angle beam	50	50	5	0.88
Round tube	Outside Dia.		Thickness
	28.6		5.0	0.69
	32		3.0	0.506
	32		6.75	0.99
	36		5.0	0.900
	45		6.75	1.50
	50		3.0	0.82
	50		4.0	1.07
	50		5.0	1.308
Wintersweet tube	32		5.0	0.558
FRP rod	10			0.176
	20			0.67
	30			1.5
Baseboard panel	100		3.0	0.722
