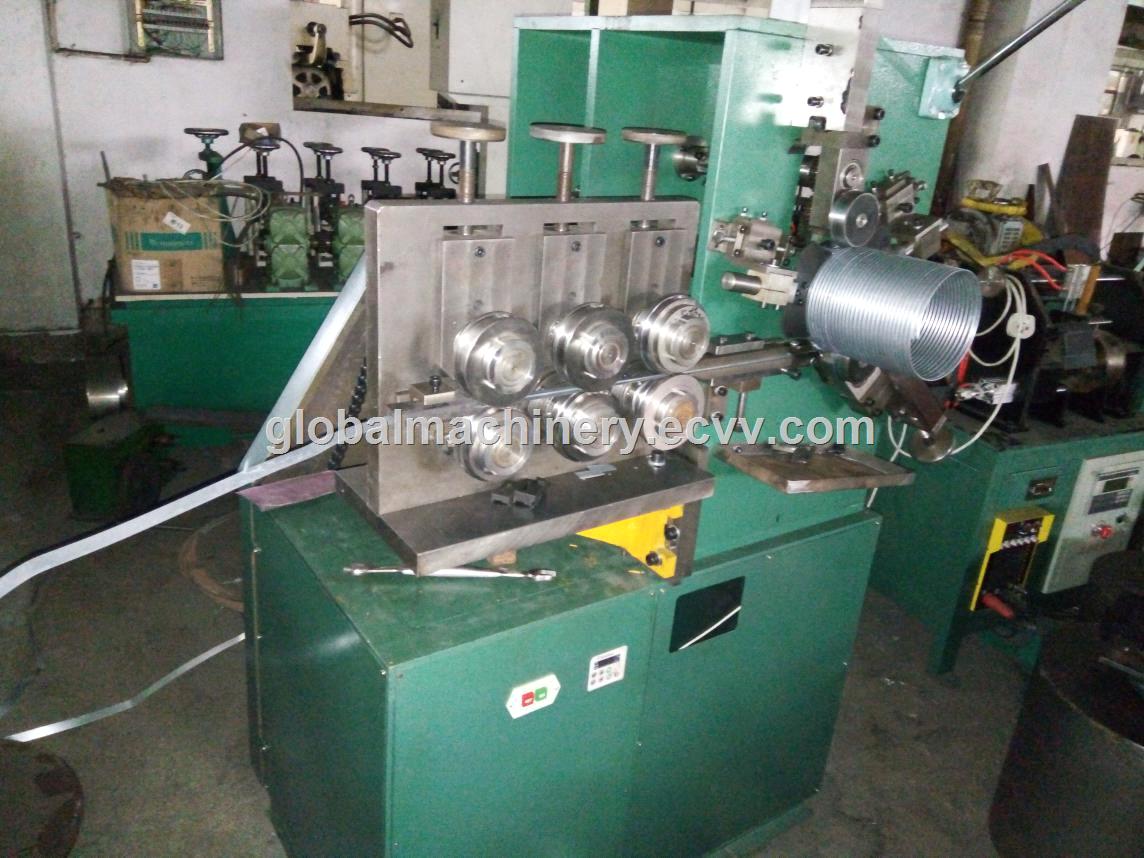

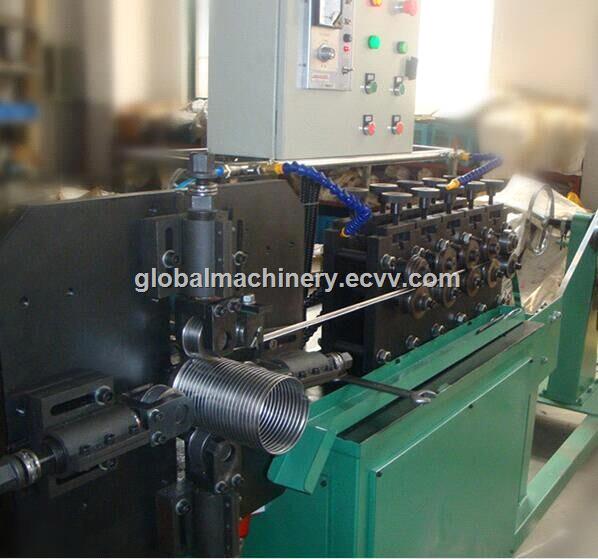

flexible duct making machine

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Quick Details

almighty extension flexible metal tube making machine

Exhaust hose making machine

exhaust duct forming machine

Air duct flexible metal tube making machine

Flexible metal air duct forming machine

Flexible metal air duct making machine
Aluminum Flexible Duct Machine

1. Description and Specification

Capacity:

Duct Diameter: 80-500mm

Length: 100-4000mm

Material Thickness: 0.06-0.15mm(Al foil strip,Stainless steel,Galvanized steel)

Strip width: 60mm

Compression ratio: 1:3.5 (means make the 3.5m tube to 1m)

Surface corrugation: 7 corrugation

Lock way: Double-decked tabby locking

Feeding speed: 0-46m/min

PLC control

Refrigeration system: Emulsified liquid cooling

Electrical power: 380V,3PH,50Hz

Main motor power: 1.5kw

Power of Pump: 0.04kw

Power of cutting: 0.12kw

Diameter of coil: min 70mm(inside), max 500mm(outside)

Weight of raw material coil: 50Kg

Mainframe dimension: 2210*830*1530mm

Weight of Mainframe :440kg

run-out table dimension 2300*1200*650mm

Weight of run-out table 50kg
