API 10D Welded Spring Bow Casing Centralizer

FOB Price:	20.00 - 50.00 USD/Piece
Supply Ability:	1,000 Piece/Pieces per Week
Shipping:	with in 15 days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Africa, Mid East
Place of Origin:	Shandong in China
Packaging Details:	wooden case

Quick Details

Use: Well Drilling
Processing Type: Forging
Material: Stainless Steel
Certification: API
Machine Type: Casing Centralizer
Type: Casing Centralizer
Brand Name: ZX

Specifications

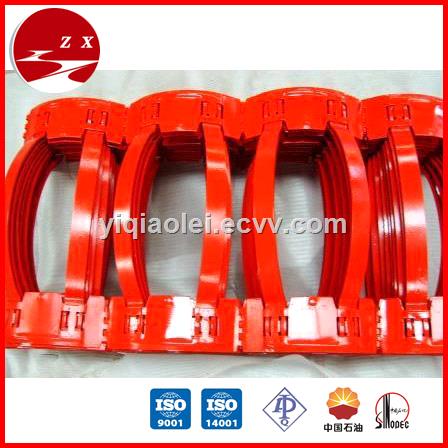

Welded spring bow centralizers are available in two styles: slip-on and hinged.

Spring bow centralizers are manufactured to API Specification 10D. The welded centralizer is designed for small-clearance casing-to-hole size applications. The centralizer will perform as a standard bow centralizer in holes up to ?" smaller than the centralizer's nominal OD.

Centralizer Spec. (in)	20	18-5/8	16	14	13-3/8	12-3/4	10-3/4	9-5/8	7-5/8	7	6-5/8	5-1/2	5	4-1/2
Casing Size (in)	20	18-5/8	16	14	13-3/8	12-3/4	10-3/4	9-5/8	7-5/8	7	6-5/8	5-1/2	5	4-1/2
Open Hole Size (in)	24 26	22 24	20 22	18	17-1/2	17-1/2	12-1/4	12-1/4	9-7/8	8-1/2	8	1/2	6-1/2	6
Max. O.D. (mm)	650 714	590 680	550 613	484	470	466	370	375	273	252	245	256	190	181
