Weihua Group
China Manufacturer with main products: Bridge Crane, Gantry Crane, Electric Hoist, Electri Winch, Grab Bucket, Lift Platform |

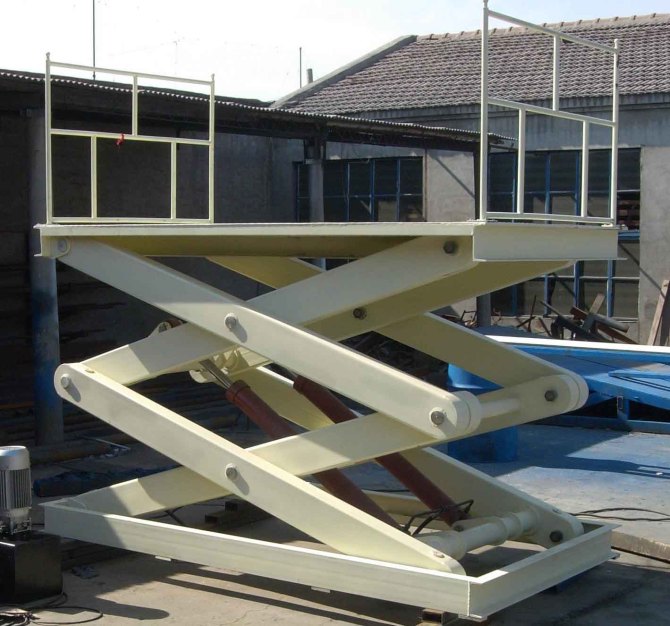

Fixed Hydraulic Scissor Lift
| FOB Price: | 1,000.00 - 5,000.00 USD/Set |
|---|---|
| Supply Ability: | 100,000 Set/Sets per Year |
| Shipping: | Tianjin, China |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | electricals and other parts are packaged by high quality plywood crates, Main beam packaged by plast |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: ISO CE
- Weight: On request
- Overall Dimensions: Different
- Table Size: On request
- Max. Lifting Height: No limit
- Lift Drive / Actuation: Hydraulic
- Brand Name: weihua
Specifications
Product Description
Fixed hydraulic scissor lift is a kind of lifting equipment with good stability and universal adaptation. It is mainly used in making production lines and carrying between goods height differences of automatic lines, feeding and discharging materials, assembling work pieces and other lifting works. And you can collocate different modes of worktables, drives, controls and other
Components are according to various working requirements and conditions.
The application of occasions:
1. Serves as a conveyor or lifter working with transportation/storage equipment, used for underground parking areas, and for container loading/unloading.
2. Serves as an elevator if the platform is installed with railings or extensible folding doors.
3. The platform-top can be installed with any fittings, such as rollers, rotary plates, or conveyors according to customers'.
Advantages:
Structural stability, low failure rate, smooth movements, reliable running, safe, efficient and easy maintenance, economical and practical, optional wireless remote control and other means.
Parameter
| Specification |
Height (m) |
Capacity (kgs) |
Size table (mm) |
Overall dimension (mm) |
Power (Kw) |
Weight (kgs) |
|---|---|---|---|---|---|---|
| SJG0.3-4 | 4 | 300 | 1700*1080 | 1820*1400*1180 | 2.2 | 660 |
| SJG0.3-6 | 6 | 00 | 1700*1080 | 1820*1400*1280 | 2.2 | 750 |
| SJG0.3-8 | 8 | 300 | 1800*1060 | 1900*1380*1460 | 2.2 | 850 |
| SJG0.3-10 | 10 | 300 | 1920*1200 | 2040*1580*1660 | 2.2 | 1300 |
| SJG0.3-12 | 12 | 300 | 2370*1300 | 2510*1630*1980 | 2.2 | 1420 |
| SJG0.3-14 | 14 | 300 | 2650*1300 | 2800*1660*1980 | 2.2 | 1800 |
| SJG0.3-16 | 16 | 300 | 2650*1340 | 2800*1600*2130 | 3 | 2800 |
| SJG1.0-8 | 8 | 1000 | 1940*1300 | 1920*1630*1980 | 2.2 | 1050 |
| SJG1.0-10 | 10 | 1000 | 1920*1300 | 2060*1630*1980 | 2.2 | 1500 |
| SJG1.0-12 | 10 | 1000 | 2400*1340 | 2530*1630*2000 | 3 | 1700 |
