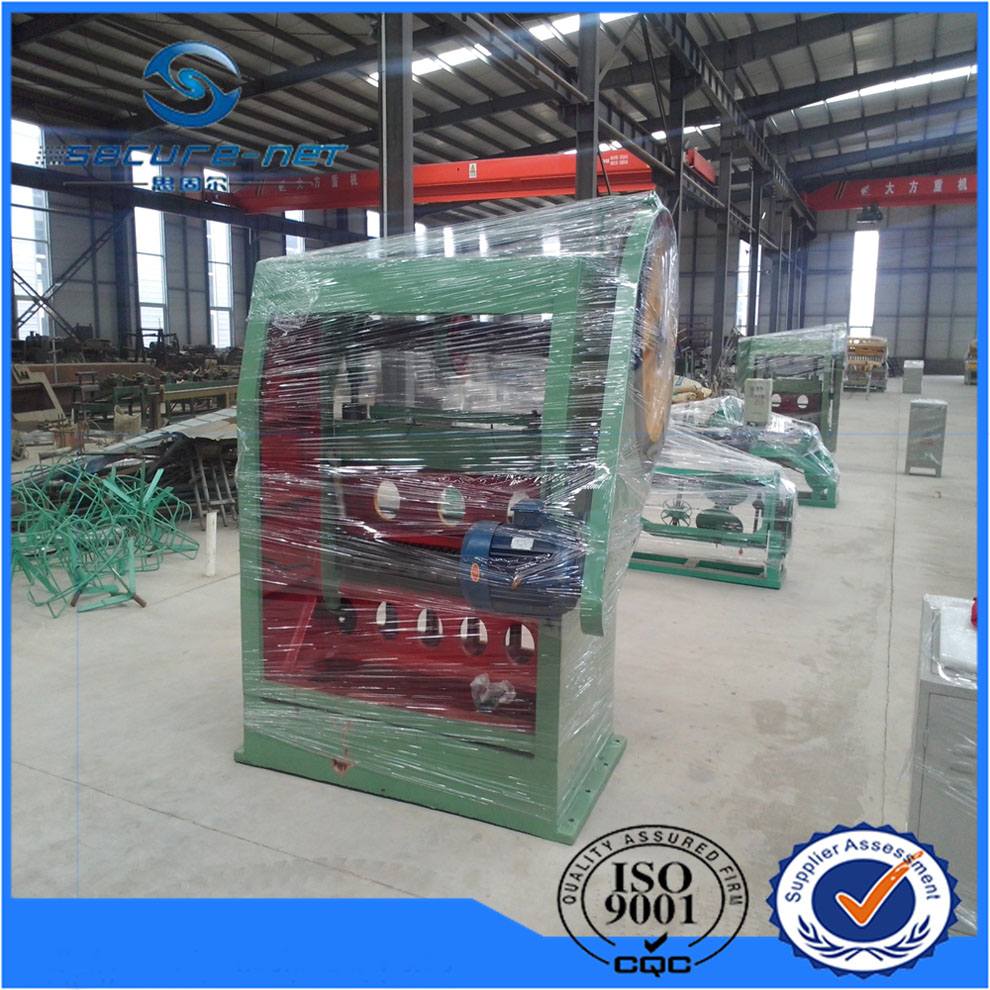

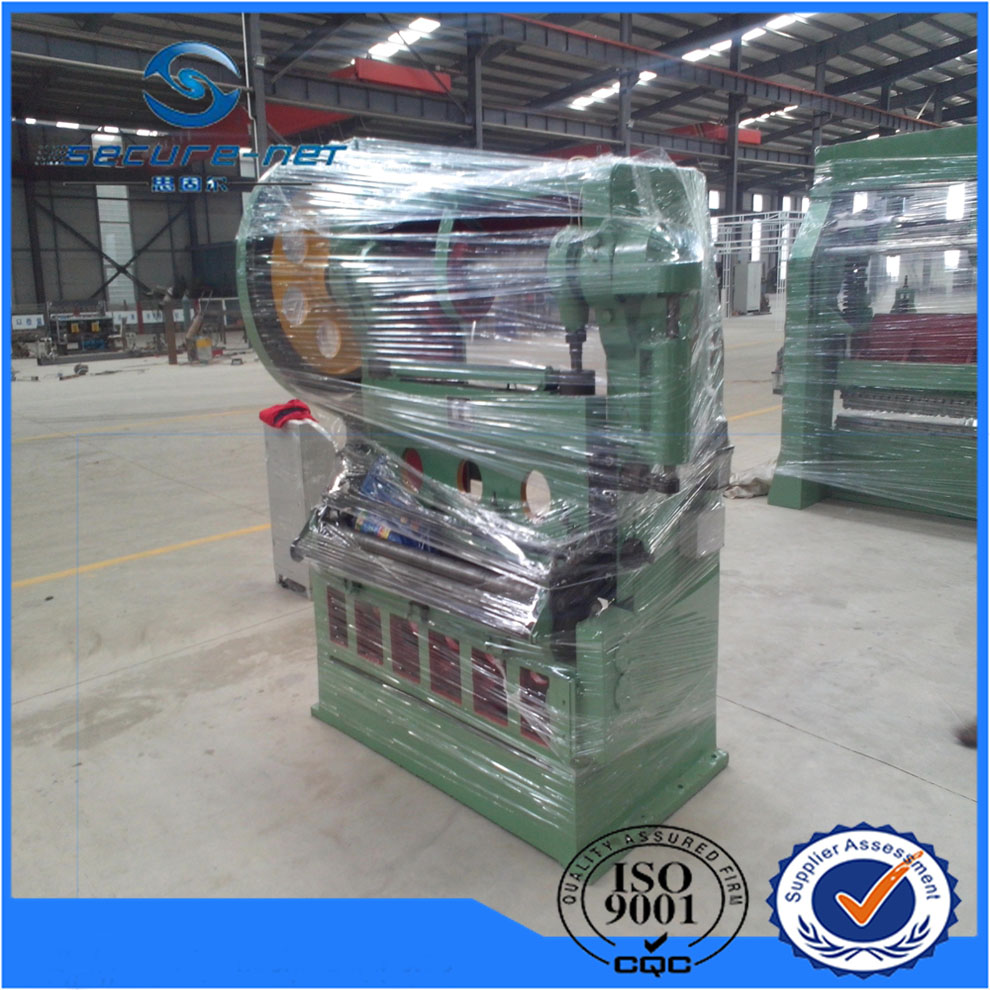

expanded metal mesh machine (factory)

FOB Price:	18,000.00 - 35,000.00 USD/Set
Supply Ability:	30 Set/Sets per Month
Shipping:	25days after receive the deposit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	platic bags and wooden boxes

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Model Number: 25-25
Brand Name: SECURE-NETT
Dimensions: 1940x1600x2010mm
Punching material thickness: 0.3-1.5mm
Punching width: 1200mm
Mesh length intercept: 30mm
Feeding distance: 0-1.2mm
Number of shocks: 150times/min
Motor power: 4KW
Weight: 3T

Specifications

Decription of the machine

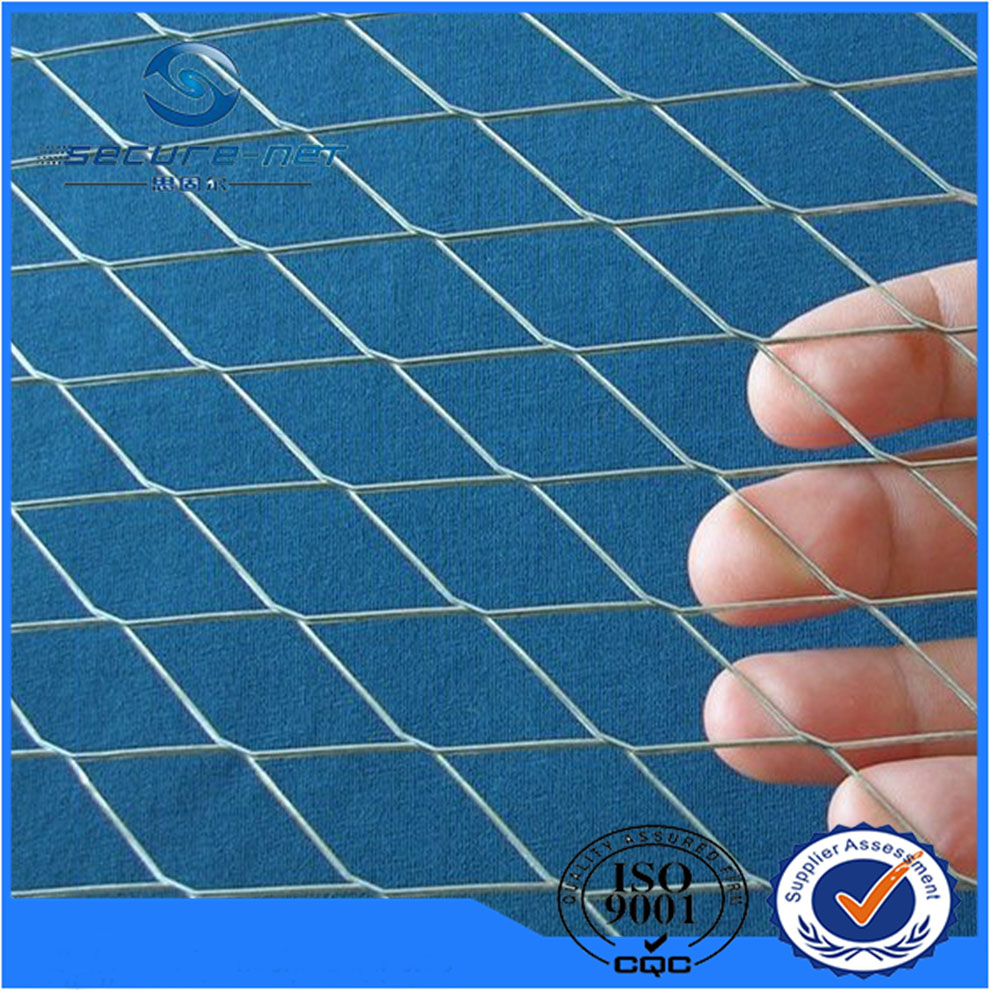

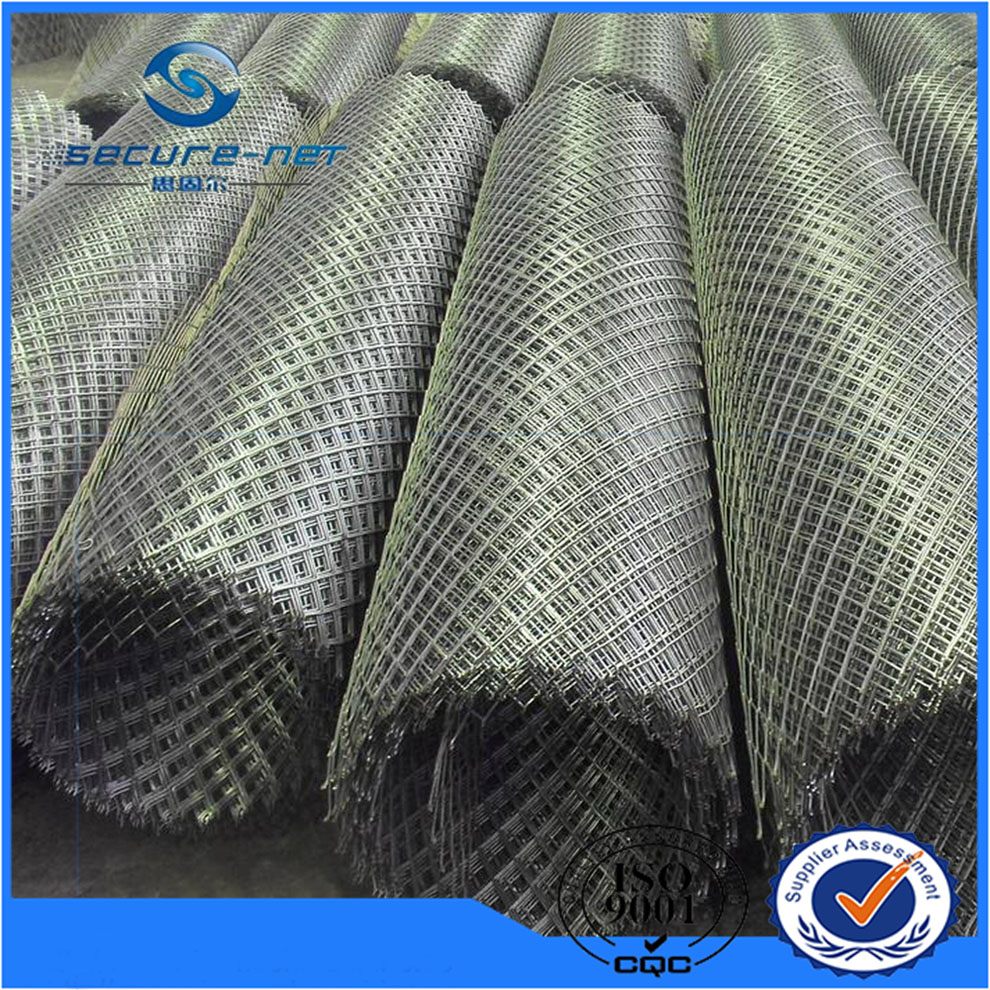

Our expanded mesh panel machine is practical with high-tech. It is not only can produce steel plate net, and aluminum plate net but also can produce titanium net, copper network, aluminum foil and other materials plate network, including ordinary diamond-shaped network, which thickness is below 8mm.
This type of expanded mesh panel is widely used in such areas as mechanical, electrical, electronics, hardware, field of protection etc.

Parameter of the machine

	JQ25-6.3	JQ25-16	JQ25-25	JQ25-63	JQ25-100	JQ25-160B
Material Thickness	0.1-1mm	0.2-1mm	0.2-1.5mm	0.5-2.5mm	0.5-4mm	1-8mm
Material max width	500mm	1000mm	≤1250mm	2000mm	2000mm	2000mm
Stroke per min	180/min	150/min	150/min	70/min	60/min	45/min
Distance of feed	0-1.2mm	0-1.2mm	0-1.2mm	0-4mm	0-4mm	0-7mm
Mesh size of SW	20mm	≤25mm	≤30mm	100mm	150mm	160mm
Motor	2.2kw	3kw	4kw	11kw	18kw	30kw
Net weight	0.95T	2T	3T	11T	12T	21T
Overall dimensions	10907101450mm	174014001500mm	194016002010mm	240035002300mm	360025003000MM	300032004110mm
