Automatic Twin Ring Wire Forming Machine

Inquiry Now

Product Details

Specifications

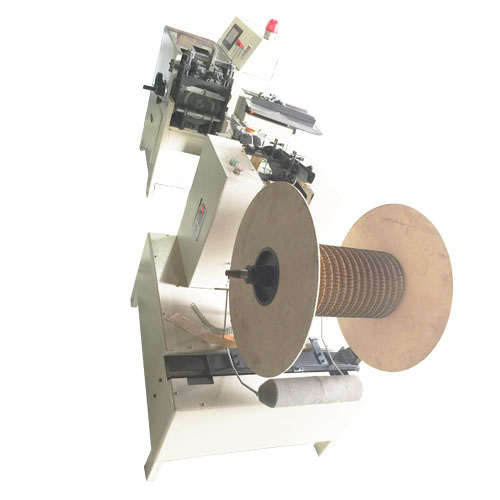

OBFJ600 Automatic Twin Ring Wire Forming Machine

Video address:http://>

Features:

? Producing all size 3:1 pitch or 2:1 pitch twin ring wire on one machine by take few minutes change forming tool;

? Automatic wire leading, forming, counting and cutting;

? Machine have online wire cutting unit to precutting wire into any rings'pcs;

? Able to connect automatic spooling machine;

? Spooling machine have online strip paper cutting function to wrap twin ring wire in spool automatically;

? Can connect to automatic snake skin packing system;

? Small machine, easy installation, simple operations don't need special training;

? Low investment.

Work for:

Right for printers who need double wire for the loose-leaf notebook, calendar, album and other book documents binding usage. You can use ordinary wire, galvanized wire, stainless steel wire, plastic coated wire on this machine as raw material.

One machine can producing both 3:1 and 2:1 pitch wire o size from 1/4'' to 1-1/4'' by change forming tools.

Technical Data:

Wire material diameter: 0.65mm to 1.6mm;

Formed wire o size: 3:1 and 2:1 pitch from 1/4'' to 1-1/4'';

3:1 pitch forming tool able to producing twin ring wire size 1/4'', 5/16'', 3/8'', 7/16'', 1/2'', 9/16'';

2:1 pitch forming tool able to producing twin ring wire size 1/2'', 9/16'', 5/8'', 3/4'', 7/8'', 1'', 1-1/4'';

Forming speed: 350 to 550 loops/minute;

Electric power: single 220v/50hz/0.75kw

Machine size: 1240 x 1080 x 600mm;

Net weight: 300kgs;

Gross weight: 350kgs.
