Automatic Twin Ring Wire Forming Machine

Inquiry Now

Product Details

Quick Details

Model Number: OBFC700
Brand Name: Obinder

Specifications

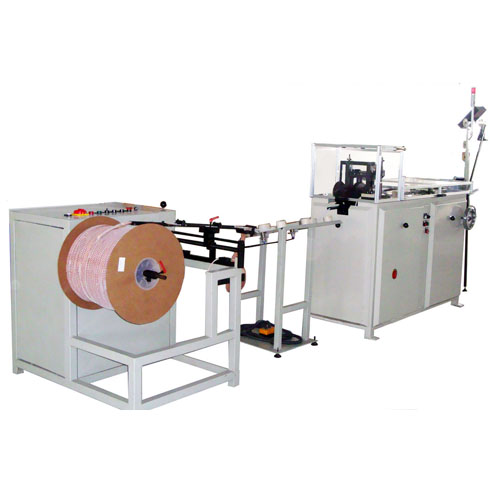

OBFC700 Automatic Twin Ring Wire Forming Machine

Features:

Twin ring wire forming machine producing all range diameters and sizes wire o with different pitches forming by nylon coated wire.A metal wire coated with high quality nylon with wide variety of color and size. The wire is firstly formed to UUU shape, and then the wire formed to an open loop C shape. When binding the books, the loop will close into a perfect O ring.

1. Can and easier change forming tool by modular forming tool;

2. With imported machine material, accessories and parts;

3. Stronger structure, more stable working ability.

Technical Data:

ITEM	PITCH 3:1	PITCH 2:1
Forming speed	500-700 loops/min	300-500 loops/min
Basically equipment	One series diameter in the range of pitch 3:1	Another series diameter in the range of pitch 2:1
Binding diameters	By changing the forming mold tool, the machine can be adjusted to additional diameters
Mould size	1/4"---5/8"	1/4"—1-1/4"
wire quality	Nylon coated wire or tinned wire from spools
Processing way	Auto forming, Auto counting, Auto stop machine
Forming Machine Power	380V,50/60HZ, 0.75KW
Spooling Machine Power	220V,50/60HZ, 0.37KW
Stripped Paper Cutter	220V,50/60HZ, 0.25KW
Forming Machine dia	2400x650x1700mm
Spooling Machine	1300x1000x1200mm
Stripped Paper Cutter	600x500x1400mm
Weight	380kg, not including wire spool
