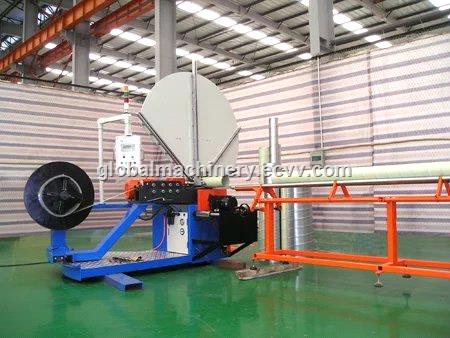

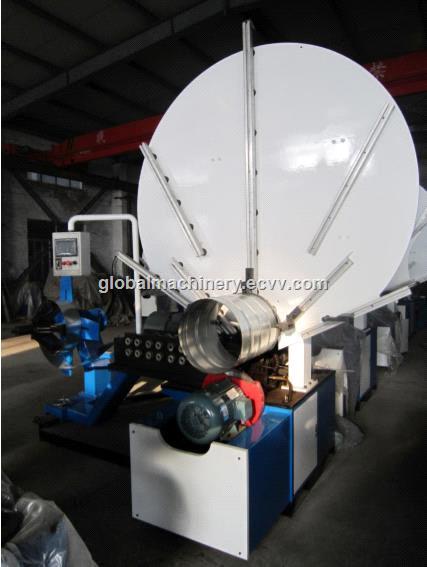

Spiral metal Tube Forming Machine

FOB Price:	5,000.00 - 28,000.00 USD/Set
Supply Ability:	300 Set/Sets per Month
Shipping:	20 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Model Number: SJ
Brand Name: GB

Specifications

Spiral Tube Forming Machine
Spiral metal Tube Forming Machine
spiral metal corrugated pipe machine
spiral metal corrugated pipe making machine
Spiral mouth metal corrugated pipe machine
Spiral metal air duct forming machne
Spiral tube former machine
Sprial tube forming machine
Air duct forming machine

1. Description and Specification

Capacity:

Duct Diameter: 80-500mm

Length: 100-4000mm

Material Thickness: 0.06-0.15mm(Aluminum foil strip)

Strip width: 60mm

Compression ratio: 1:3.5 (means make the 3.5m tube to 1m)

Surface corrugation: 7 corrugation

Lock way: Double-decked tabby locking

Feeding speed: 0-46m/min

PLC control

Refrigeration system: Emulsified liquid cooling

Electrical power: 380V,3PH,50Hz

Main motor power: 1.5kw

Power of Pump: 0.04kw

Power of cutting: 0.12kw

Diameter of coil: min 70mm(inside), max 500mm(outside)

Weight of raw material coil: 50Kg

Mainframe dimension: 2210*830*1530mm

Weight of Mainframe :440kg

run-out table dimension 2300*1200*650mm

Weight of run-out table 50kg
