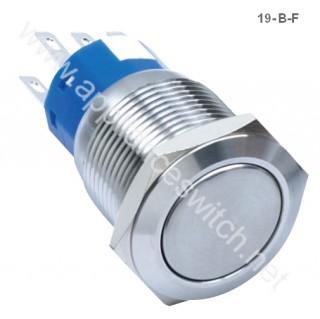

19mm Waterproof Metal Push Button Switch with Momentary/Locked 1NO1NC,2NO2NC

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	Poly box and Carton

Quick Details

Model: 2016 Hot Sale 19mm IP67 Waterproof Metal Push Button Switch with Momentary

on/Self-Locked 1NO1NC,2NO2NC,with brass or stainless steel Shell

Mounting hole: 19mm diameter

Operation type: Momentary on or Self-Locked

Contact Configuration:1NO1NC,2NO2NC

Front Shape: Flat Round/Ball Round/High flat Round

Terminal Type: Solder terminals

Max. Switch Rating: 5A/250VAC

Contact Resistance: <=50mohm

Insulation Resistance: >=1000mohm

Dielectric Strengh: 2000VAC

Operation Temp.: -20- +55C

Mechanical Life: 1,000, 000cycles

Electrical Life: 50, 000cycles

Panel Thickness: 1-10mm

Torque: 5-14Nm

Operation Pressure: About 3-5N

Operation Travel: About 2.0mm

IP Degree: IP67,IK09

Contact Material: Silver Alloy

Crust Material: Nickel Plated Brass/Stainless Steel

Button Material: Nickel Plated Brass/Stainless Steel

Body Material: Nickel Plated Brass/Stainless Steel

Base Material: PBT
