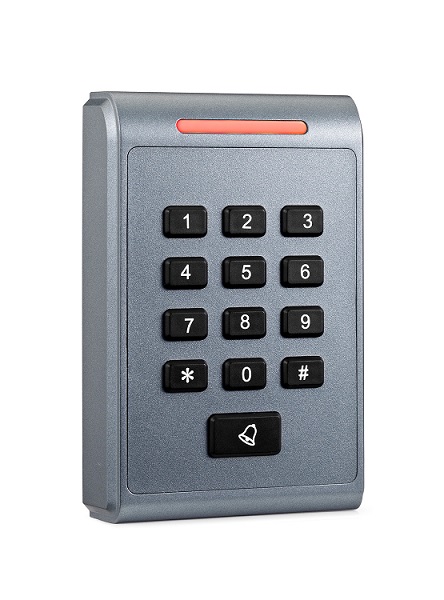

Standalone Access Control Keypad U5

Specifications

Single door Keypad Access Controll U5

The keypad a single door multifunction standalone access controller or a Wiegand output keypad. It is suitable for mounting either indoor or outdoor in harsh environments.
The keypad has non-waterproof and waterproof two versions. The electronics are fully potted, so the waterproof keypad conforms to IP68. The keypad supports up to 2000 users . It supports three kinds of opening mode: PIN only.
The keypad is an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.

Features
1. Waterproof version: conforms to IP68
2. Full programming from the keypad
3. 2000 pin code uses
4. Can be used as a standalone keypad ,Pin length 4 digits
5. Backlight keypad
6. Wiegand 26/34 input & output,WG4/8 for pin.
7. One programmable Relay output, NO,NC,COM
8. Adjustable Door Output time, Alarm time, Door Open time
9. Block enrollment, can enroll maximum 2000 consecutive card within 2 minutes.
10. Very low power consumption (<60Ma)
11. Easy to install and program
12. Built in light dependent resistor (LDR) for anti tamper
13. Built in buzzer
14. Red, Green LEDS display the working status
15. 12VDC-24VDC working voltage
Remark
1. Before you power on the keypad, please check whether
