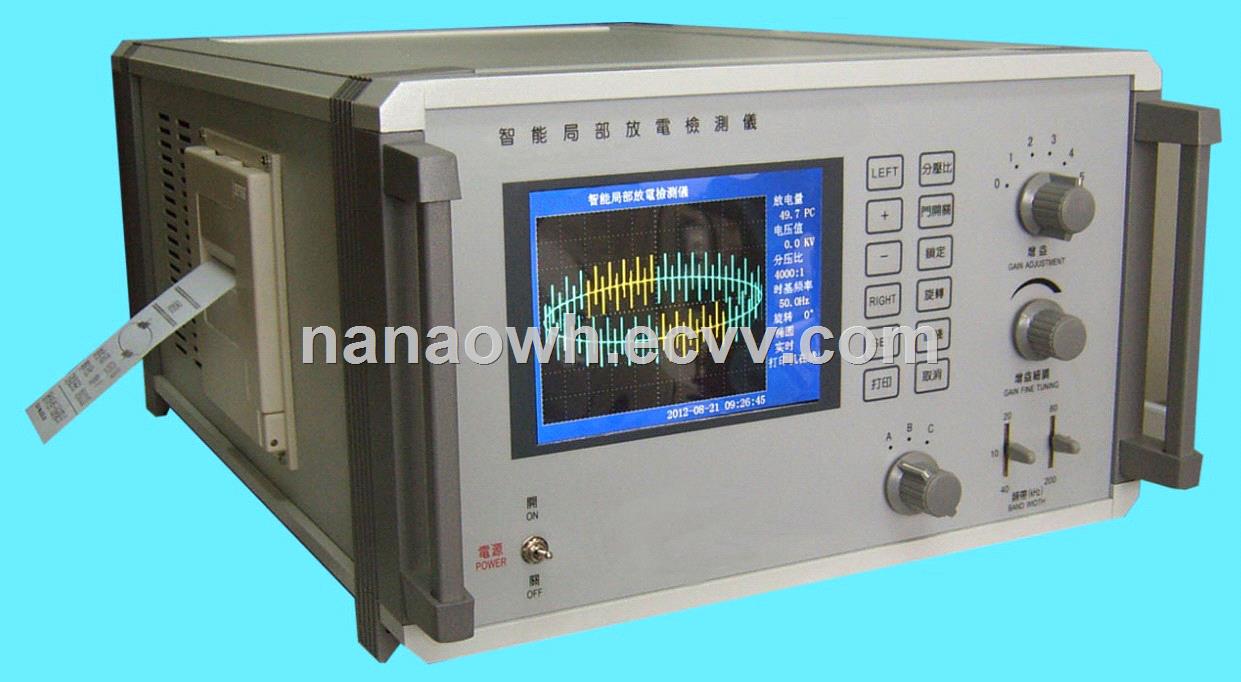

Digital Partial Discharge Detector

FOB Price:	7,000.00 - 8,000.00 USD/Set
Supply Ability:	9,000 Set/Sets per Month
Shipping:	one work day delivery time, from Shanghai & Shenzhen port, etc
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	Adapt international standard IPPC wooden package

Quick Details

Model Number: 550622
Brand Name: NAELECTRIC
Partial discharge tester: red
Partial Discharge Detector: Partial Discharge
Discharge Detector: Partial Discharge

Specifications

According to the latest international and domestic technological progress, we have developed NAJFD-3000 series partial discharge detection system successful.

Characteristics of the product:
1, Pure process control mode for partial discharge detecting system
2, English menu display
3, Automatic calibration, automatic synchronization, automatic voltage recording, automatically measuring and playback & saved
4, Automatic generating test report
5, 2D and 3D partial discharge display
6, Adopting digital window technology, with strong anti-interference.
7, Dual-channel measurement and differential digital technology, which can measure the partial discharge signals of two sample or a sample with two points, can easily analyze the source of partial discharge signal.

Parameters of the product:
1, Measuring channel: 2 channels ,
2, Detection sensitivity: 0.1pc3,
3, Measuring bandwidth:3dB bandwidth of 10kHz ~ 300kHz
4 Programmable filter setting gear:
Low: 10,20,40 kHz
High: 100,200,300 kHz
5, Gain dynamic range: 120dB
6, Synchronization frequency: 50,100,150,200 or other arbitrary Hz
7, Standard pulse voltage: 10V, 5V, 2V, 1V, 0.5V, 0.2V six-gears can be adjusted.
8, Calibration capacitance: 50pF, 200pF two-gears can be adjusted.
