China Marine Trade Import & Export Co., Ltd.
China Manufacturer with main products: Marine Bollards, Marine Fairleads, Marine Mooring Ropes, Marine Fenders, Marine Chocks, Marine Cross Bitts, Floating Pontoons, Marine... |

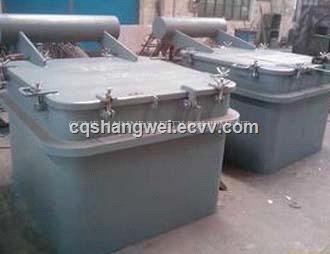

Boat Steel Hatch Cover for Marine
| FOB Price: | 20.00 - 500.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece/Pieces per Month |
| Shipping: | SEA SHIPPING |
| Payment Terms: | D/P, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | Standard type |
Quick Details
- Part: Boat steel hatch cover for marine
- Model Number: CQSW
- Brand Name: CQSW
- Hatch Type: Watertight/Weathertight/Oiltight/Gastight
- Material of Cover: Steel or Stainless Steel or Aluminium
- Handle: Level Type/Wheel Type
Specifications
Boat steel hatch cover for marine
According to opening modes of hatches, the hatch cover hydraulic system series can be divided into translation and folding mode.
Translation hatch cover through lift-up cylinder to lift the panel of hatch cover in position of horizontal slideway, then use gear, rack or chain, sprocket to translate the cover to the other side, to open the cover.
Folding hatch cover is through hydraulic cylinder to lift two blocks of folding covers, and stand them to the other side of opening cover, to open the cover.
Control mode is engine local control of manual direction valve, and power supply is to use two sets motor pump units as spear parts for each other.
For simple structure, convenient operation, cheap cost, safety and reliable performance, it is widely used for large bulk vessel, containers and etc.
| Item | Marine Steel Hatch Cover |
| Hatch Type | Watertight Hatch/ Weathertight Hatch / Gastight Hatch / Oiltight Hatch Cover |
| Material | Steel or Stainless Steel or Aluminium |
| Opening Type | rotary quick open / handwheel quick open/none quick open |
| Fireproof Class | A60/A15/A0/None |
| Surface Finish | baking finish for steel |
| Thickness |
minimum 4 mm , the thickness of the hatch depend on the size of hatch, large size of hatch accordingly thicken |
| Size | as the drawing or client requirements |
According to opening modes of hatches, the hatch cover hydraulic system series can be divided into translation and folding mode.
Translation hatch cover through lift-up cylinder to lift the panel of hatch cover in position of horizontal slideway, then use gear, rack or chain, sprocket to translate the cover to the other side, to open the cover.
Folding hatch cover is through hydraulic cylinder to lift two blocks of folding covers, and stand them to the other side of opening cover, to open the cover.
Control mode is engine local control of manual direction valve, and power supply is to use two sets motor pump units as spear parts for each other.
For simple structure, convenient operation, cheap cost, safety and reliable performance, it is widely used for large bulk vessel, containers and etc.
| Type of hatch cover |
Translation (rack and pinion drive, sprocket chain drive) Folding (Single page, double pages, three pages, four pages) Rolling Hanging |
| System pressure | 16MPa, 20MPa,25MPa,28MPa |
| System flow | 28L/min,32L/min,40L/min,45L/min |
| Nos of hatch cover | 1,2,3,4,5 |
| Emergency pump station | yes or no |
