TSP packaging machinery automatic rotary bottle filling machines/ bottled water for plant

Specifications

small business bottled water machine

1: multi function bottle blowing machine
The operation of the machine adopts touch screen operation, and realizes the man-machine conversation. The two air blowing system of special design, ensure the stable quality of bottle molding. Heater adopts four infrared ray temperature control, digital automatic voltage regulating system, set the corresponding heating temperature according to the different user preforms. With reasonable structure, small area, low power consumption, strong stability and so on.

2: bottle machine
PLC control and frequency conversion speed control to ensure the synchronization of the whole production line. Using three times to choose a row of bottles, improve the efficiency of the bottle. Characteristic design bottle assembly to adapt to the different length of the bottle. Bottle pulling wheel with card bottle detector. Umbrella tower is equipped with a detector, the start stop hoist to control the amount of the main cabin within the storage bottle. The bottle in the bottle pulling wheel and the wind sent to hang bottle connection output, avoid to turn to the card bottle. Out of the bottle by synchronous belt and wheel control, to ensure a stable, non inverted bottle bottle, the bottle squeezing phenomenon. The whole machine adopts centralized lubrication system to carry out fixed point, time, and quantitative lubrication.

3: water treatment equipment
The original nanofiltration membranes (such as pure water with the RO membrane) water available water or tap water is adopted to ensure that the effluent quality meet the national clean water standards. This system includes the water treatment equipment of the original water tank and the water tank, etc.

4: air bottle air supply system
Duct transmission line, professional design for all kinds of shapes and sizes of empty PET bottle delivery. Modular design, air duct installation and workshop production line layout is simple and fast. Different specifications of different types of bottle design for different delivery methods. Through the adjustment of wind pressure, wind speed to achieve the control of transmission speed.

5: bottle cleaning machine
Liquid water bottle cap, can solve the bottle cap in transportation, storage process of the dust generated

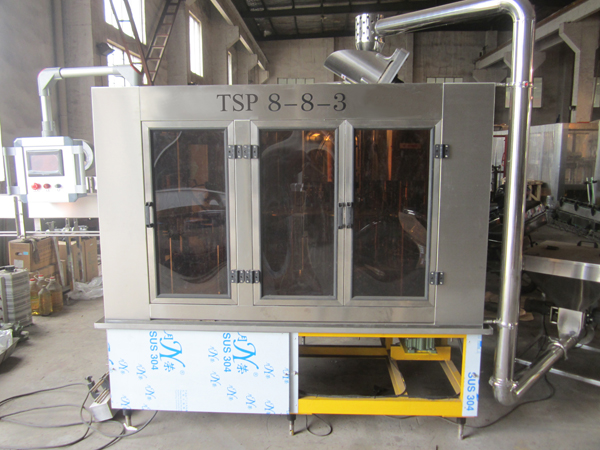

6: three filling machine
Bottled water filling machine with wheel drive technology, automatic bottle washing, filling, sealing and other processes. Air and bottle feeding wheel direct transmission, using the full bottle card bottleneck technology, there is no need to adjust the equipment level of bottle shaped transform. Three in one unit inside a complete washing bottle, filling, capping the three processes, the bottle wear small, accurate and stable transmission. High speed and large flow gravity filling valve, filling speed, accurate and no liquid loss. A bottle of bottle bottom plate wheel with spiral down, bottle shaped bottle transform does not need to adjust the height of conveyor chain.

7: lamp box
The quality inspection of the light box is mainly used for the filling of the liquid filled in a clear bottle.

8: real bottle conveying system
Non pressure conveying system, based on real-time speed signal acquisition and feedback and automatic speed control system, can realize conveying belt on the bottle in motion by columns of smooth change into a single row, without mutual extrusion phenomenon. The electric control system adopts PLC to control the running of the whole real bottle conveying buffer system, and automatically realizes the function of running speed and deceleration and buffering.

9: dryer
Air pressure fan, the high-speed flow of air from the slit from bottle residue drops off. Slit inclination layout, all sides of the bottle can be blown to the high speed wind.

10: labeling (set) equipment
Modular design, static cutting. Adapt to all kinds of bottle bottle body.

11: laser printer
Safe non-toxic, non consumable material, permanent marker. Energy saving.

12: film charter
Imported PLC automatic control, man-machine interface, tracking accuracy, sub packet into the state, to eliminate the lack of bottles, bottle, flexible adjustment. Adjustable air circulation structure, suitable for all kinds of heat shrinkable film (now Han Caiyin), quick and easy replacement of thin film.

13: packing machine
Container traffic pile by vacuum scratching their heads raised, then down into the open mouth of the box; before and after packing machine can belt out of the box machine, sealing machine, artificial out of the box, box sealing

Technical features
By microcomputer (PLC) programmable control, photoelectric sensor, pneumatic actuator in one of the high-tech filling equipment. This model is dedicated to the filling of bottled water. Filling measurement accuracy, no bubbles, no leakage. Can be applied to 50-1000ml all kinds of bottle type (including shaped bottle) filling.
First, advanced design
The filling machine is suitable for different sizes of containers, which can be used to switch the filling in a few minutes.
Short filling cycle, high production capacity.
Changing filling specifications without adding spare parts, just to make adjustments to complete.
Users can choose according to their own production capacity to determine the number of filling head.
Touch screen operation, can display the status of production, operating procedures, filling etc.. Picture is intuitive, simple operation, easy maintenance.
Each filling head is provided with a card set, ensure the feeding bottle accurately.
Two, unique filling method
Design and selection of straight into the bottle, a bottle of the way, so that the filling function expansion, all kinds of containers, can be in the effective filling of the equipment.
The gas filling valve international advanced filling process, ensure no leakage, no watering.
Strong PLC software support, can achieve the ideal filling operation.
The friendly man-machine interface, all operations are completed on the touch screen.
Three, accurate measurement control
Filling with fixed flow channel parameters, control the filling time to achieve different metering filling.
The accurate time of the air valve filling can be set to 0.01 seconds, can make the measurement accuracy control in the + 1% error range, reduce unnecessary material loss, improve the economic benefit of users.
The metering of each filling head can be adjusted separately in order to achieve the filling measurement.
The machine set up into a bottle of technology, no bottle, counting is not in place not to fill, only when the counter recorded the number of bottles and set the number of filling bottles to start filling.
The amount of filling, can be carried out at the beginning of the required filling volume, then fine tune, you can get the ideal filling measurement accuracy.
Bottle of bottled water production models have 2000 bottles per hour, 5000 bottles per hour, 8000 bottles per hour, 10000 bottles per hour. 15000 bottles per hour. 20000 bottles per hour. 36000 bottles per hour.
