Cement bag making machinery
| Supply Ability: | 18 Set/Sets per Year |
|---|---|
| Shipping: | 3~5 months delivery time |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | wooden package |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE
- Weight: 33T
- Dimension(L*W*H): 35.3m*2.4m*2.7m
- Power(W): 47000
- Voltage: 380V
- Model Number: ZT9804
- Brand Name: tecon
- Computerized: Yes
- Type: Paper Folding Machine
- Condition: New
Specifications
Brief introduction

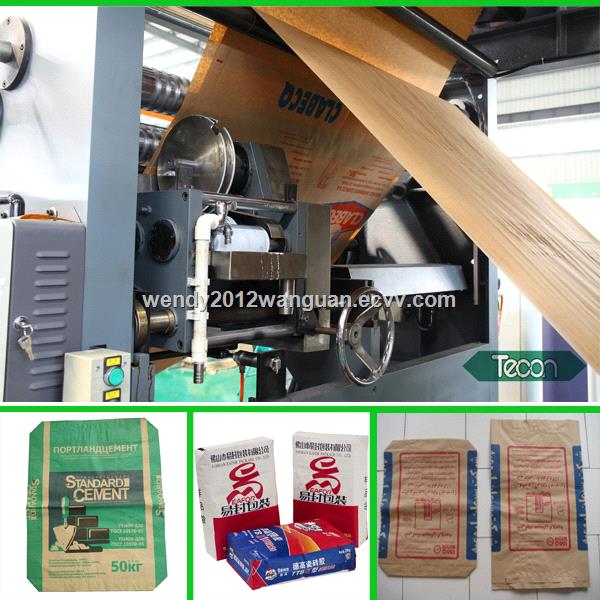

Our paper bag production line consists two parts, one is paper tube making machine, the other is bottom pasting machine. This production line can make 2-4 color printing, bottom valved paper bags. This kind of bags can be used for packing cement, mortar, chemicals materials and other granule or powder materials. Bags can be 2~4 layers kraft paper or clupak paper and one layer of PE material.
ZT series paper tube making machine can produce multi-ply paper tube. Material paper reels being unwinding automatically, multi-layers paper tube will be formed automatically. Perforation, tearing down, tension control, deviation rectifying, counting is controlled automatically. A multi-color flexo printing machine is connected with this machine, paper tube can get 2-4 color printing.
ZT9804 Tuber Machine
Operating condition
|
Working hour |
22 hours/day |
|
Design temperature |
0~40℃ |
|
Design humidity |
MAX. 95% |
|
Number required |
1 unit |
|
Model name |
ZT9804 |
|
Speed |
130~150 tubes/min(Depends on paper quality, number of ply and operators' skill.) |
|
Tube length |
670~1035 mm |
|
Tube width |
420~600 mm |
|
Space between tape steps |
20 mm |
|
Tube Cut Length |
670~1035mm |
|
Number of ply |
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
|
Diameter of print roller |
?144～?314 mm |
|
Printing width |
1300 mm(MAX) |
|
Paper reel width |
860~1260 mm |
|
Paper reel diameter |
Max. 1, 300 mm |
|
Air consumption |
1,100L/min |
|
Main drive motor |
30kw |
|
Size of whole set |
34.3m×2.4m×2.7m( L×W×H) |
|
Total weight |
30 T |
Operating condition
|
Working hour |
22 hours/day |
|
Design temperature |
0~40℃ |
|
Design humidity |
MAX. 95% |
|
Number required |
1 unit |
|
Model name |
HD4913 |
Performance
|
Speed |
80~130 bags/min(Depends on paper quality, number of ply and operators' skill.) |
|
Bag length |
520~880mm |
|
Bag width |
420~600 mm |
|
Bottom width |
90~130mm |
|
Bottom open width |
200~380mm |
|
Distance between bottom centers |
420~780mm |
|
Valve sheet length |
100~250mm |
|
Valve sheet width |
120~170mm |
|
Main drive motor |
33kw |
|
Total weight |
22.7T |
|
Size of whole set |
21.3m×2.3.m×1.8m ( L×W×H) |
|
Valve sheet reel diameter |
Max.1,300mm |
After-sale service
1.Provide training during and after the commissioning at the buyer site.
2.One year warranty period from the acceptance at the buyer site.
3.Provide life long technical services and effective solutions.
The ZT9802S tuber machine, which is developed by our company on the basis of ZT9804 standard tuber machine, is added a servo control component on each of the four key procsses (printing,perforation, gluing and separation), to form a closed-loop servo control system by the PLC, servo control module, the main frequency traction motor, servo motor group, encoder, color components to ensure that the cutting position of each printing bags matches the color patch of the tube. Through the touch screen, it is easy and visualized to adjust the specification of tube.
When it is on-line printing, ZT01 print unit prints precisely and neatly, and it only needs to replace print roller and its gear. Through adjustment of thorn-ranked knife position, ZT07 separation machine can cut both the ladder-cutting and straight-cutting tubes. Other related adjustments are operated on touch screen, saving of labor and time .
When it is not on-line printing, besides the above characteristics, when requires more high-precision printing quality, it can complete printing by the using of other printing equipments, producing tubes in ZT9802S Tuber machine, expanding the specification of tubes of ZT9802S(400mm-2000mm). Need not to change any specification wheel, all adjustments are operated on the touch screen.
