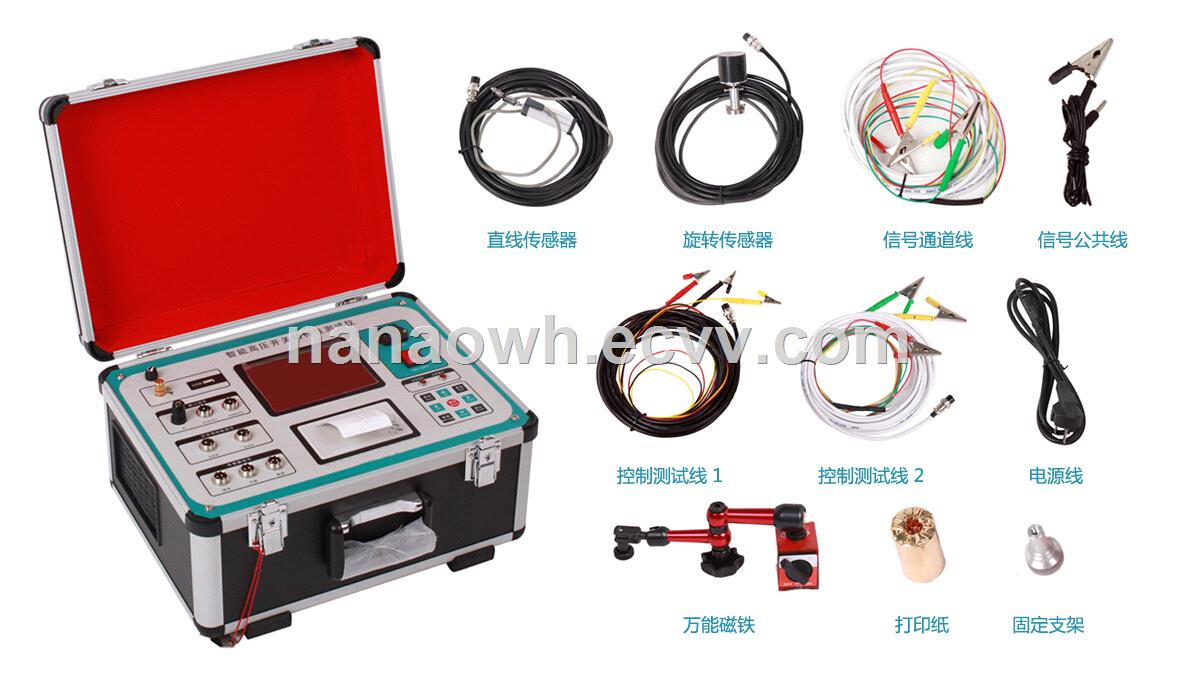

NAGKH Switch Dynamic Characteristics

Specifications

Parameters of the products
1,Time measurement
Time measurement range: 10ms-1000ms
simultaneously measure the number of fracture: ≤ 12
measurements at the whole process of setting time: 0 ~ 6 s
Resolution: 0.1ms
2,switch of open & close distance and overtravel, bounce amplitude measurement
range: <500mm
Resolution: 1mm
3,measurement error
 time measurement error: ± 1%
stroke measurement error: ± 1%
4,Operating Conditions
Operating Voltage: AC220V ± 10%
Frequency: 50HZ
Power Consumption: ≤ 60W
Usage temperature: 0 ~ 40 ℃
Operating Humidity: ≤ 90% RH

Characteristics of the products
1, High-voltage switch dynamic characteristics tester with 12 fractures, with fixed open and close time fracture
2, Reclosing time
3, Opening, closing at maximum different period
4, Speed of just opening, just closing
5, Bouncing timing and magnitude
6, Distance of open and close, overtravel of open and close, (vacuum switch preset switch stroke)
7, Opening, closing average speed
8, Speed of display and print - distance curve

Product introduction
NAELECTRIC high-voltage switch dynamic characteristics tester (without power supply) is a newly researched and developed special instruments, as to adapt the needs of high-voltage switching operation characteristics developed. With the single machine as core to sample, to process and output. NAELECTRIC high-voltage switch dynamic characteristics tester mainly adopted all English characters tips to man-machine dialogue operation, character display and print out the results, with intelligent, multi-function, accurate data, strong anti-jamming, simple operation, small in size, light in weight, beautiful appearance, etc., Suitable for a variety of indoor & outdoor, less oil & more oil switches, vacuum switches, sulfur hexafluoride switch dynamic characteristics testing.
