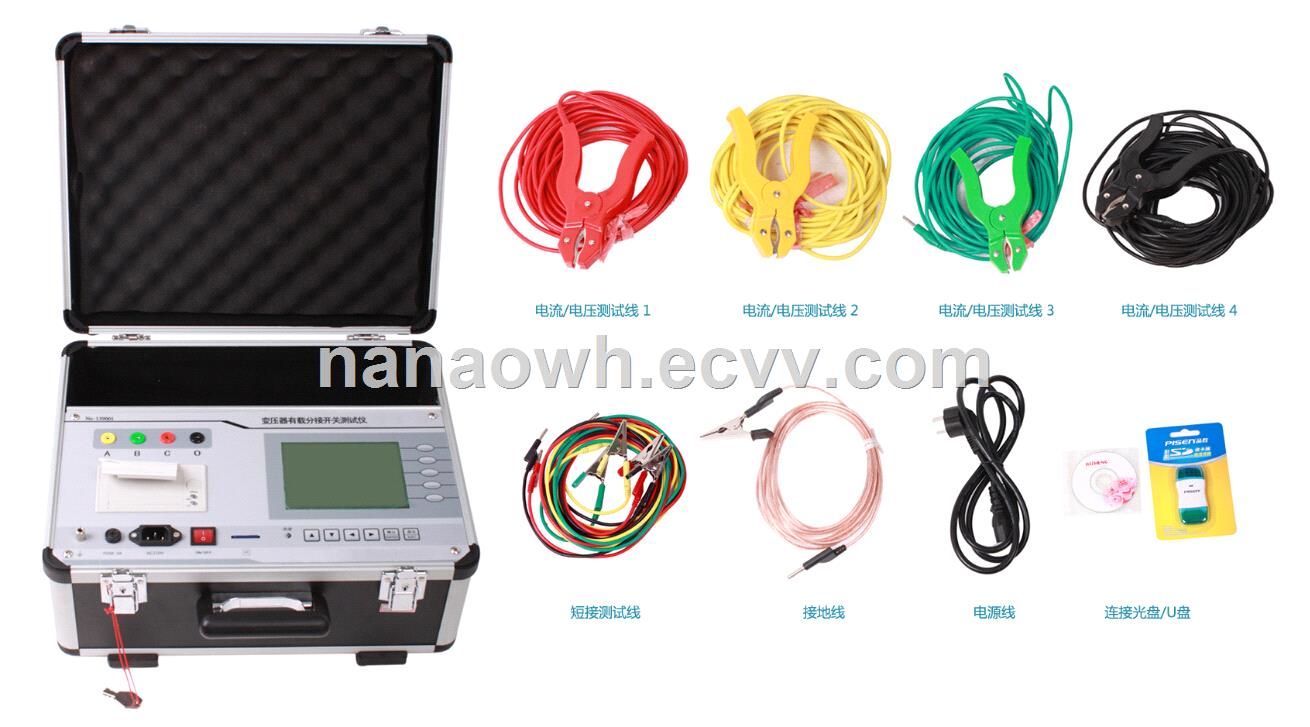

Transformer Windling Deformation Tester

Specifications

Parameters of the products
1, Scanning mode: (instrument with linear sweep frequency measurement and segmented sweep frequency measurement dual measurement system)
(1) Distribution of linear sweep
Sweep frequency measurement range: (1kHz) - (2MHz), 2000 sweep frequency points, resolution is 1kHz
(2) Segment sweep frequency measurement distribution
Sweep frequency measurement range: (0.5kHz) - (1MHz), 2000 sweep points;
(0.5kHz) - (10kHz), resolution is 0.02kHz
(10kHz) - (100kHz), resolution is 0.2kHz
(100kHz) - (500kHz), resolution is 1kHz
(500kHz) - (1000kHz), resolution is 1kHz
2, Other technical parameters:
(1) Amplitude Measurement Range: (-100dB) - (+20 dB)
(2) Amplitude Accuracy: 0.1dB
(3) Scanning Frequency accuracy: less than 0.01%
(4) Signal Input impedance: 1MΩ
(5) Signal output impedance: 50Ω
(6) Same phase repetitive rate: 99.5%
(7) Measuring Instruments Dimensions (LWH) 345X250X120 (mm)
(8) Instrument aluminum box dimensions (LWH) 425X335X215 (mm)
(9) Instrument Accessories aluminum box dimensions (LWH) 425X335X150 (mm)

Characteristics of the products
1, Collection control adopt high-speed , highly integrated microprocessor.
2 , Notebook with USB interface for communication between the instrument
laptops and USB interface for communication between instruments .
3, there is communication wireless blue-tooth interface between laptop computer and instruments .
4 , the hardware chipset adopt DDS dedicated digital high-speed sweeping technology ( USA ) , though the testing, can accurately diagnosed the winding distorted, drum kits, shift, tilt, deformation of inter-turn short circuit and phase to phase short circuit fault.
5 ,high resolution dB value measurement, dual-channel 16-bit A / D ( on-site test change the tap , means obvious output change ) .
6 , the signal output amplitude can be adjusted by software, the maximum amplitude peak ± 10V.
7 , the computer generates an electronic document testing results (Word)
8, choose precision, high stability components, to the same-phase repeated testing, the measurement repetition rate to 99.5%.
9, the finished circuit board ,with a special process on the surface, with water-proof and anti-harmful gas functions .
10 , the instrument has a linear frequency sweep measurements and segmented sweep measurement dual measurement system features two techniques compatible with the current domestic genre measurement mode
11 , the amplitude-frequency characteristics meet the national tester technical indicators standard. Abscissa ( frequency ) with linear and logarithmic indexing, so the printed curve can be linear pitch curve points, also can be a logarithmic curve, the user can choose according to actual needs .
12, automatic detection of data analysis system, horizontal comparison A, B, C three-phase windings similarity comparison, the results as follows: ①perfect consistency,②good consistency , ③ordinary  consistency, ④ poor consistency. Vertical comparison, A-A, B-B, C-C obtain the original data and the current data phase to phase winding deformation comparison between, the results as follows: ①normal winding deformation, ②mild winding deformation, ③moderate winding deformation, ④severe deformation deformation .
13 , automatically generated Word electronic documents, for saving and printing .
14 , the instrument fully meet the electricity standard DL/T911-2004 " power transformer winding deformation Frequency Response Analysis" technical conditions
