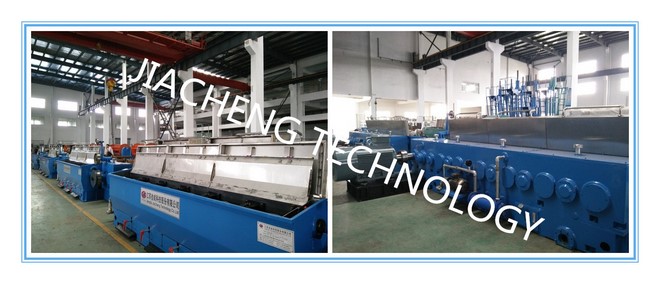

Brass Rod Breakdown Machine with Annealer
| FOB Price: | 100,000.00 - 220,000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set/Sets per Month |
| Shipping: | 90 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | PE FILM |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE and ISO9001:2008
- Dimension(L*W*H): 25000*4500*3820 mm
- Power(W): 132KW
- Voltage: 380V,50HZ or customized
- Model Number: JCJX-LHT400/7
- Brand Name: JIACHENG
- Outlet Diameter: 2.5-3.0mm
- Inlet Diameter: 5.2mm
- Condition: New
Specifications
1-Simple description:
1). Ironed cast
2). Special gear ratio which is suitable for brass wire
3).
Brass wire type: H63,H65,H68,H60 etc
4). Shaving dies system before drawing
2-Main spec
|
Machine Type |
JCJX—LHT400/7 |
|
Max.Die No |
7 |
|
Inlet wire dia |
Φ5.2mm |
|
Outlet wire dia |
Φ2.5-Φ3.0mm |
|
Max.Speed |
500m/min |
|
Capstan dia |
400mm |
|
Main motor |
132kw (AC) |
|
Take up motor |
15/18.5kw |
|
Annealing part (optional) |
Horizontal type |
|
Max.annealing voltage |
85V(AC) |
|
Max.annealing current |
3500A(AC) |
|
Take-up type (optional) |
1-Coiler 2-Single bobbin take-up |
-Advantage:
1) Horizontal structure with shaving die system can ensure the good surface
2) The capstan is coated with tungsten carbide power, which can keep long life
3) High precision gear is producing by Germany gear grinding machine, high efficiency, low noise.
4) AC annealing has longer length for annealing. Especially good for brass wire.
5) Driving by AC motor, the imported PLC and touch screen (SIMENS or other famous brand),
which is convenient for the operator to set and display the parameter on the touch screen.
5-Service
5-1. Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
5-2. Guarantees
Since the shipment date, 12 months (exclude spare parts)
