Dongguan ASD New Materials Co., Ltd.
China Manufacturer with main products: ESD IXPE Foam, ESD EVA Foam Sheet, PU Spongy, PP Hollow Sheet, Foam Tray/Box |

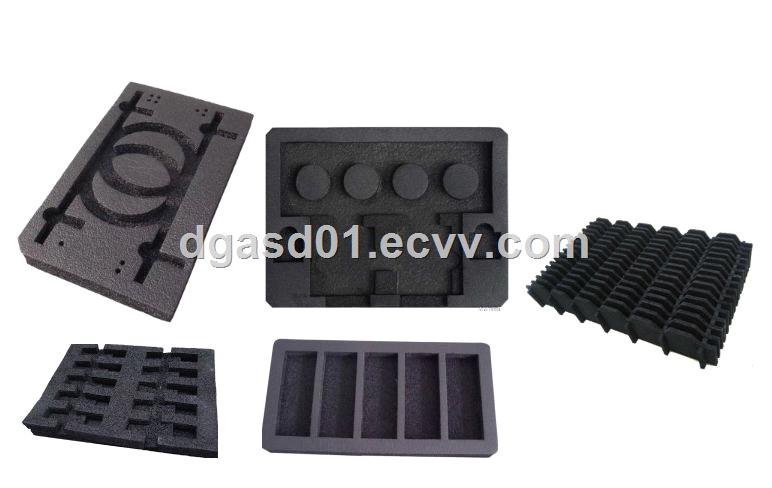

Anti-Static IXPE/EVA Corrugated Accessories /ESD Protection Foam Tray
| Shipping: | 15-30 days |
|---|---|
| Payment Terms: | T/T |
| Packaging Details: | OEM |
|---|
Quick Details
- Model Number: ASD006
- Brand Name: ASD
- Custom Order: Accept
Specifications
Basic Information:
Material: Polyethylene/PE
Usage: package, storage, transport
Plastic Properties After Heated: Thermoplastic Plastics
Plastic Forming Method: Extrusion
Color: Black or customized
Size: Customized
Density: 30-80 Kg/M3
Features: Anti Static, Waterproof, Shock Absorption
Product Description
IXPE/EVA electrostatic discharge foam tray is produced by compounding PE with some special padding and foaming material, then cross linked by foaming. The conductivity IXPE foam is a hi-tech ESD product which has very good anti-static property and widely to electric elements, power sources, integrated circuit, printed circuit board, optoelectronic devices communications, military products and other electronic products' package, storage and transportation because it will protect these sensitive components and goods from damage.
Features:
1. Stable and long term anti-static property:
Surface resistivity of conductive type (CVP): 103~106 Ω
Surface resistivity of dissipation type (CVP): 106~109 Ω
2. Shockproof and shock resistant,
3. Non-toxic, tasteless,
4. Waterproof and corrosion-resistant,
5. Temperature and humidity resistant, large load ability,
|
Technical Index: |
|
||
|
NO |
Items |
data |
|
|
CE Series(conductive) |
DE Series(Dissipative) |
||
|
1 |
Color |
Black, |
|
|
2 |
Density |
30-80kg/m3 |
|
|
3 |
surface Resistivity |
10 3-6 Ω /sq |
10 6-9 Ω /sq |
|
4 |
Volume Resistivity |
10 3-6 Ωcm |
10 6-9 Ωcm |
|
5 |
Abrasive Potential |
<100V |
|
|
6 |
Attenuation Half-time |
<1.0s |
|
|
7 |
Tearing strength |
>1.2N/mm |
|
|
8 |
Elongation |
>150% |
|
|
9 |
Tensile strength |
>0.5MPa |
|
Advantages
1. Light weight and high tensile strength
2. Non-toxic, Free of smell, Hygienic and suitable for food contact
3. Waterproof, Low water absorption
4. Heat resistance, thanks to it's multi-wall structure, it can durable between -30°C, +90°C.
5. Chemical resistance, modified UV protective and become more resistant to sunlight
if needed.
6. Suitable for cutting and bending, folding, it can be easily converted into reusable
divides, box etc.
7. PP is hydrocarbon, there's no toxic when burns, suitable for recycle and conform to
environmental perseverance.
