Small Prototypes Pick and Place Robert NeoDen4(TM4120V) with cameras

FOB Price:	7,499.00 - 8,039.00 USD/Set
Supply Ability:	300 Set/Sets per Month
Shipping:	7-10 working days for preparing
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	947460cm

Quick Details

Model Number: TM4120V(With internal Rails)
Brand Name: NeoDen Tech
Skype: tonny-neoden
Color: Black+Silver
0201/BGA/QFN/Led/Ics: OK
Factory/Manufacturer: Yes

Specifications

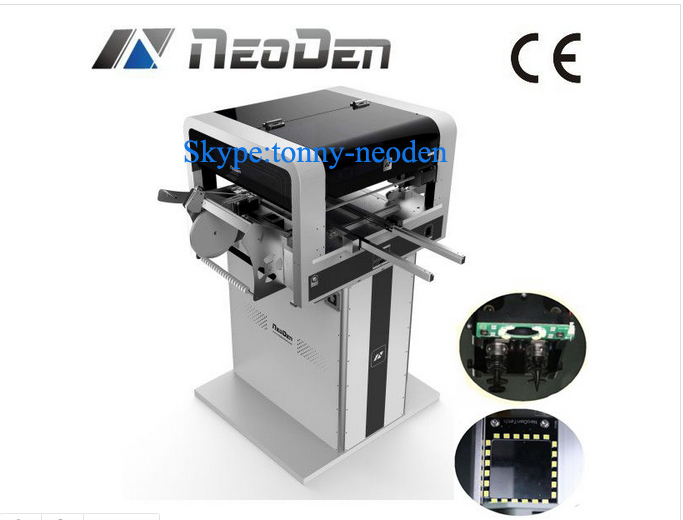

NeoDen4 is with dual cameras, auto rails, auto electronic feeders and 4 placement heads, which could help to handle 0201,

BGA, QFN and 0.8m/1.2m/1.5m LED strip. NeoDen4 is the best choice to satisfy all demands of high precision, high capacity, stable performance and low cost. This is a huge breakthrough not only for NeoDen,but also for small and medium-sized enterprises, those who want to improve placement accuracy and speed up PCB assembly with a limited budget.

Parameters:

Number of Heads with Vision enabled:4

Placement Rate:10000CPH (vision off),5000CPH (vision on)

Feeder Capacity:Tape Reel Feeders:48

Tape width: 8mm, 12mm, 16mm,24mm

Vibration Feeders:5

IC Tray Capacity:5

Component sizes with vision:Smallest Component size:0201 Largest Component size:TQFP240

Applicable Components:0201,BGA,SOIC,SSOP,QFN,TQFP,Led Component,Diode,Triode,Tack Switch

Component Height Maximum:5mm

Resolution X/Y axis:0.01mm Z axis:0.1mm

Rotation:+/-180(360)

Positioning Accuracy:+/-0.02mm

X-Y repeatability:+/-0.02mm

Applicable PCB area:310mm*1500mm

Placement Area:310*1500mm(without waffle Tray) 140*1500mm(With 1 waffle Tray)

Programming:SOFTWARE AUTOMATIC PROGRAMMING/MANUAL MECHANICAL PROGRAMMING

Main Control:GUI

Power Supply:220V, 50Hz (convertible to 110V)

Power:180W

External Dimensions:Machine:87*68*48CM

Packing size:94*74*60CM

Net Weight:60KGS

Gross weight:80Kgs

Main Features

1. Dual vision system (up-looking and down-looking camers), identify and calibrate the different components at one

time, improves the accuracy of placement from 0201 to BGA;
2. Auto rails, help to achieve continuous placement and solve the problem of long LED bar, ex. 1.2m LED strip;
3. Automatic electric feeders, reduce the feeding deviation;
4. General conveyor is supported, so a SMT production line can be setup, which is more time-saving and labor-saving
5. Four placement heads can pick up and calibrate components at one time.
6. The device supports remote system upgrade, NeoDen provides a life long system upgrade service for free to you;

Certifications:

Established in 2010, NeoDen Technology Co.,Ltd., is a high-tech corporation located in Hangzhou, China. Our primary products are desktop automatic pick and place machines. In China, we are the leader in this technology with CE and more than 30 patents registered.

Highlights:

·Supports remote system upgrade, NeoDen will provide a lifelong technical service and system upgrade
Lightweight body and stable quality suit for customers who want to start small medium production, lab research and prototyping

Why Choose NeoDen:

1.Light weight body,occupy small area

2.User friendly interface,no need professional SMT engineer,entry-level device

3.High integrated,no need extra pump or any supporting facility

4.High accuracy and reliability,make up the defection of manual work

5.Low cost,reduce expense to own a professional automatic SMT production line

6.International express with door to door service,3-5 working days delivery

7.Especial for laboratory research and development,samples,to avoid any patents and designs revealment

Accessories:

1) Pick and Place Machine NeoDen4: 1

2) Nozzle: Totally 10 (XN07=3,XN14=3,XN40=2,XN22=2)

3) 8G Flash Drive: 1

4) Power Cord(5M): 1

5) Video training course: 1

6) Double Sided Adhesive Tape: 2

7)Allen wrench Set:5

8)Tool Box:1

9)Reel holder stand:1

10)Vibration Feeder:1

11)Rail Extension Parts:4

12)User Manual:1

Warranty:

The complete machine has a warranty period of TWO year from the time of purchase and lifelong service support as well as a long-term factory price supply. We provide online Q/A and trouble shooting support and technical advice service.

Thank you very much for your support on Neoden Tech's machines.

Tonny from NeoDen Tech will always provide service/support.
